F a s t l a n e S w i m U n i t I n s t a l l a t i o n
®
9.3 This next step is best done with two people. Carefully lower the Fastlane into the pool. Align the holes
in the bracket with the holes in the hose cover tray. Use the provided 1/2" (12,7mm) screws to attach the
top screws first and then the vertical screws next (total of 8 screws) (Fig 9.2).
D

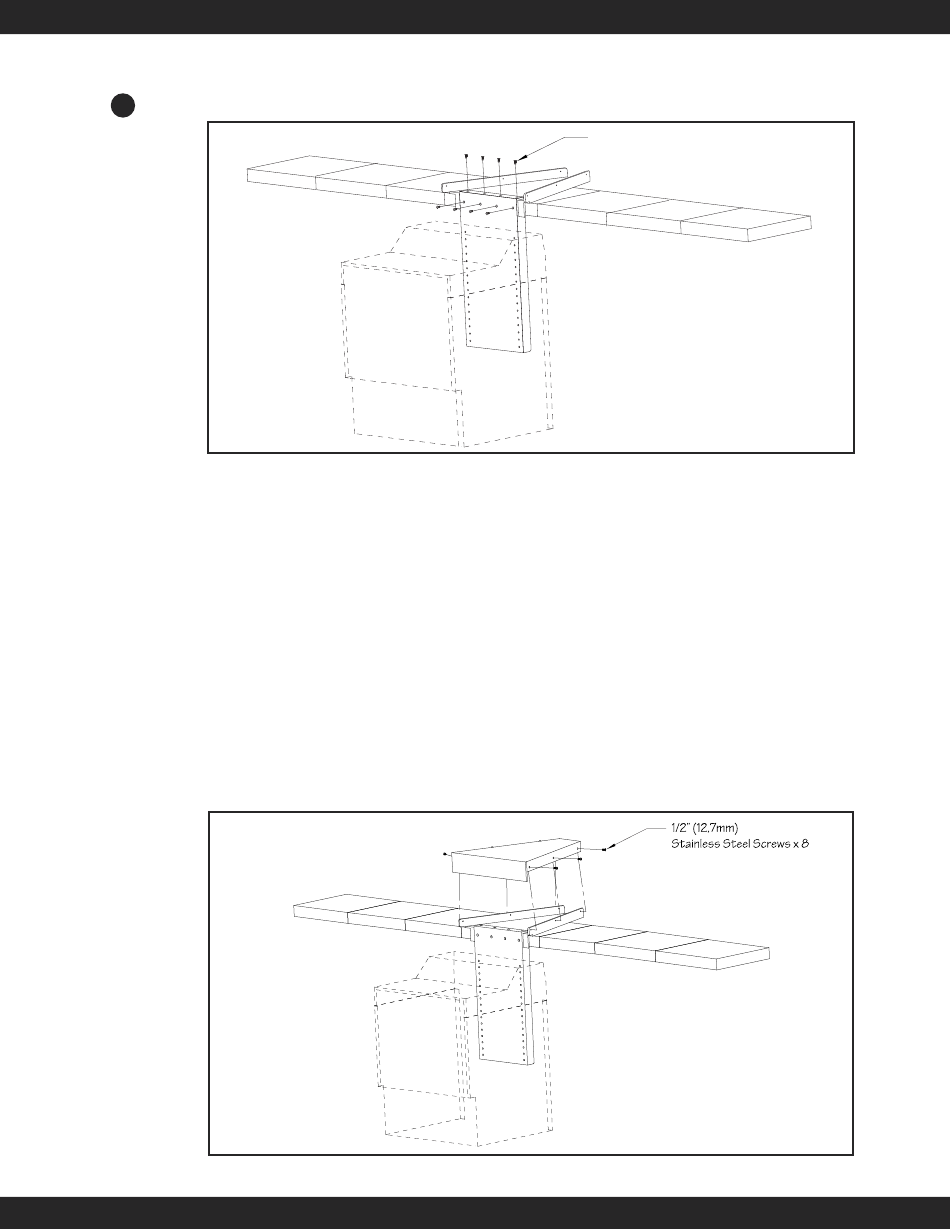

Fig. 9.2
9.4 Run the hydraulic hoses up and out of the pool and into the hose cover tray. Place the hoses under the
hose clip that was previously secured to the tray. Pull any excess hose out of the pool and out of the
tray. Once the hoses are in the hose clip, tighten the hose clip screw.
9.5 Secure the stainless steel bond wire (that exits the top of the Fastlane) to the bond lug attached to the
hose cover tray. Attach a #8 AWG bare copper wire to the bonding lug (attached to the hose cover tray)
and then incorporate that wire into the pool's bonding grid.
9.6 Place the Fastlane lid onto the top of the Fastlane and use the six 3/4" (19mm) stainless steel screws
that were provided (3 on each side) (See Fig 6.12).
9.7 Place the hose cover onto the hose tray and use the provided 1/2" (12,7mm) stainless steel screws to
attach the cover to the tray (Fig 9.3).
9.8 If the distance between the Fastlane and Power Unit is 25' (7,6m) or less, then the hoses attached to the
Fastlane will connect directly to the Power Unit (see section 12). If the distance between the Fastlane
and Power Unit is greater than 25' (7,6m), then additional run hoses will be required. Use the adapters
provided with the hydraulic run hose to connect the hoses attached to the Fastlane and the additional
run hose.
Fig. 9.3
1 9
1/2'' (12,7mm) Machine Screws x 8
