Section 9 DECK MOUNT FASTLANE INSTALLATION

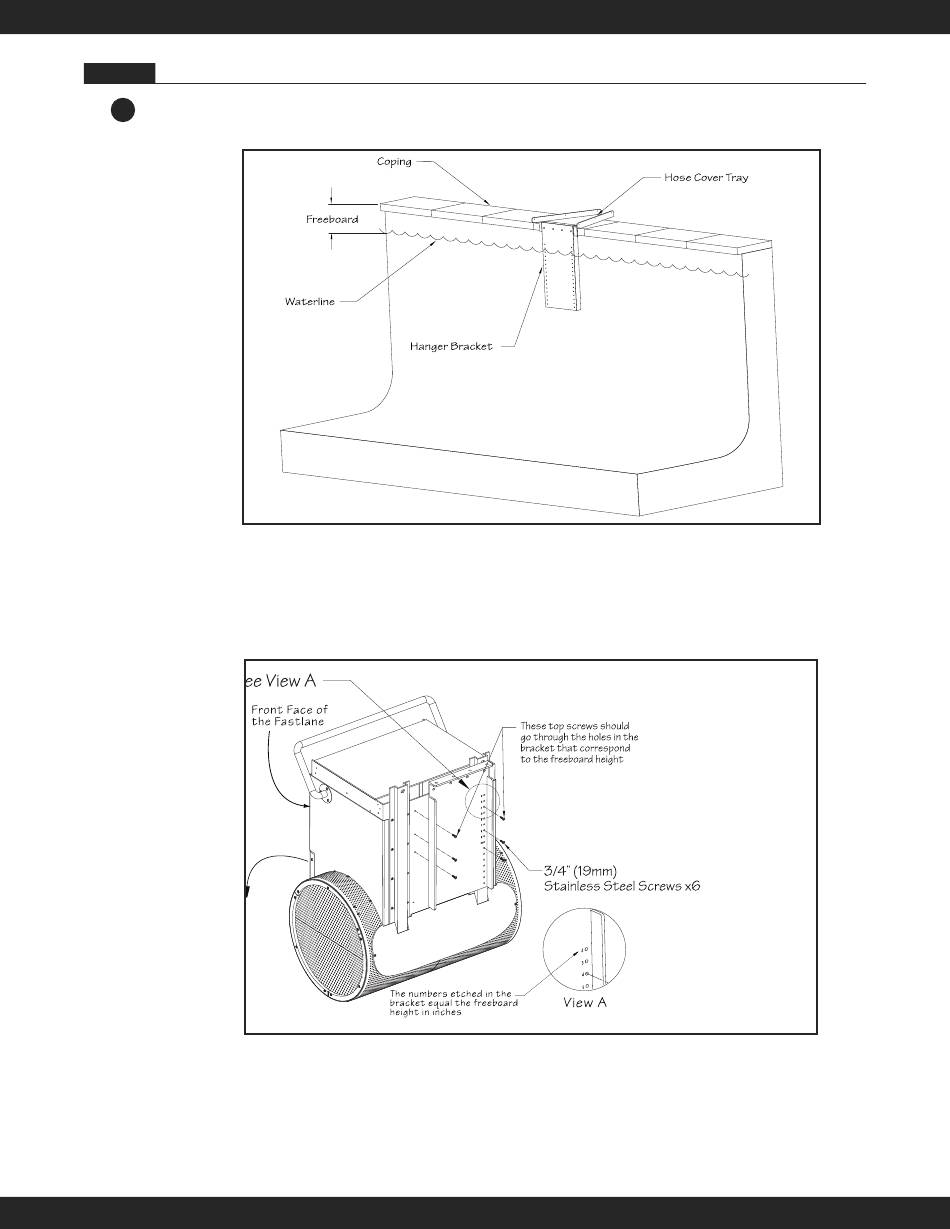

9.1 Loosely secure the hanger bracket to the hose cover tray with one of the provided 1/2" (12,7mm) stain-
less steel screws. Measure down from the top of the hanger bracket to the water line (this measurement
D
is called freeboard). Once the measurement has been taken, remove the hanger bracket from the tray.
Fig. 9.1
9.2 Carefully lay the assembled Fastlane down on its front face. There are six pre-drilled holes in the center
of the top housing (between the protective hat channels). Align the top set of holes in the rear of the
housing with appropriate number hole in the hanger bracket (if the freeboard is 6" (15,2cm) then align
the #6 holes with the top holes in the housing). When the hanger bracket is positioned on the housing,
use the provided 3/4" (19mm) screws to attach.
Fig. 9.1
