Section 7 INSTALLATION OF YOUR WALL MOUNT FASTLANE

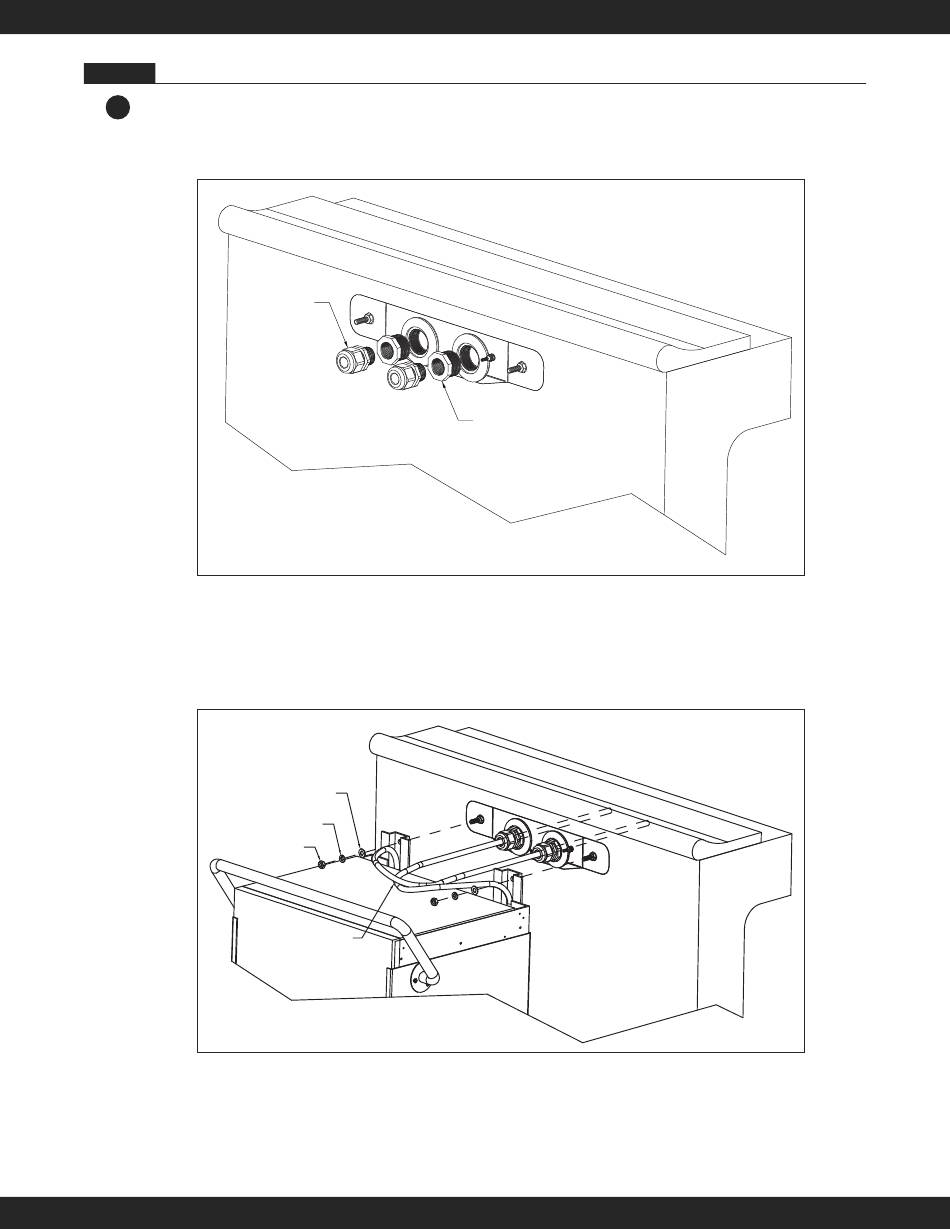

Fill the pool up to operating level, which should be approximately 1-1/2" (38mm) below the mounting rods.
Apply Teflon sealant to the threads of each 1-1/2" (38mm) MPT x 1" (25mm) FPT bushing reducer and
W
thread them into the thru-wall fittings. Then apply Teflon thread sealant to the threads of the liquid tight
fittings and thread them into the bushing reducers.
1" Liquid Tight
Fitting
Fig 7.1
Using two people, carefully lower the Fastlane into the pool. Align the holes in the protective hat channels
with the mounting rods and rest the Fastlane into place. The Fastlane will hang from these rods. Place the
3/8" (9,5mm) flat washer, lock washer, and nut onto each mounting rod and secure.
Insert the hoses into the conduits. The hoses should cross over themselves prior to inserting into the conduit
(i.e. the left hose will be inserted into the right conduit).
3/8" (9,5mm)Nut
Hydraulic Hose should cross
over themselves prior to inserting
into the conduit
Fig 7.1
If a junction box is being employed, then attach the 3/8" (9,5mm)hose from the Fastlane to the 1/2"
(12,7mm) run hose from the hydraulic power unit. The adapters to connect these two different size hoses
will be found with the 1/2" (12,7mm) run hose. If there is no junction box, then attach the 3/8" (9,5mm)
hose from the Fastlane directly to the hydraulic power unit. The adapters for this connection can be found
in the accessories kit.
3/8" (9,5mm)
Washer
3/8" (9,5mm)
Lock Washer
