Videx 4534 Installation Instructions Manual

4000 Series
Art. 4534

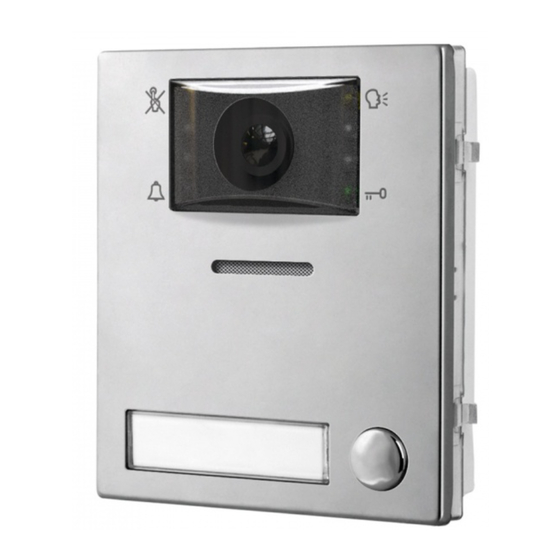

Speaker unit with built-in camera for IPure system
Art. 4534X
A
B
C
D

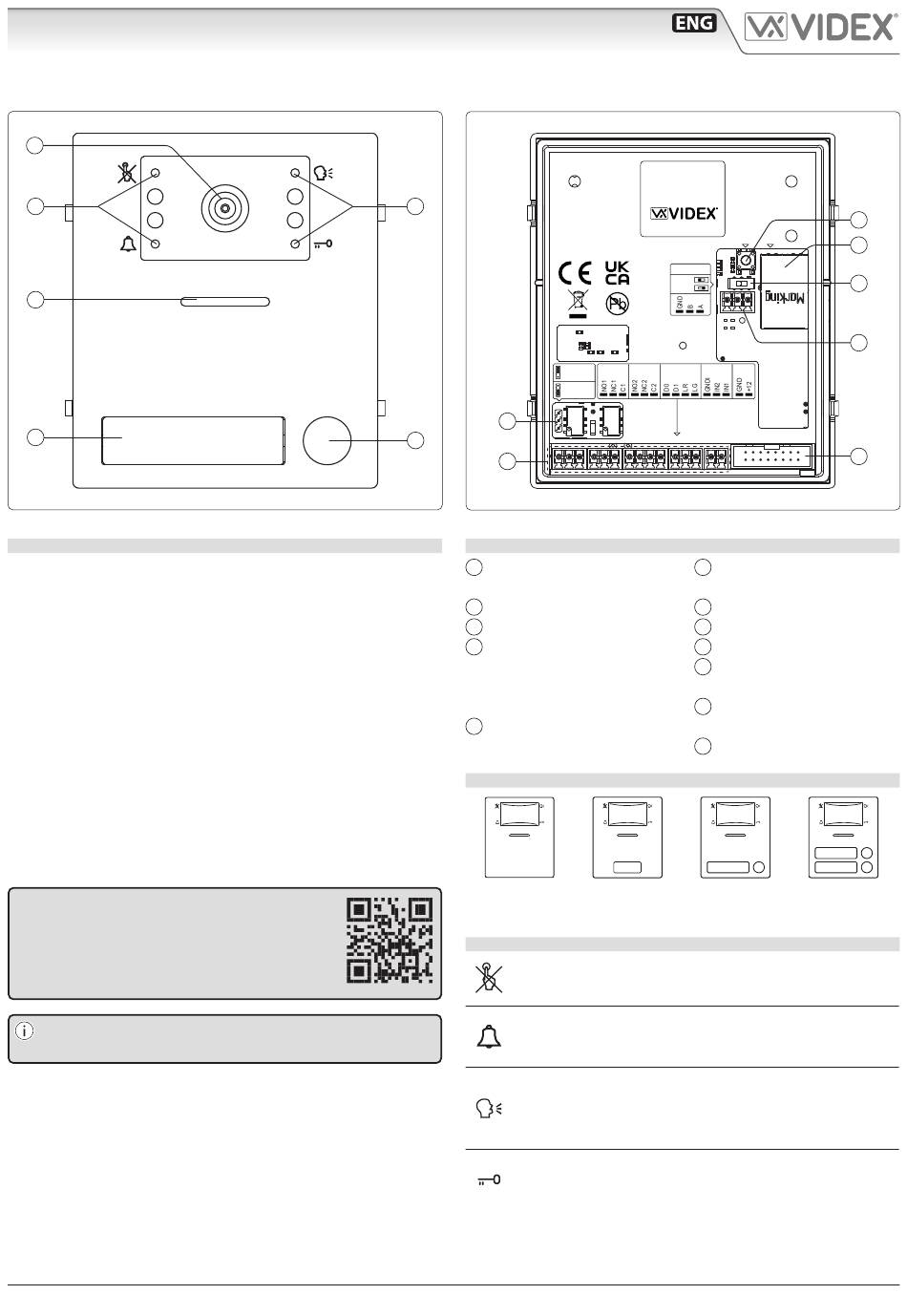

Fig. 1 Front
DESCRIPTION
Speaker unit module for IPure system with built-in Wide Angle
colour camera with white light illumination LEDs. Depending
on the speaker unit version it can include zero, one or two call
push buttons.
Art. 4534X versions are also equiped with a built-in proximity
key reader.
Hardware features:
• The transmitting amplifier and microphone.
• The receiving amplifier.
• Two relay outputs to enable electric lock and an additional
service (3 contacts each: common, normally open and nor-
mally closed).
• The call buttons from 0 to a maximum of 2 depending on the
module version.
• The illumination LEDs for the card name holder.
• The camera and illumination LEDs.
To download the programming software
Videx IPure Wizard and obtain the latest
firmware and manuals please visit the follow-
ing website and register
https://service.videx.it/
The informations contained in this manual are valid
for devices with software version 1.4.0 and later.
Art. 4534 - 4534X - Installation instructions
Speaker unit with built-in camera & proximity key reader for IPure system
B
Capacitor
discharge
Dry contact
output
M
E
N
Fig. 2 Back
LEGEND
Camera with illumination
A
LEDs
Operation LEDs
B
Loudspeaker
C
Card name holder with
D
built-in proximity key
reader (only Art. 4534X
versions)
Call push button
E
AVAILABLE VERSIONS
Art. 4534-0 Art. 4534X-0
LEDS
Flashes when the called indoor station is busy.
The LED will be off when the system is in stand-by.
If illuminated, indicates that the call from the outdoor sta-
tion is in progress. The LED will switch OFF when the call is
answered or the call ends due to timeout.
If illuminated, indicates that it is possible to speak be-
cause the call has been answered. The LED will switch
OFF at the end of a conversation (or at the end of the
conversation time).
If illuminated, indicates that the door lock has been op-
erated. It will switch OFF at the end of the programmed
"door opening" time.
- 1 -
4534X
Audio/video speaker unit
for IPure system
Made in Italy
PROG. RJ45
RS-485
OPEN
CLOSE
RELAY 1 RELAY 2 WIEGAND INPUTS POWER
EXPANSION BUTTONS
Boot loader push button
F
for firmware update
POE Ethernet interface
G
RS485 termination switch
H
RS485 connection terminals
I
Button expansion
L
modules connector
Door open relay operating
M
mode jumper
Connection terminals
N
1
Art. 4534-1
Art. 4534X-1
66252030 - V 1.5 - 31/05/23
F
G
H
I
L
2
1
Art. 4534-2
Art. 4534X-2
