Videx 4514 Manual

4000 Series Vandal Resistant Range
Art. 4514
Audio/video digital front panel for IPure system
Art. 4514V

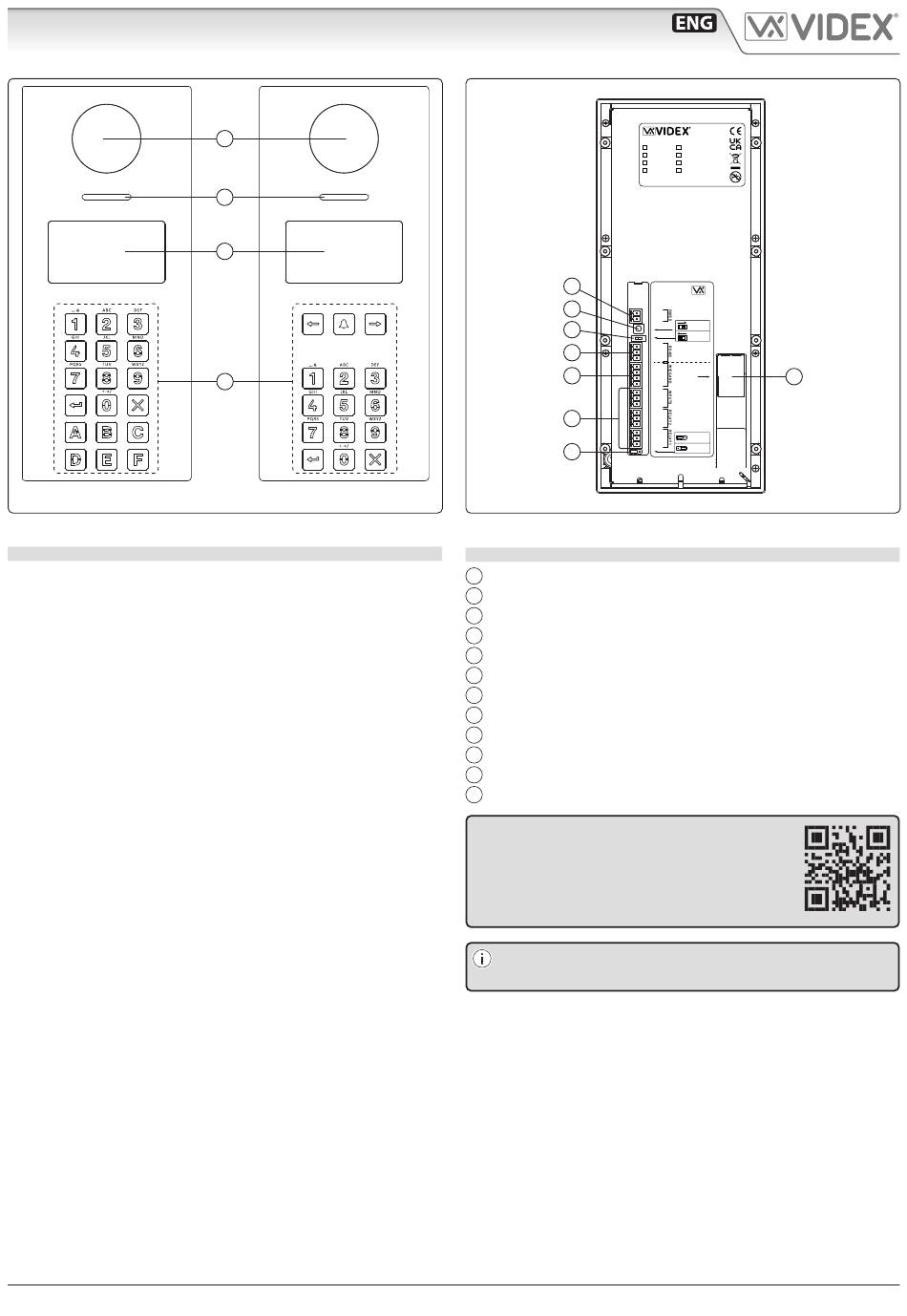

Fig. 1 Front
DESCRIPTION
ART. 4514V, ART. 4514V/F
4000 Series Vandal resistant (front plate in brushed stainless with
2mm thickness) digital call panel for IPure system. This panel is
compatible with the 4000 Series modular system and has the size
of two 4000 Series modules.
Complementing all digital door panels manufactured by Videx is
the ability for all users to have their own unique access code (each
apartment can have more than one access code). The access code
can have up to six digits and is blind to onlookers. Also,integrated
into the panel is a proximity reader enabling a number of proxim-
ity fobs to be stored and used individually or in combination with
the access code to enter the building. In addition to the speaker
unit functions, the panel includes a 128 x 64 pixel graphical LCD
display with blue back light (to provide text and graphical mes-
sages guiding a visitor through the panel operation) plus a keypad
with 18 blue back lit buttons 6 of which are alpha buttons (A..F),
10 are numeric buttons (0..9) plus ENTER and CLEAR buttons. The
tenants can be called by dialling the relevant apartment code.
To complement the visual messages provided from the display,
the panel has the voice annunciation facility to supply audio
messages concerning the system operation. The built-in camera
is a colour CMOS wide angle camera with white light illumination
LED's (the wide angle camera provides a viewing angle of 170 degrees). Interfaces include a Wiegand output (for systems based on this
interface, not implemented yet) a RS-485 interface for future use.
The memory capacity allows to store up to 10000 users data, up to 10000 access codes, up to 10000 proximity keys. The front panel
finish is brushed stainless steel while the frame finishes are the standard offered in the 4000 Series.
ART. 4514RV, ART. 4514RV/F
As Art. 4514V but using a keypad with 15 blue back lit buttons 3 of which are navigation buttons used for the repertory name facility,
10 are numeric buttons (0..9) plus ENTER and CLEAR buttons. The tenants can be called by dialling the relevant apartment number or
by searching the relevant name using the repertory name function.
Art. 4514 - Installation instructions
A
B
C
D
Art. 4514RV
E
F
G
H
I
L
M
Fig. 2 Back
LEGEND
Camera and illumination LEDs
A
Loudspeaker
B
Display
C
Keypad
D
Power supply connection terminals
E
Boot loader push button for firmware update
F
RS485 bus termination switch
G
RS485 bus connection terminals
H
Wiegand connection terminals (not implemented yet)
I
System connection terminals
L
Door open relay operating mode jumper
M
POE Ethernet interface
N
To download the programming software
Videx IPure Wizard and obtain the latest
firmware and manuals please visit the follow-
ing website and register
https://service.videx.it
The informations contained in this manual are valid
for devices with software version 1.2.0 and later.
- 1 -
Made in Italy
Digital call panel for IPure system
4514V 4514RV
4514V/UK 4514RV/UK
4514V/F 4514RV/F
4514V/NFP 4514RV/NFP
Made in Italy
RS485
GND
BUS TERMINATION
+12V
OPEN
PROG.
CLOSE
GND
B
TAGLIARE QUI
A
D0
N
D1
ETICHETTA 1 LAN
LR
LG
GNDI
IN2
IN1
NO2
NC2
C2
NO1
Dry contact
NC1 output
C1
Capacitor
discharge
66251775 - V1.6 - 31/07/23
