4000 Series
Art. 4850/P

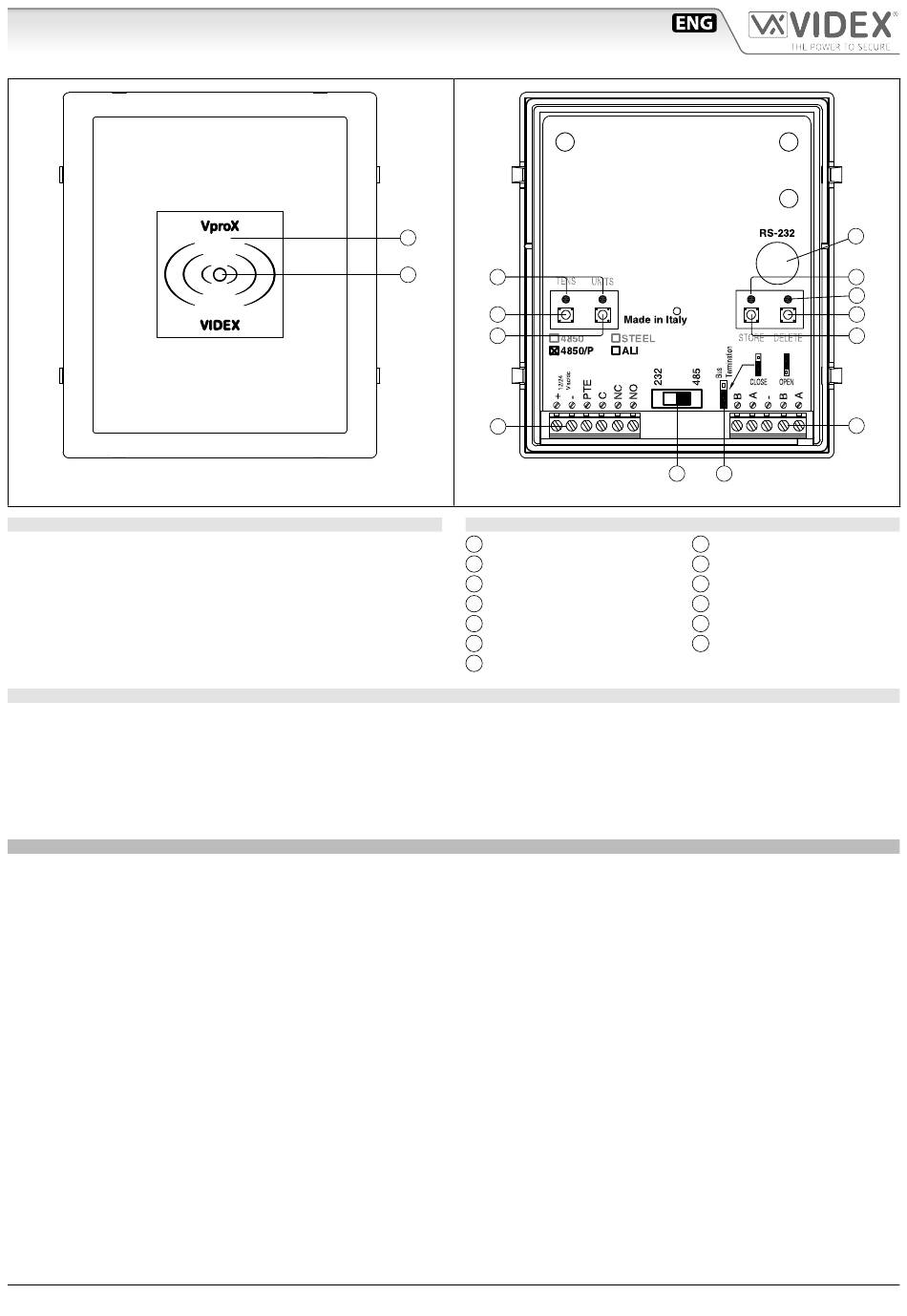

Fig. 1 Front
DESCRIPTION

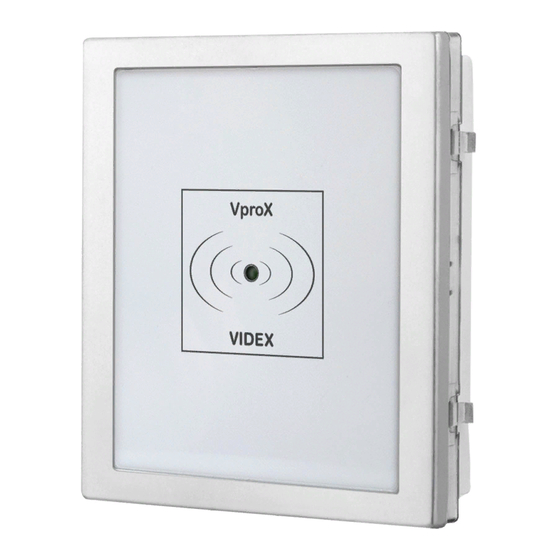

The unit is housed in a 4000 series module, has a built in door
open relay and can control up to 999 proximity keys. With the
addition of a 12Vac/dc power supply a surface or flush mount-
ing support and electric door release the unit provides a com-
plete access control system.
OPERATION
• The user offers the key (fob or card format) close to the reader
• If the key has been programmed, the unit will emit a beep, the status LED will change from yellow to green for about one second
and the built in relay will energise.
• If the key has not been programmed, the unit will emit a beep, the status LED will change from yellow to red for about one sec-
ond and the key will be ignored. After 5 attempts to use a non programmed key, the led will change to red flashing for about 60
seconds: during this time the unit will not accept any keys.
PROGRAMMING
Programming can be carried out by PC or by the 4 buttons located on the back of the module, LEDs and acoustic signals are provided to
assist with the programming. Programming carried out by the buttons on the module are limited to codes from 1 to 99. In stand-
by the buttons are locked, these must be unlocked by entering the unlock sequence before any programming can be undertaken.
Art. 4850/P
- Installation instructions
Stand-alone module proximity keys reader
A
B
C
D
E
O
Fig. 2 Back
LEGEND
Reading area
A
Status LED
B
Yellow LEDs
C
Tens button
D
Units button
E
Green LED
F
Red LED
G
- 1 -
M
N
Delete button
H
Store button
I
RS-232 jack connector
L
RS-485/RS-232 switch
M
Bus terminals jumper
N
Connection terminals
O
66250405 - V2.0 - 30/04/18
L
F
G
H
I
O
