4000 Series
Art. 4850
Stand-alone proximity reader

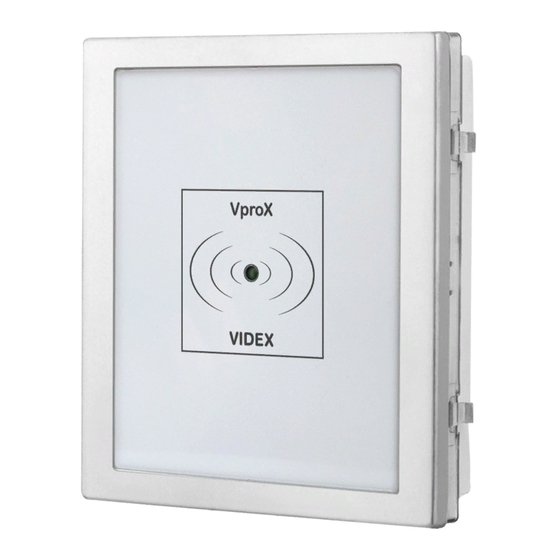

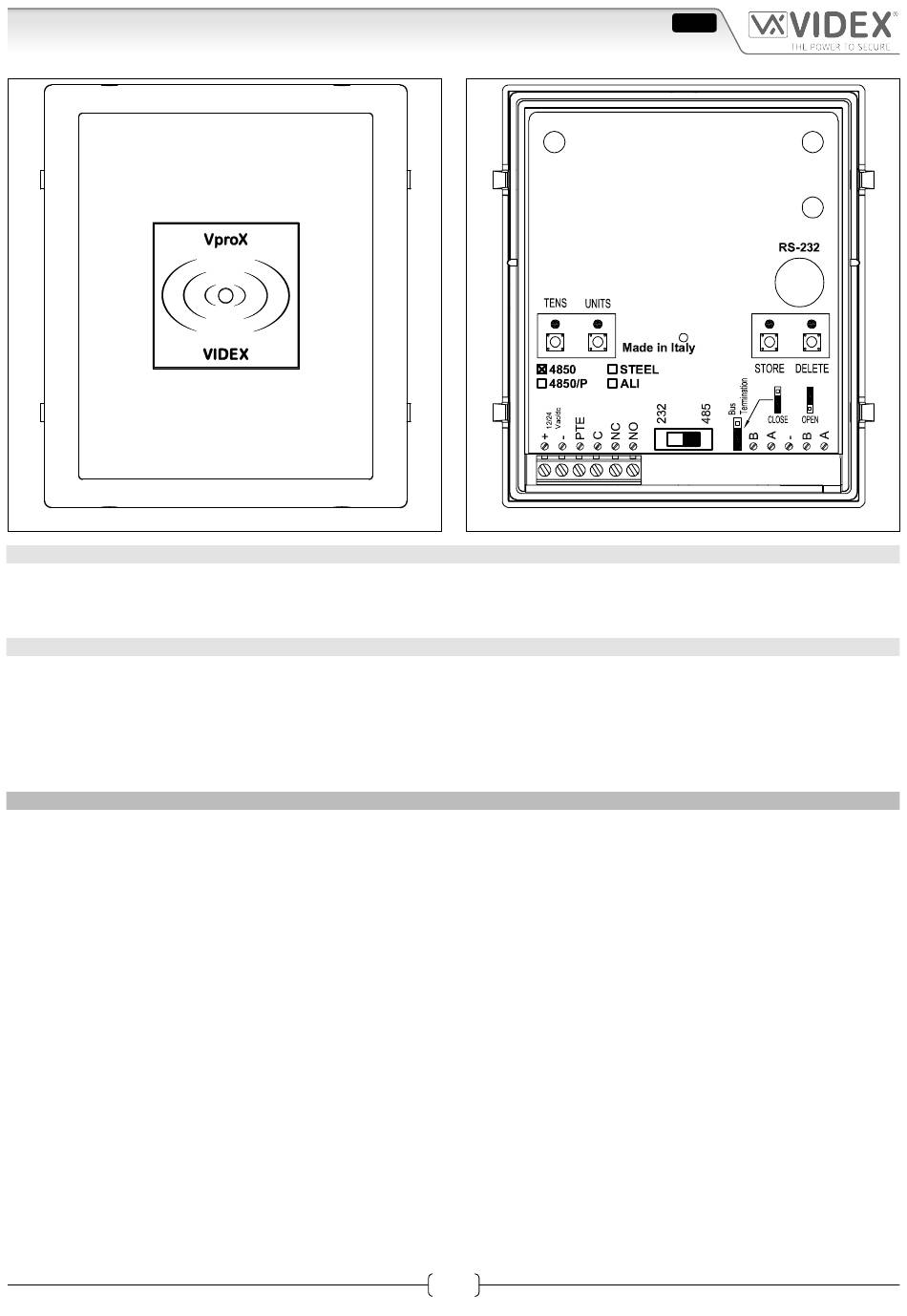

Fig. 1
DESCRIPTION
The unit is housed in a 4000 Series module, has a built in door open relay and can control up to 99 proximity keys. With the addi-
tion of a 12Vac/dc power supply a surface or flush mounting support and electric door release the unit provides a complete access
control system.
OPERATION
The user offers the key(fob or card format) close to the reader
If the key has been programmed, the unit will emit a beep, the LED will change from yellow to green for about one second and the
built in relay will energise.
If the key has not been programmed, the unit will emit a beep, the LED will change from yellow to red for about one second and the
key will be ignored. After 5 attempts to use a non programmed key, the led will change to red flashing for about 60 seconds: during
this time the unit will not accept any keys.
PROGRAMMING
Programming is carried out by the 4 buttons located on the back of the module, LEDs and acoustic signals are provided to assist
with the programming. In "stand-by" the buttons are locked, these must be unlocked by entering the unlock sequence before any
programming can be undertaken.
Art. 4850 - Installation instructions
Fig. 2
1
ENG
66250400 - V1.3 - 30/09/17
