Videx 4000 Series Manual

4000 Series
Art. 4533

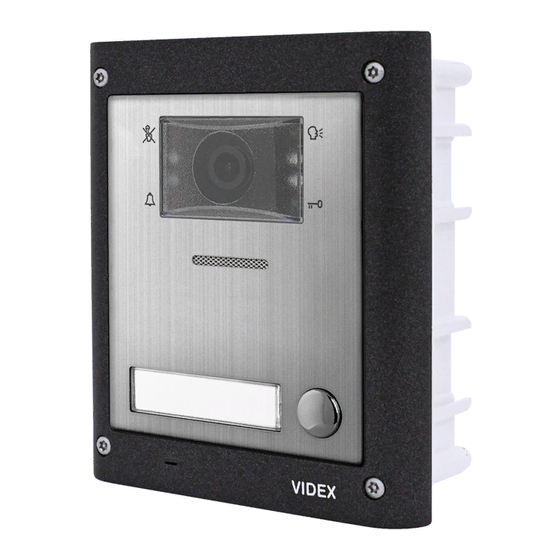

Speaker unit with built-in camera
Art. 4533X
A
B
C
D

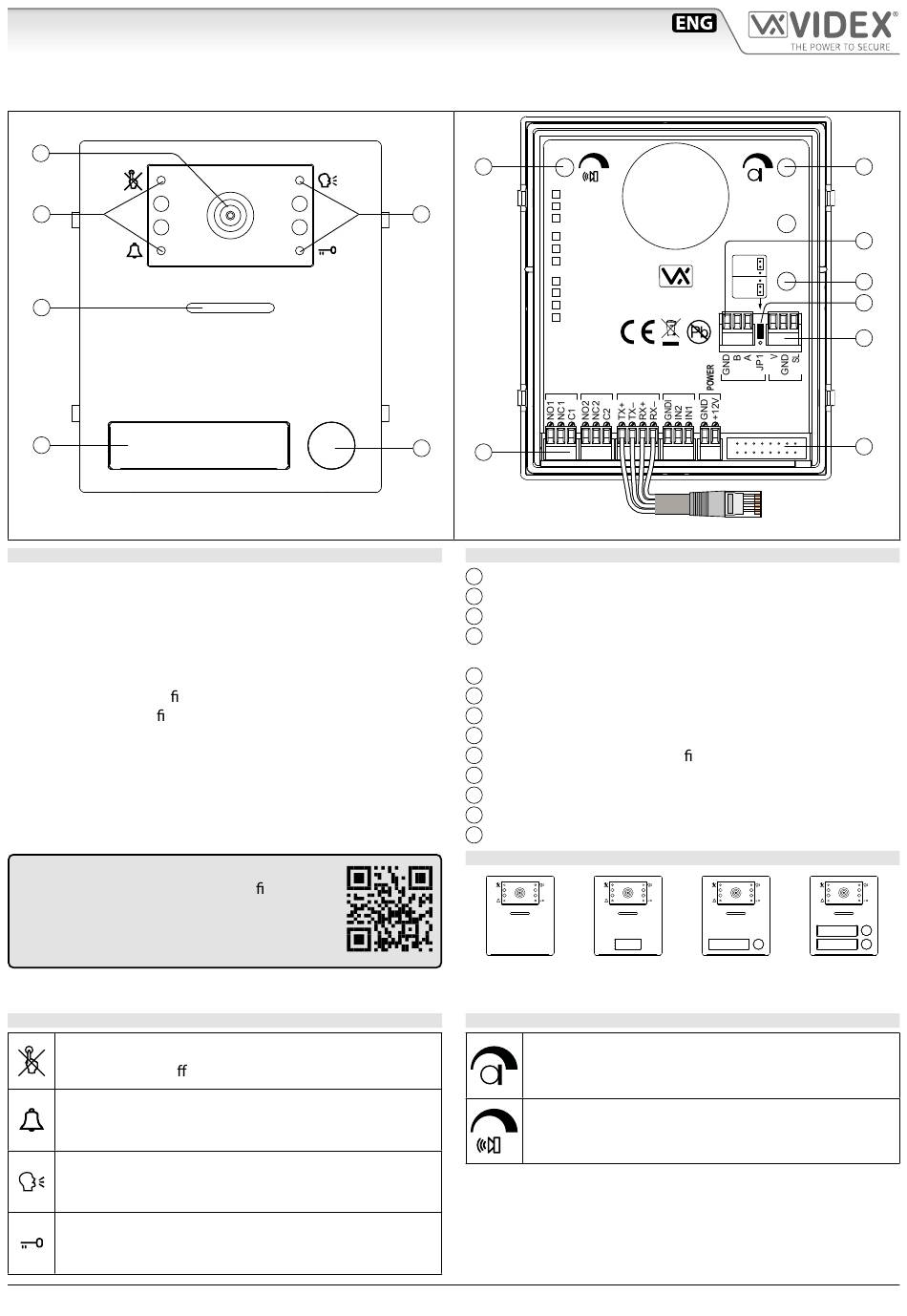

Fig. 1 Front
DESCRIPTION
Speaker unit module for IP systemwith built-in wide colour camera
with autoiris lens and white light illumination LEDs. Depending on
the speaker unit version it includes zero, one or two call push buttons.
Art. 4533X versions are also equiped with a built-in proximity
key reader and programming modes.
The unit circuitry incorporates:
• The transmitting ampli er with microphone and volume control;
• The receiving ampli er with volume control;
• Two enslavement relay to enable electric lock and an additional ser-
vice (3 contacts each: common, normally open and normally closed).
• The call buttons from 0 to a maximum of 2 depending on the
module version;
• The illumination LEDs for the card name holder;
• The camera comprised of illumination LEDs.
To download the programming software
VX IP Wizard and obtain the latest rmware
and manuals please visit the following web-
site and register
https://service.videx.it/
LEDS
Flashes when the called indoor station is busy.
The LED will be o when the system is in stand-by.
If illuminated, indicates that the call from the outdoor sta-
tion is in progress. The LED will switch OFF when the call
is answered or expired the call time without any answer.
If illuminated, indicates that it is possible to speak because
the call has been answered. The LED will switch OFF at the
end of a conversation (or at the end of the conversation time).
If illuminated, indicates that the door lock has been op-
erated. It will switch OFF at the end of the programmed
"door opening" time.
Art. 4533 - 4533X - Installation instructions
Speaker unit with built-in camera & proximity key readeri
F
4533-0
4533-1
B
4533-2
4533X-0
4533X-1
4533X-2
STEEL
ALI
HIGH BRASS
MATTE
RELAY 1 RELAY 2
E
O
Fig. 2 Back
LEGEND
Camera with illumination LEDs
A
Operation LEDs
B
Loudspeaker
C
Card name holder with built in-in proximity key reader
D
(only Art. 4533X versions)
Call push button (0, 1 or 2 depending on the model)
E
Loudspeaker volume
F
Microphone volume control
G
RS485 connection terminals
H
Boot loader push button for rmware update
I
RS485 termination jumper
L
External camera connection terminals
M
Button expansion modules connector
N
System connection terminals
O
AVAILABLE VERSIONS
Art. 4533-0 Art. 4533X-0
CONTROLS
Microphone volume
Adjust the microphone volume.
Rotate clockwise to increase or anti-clockwise to decrease
Loudspeaker volume
Adjust the loudspeaker volume.
Rotate clockwise to decrease or anti-clockwise to increase
- 1 -
PROG.
Close
Open
Made in Italy
RS485 EXT CAMERA
ETHERNET INPUTS
EXPANSION
BUTTONS
See CONNECTION table
Art. 4533-1
Art. 4533X-1
66250985 - V5.1 - 31/07/20
Rev.0.1
G
H
I
L
M
N
EIA/TIA-568A
or EIA/TIA-568B
Art. 4533-2
Art. 4533X-2
