4000 Series
Art. 4836
Speaker unit for audio door entry kits or little systems
A
B

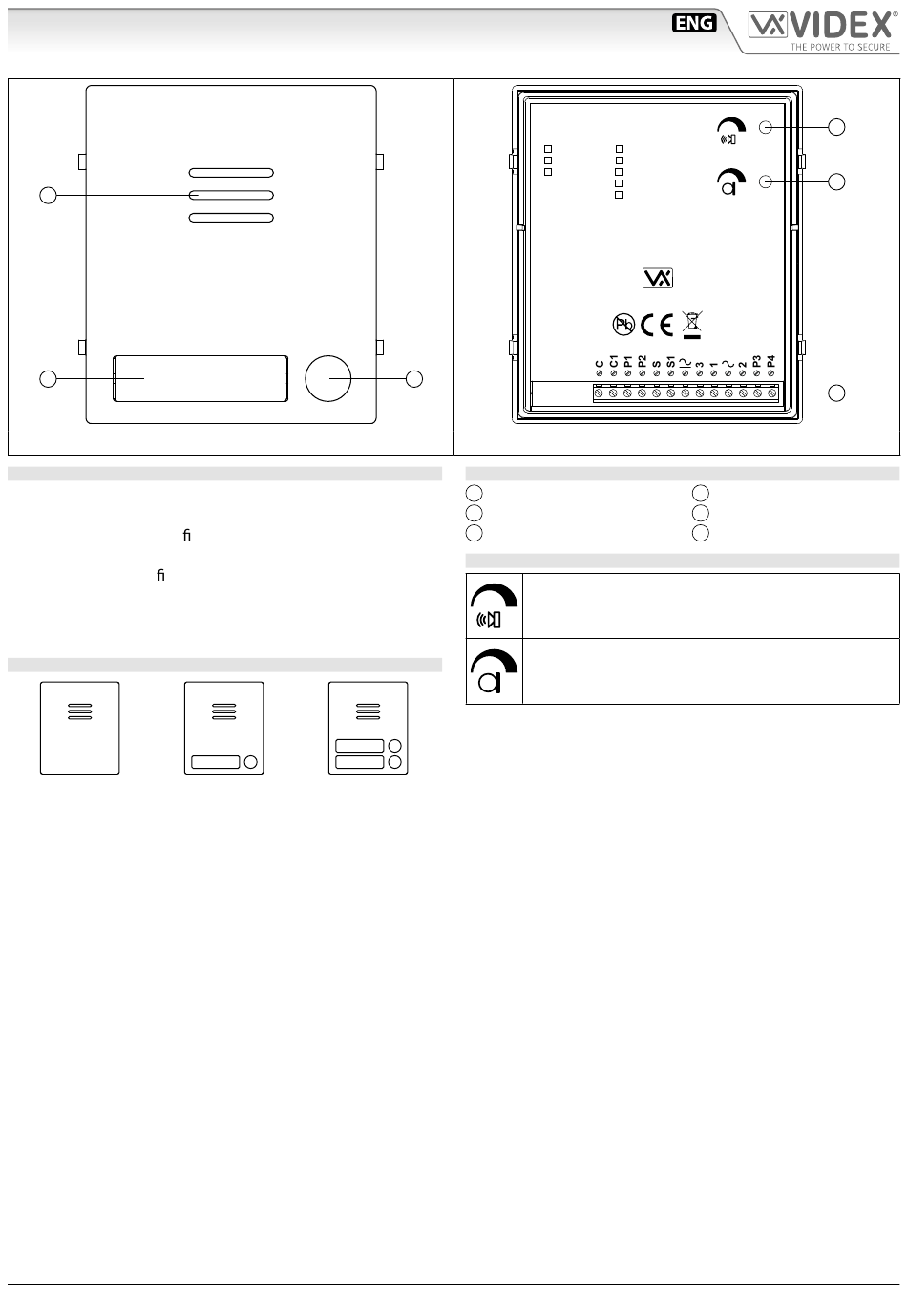

Fig. 1 Front
DESCRIPTION
Speaker unit for audio door entry kits or little systems.
The unit circuitry includes:
• The transmitting ampli er with condenser microphone and
volume control;
• The receiving ampli er and volume control;
• 2 LEDs to illuminate the name plate (except Art. 4836-0 model);
• The lock release relay to enable the electric lock;
• The modulated tone generator.
AVAILABLE VERSIONS AND BUTTONS LAYOUT
Art. 4836-0
Art. 4836 - Installation instructions
1
Art. 4836-1
Art. 4836-2
4836-0
4836-1
4836-2
C
Fig. 2 Back
LEGEND
Loudspeaker
A
Card name holder
B
Push button
C
CONTROLS
Loudspeaker volume
Adjust the loudspeaker volume.
Rotate clockwise to increase or anti-clockwise to decrease
Microphone volume
Adjust the microphone volume.
Rotate clockwise to increase or anti-clockwise to decrease
2
1
- 1 -
STEEL
ALI
HIGH BRASS
MATTE
GUN METAL
Made in Italy
Loudspeaker volume
D
Microphone volume
E
Connection terminals
F
66250430 - V5.0 - 15/12/20
Rev.0.1
D
E
F
Advertisement
Table of Contents
Related Manuals for Videx 4836-0
Summary of Contents for Videx 4836-0
- Page 1 CONTROLS • The receiving ampli er and volume control; Loudspeaker volume • 2 LEDs to illuminate the name plate (except Art. 4836-0 model); Adjust the loudspeaker volume. • The lock release relay to enable the electric lock; Rotate clockwise to increase or anti-clockwise to decrease •...
- Page 2 Electronic call tone output (active only on call) During a call: approx. 150mA Output call button 1 During a conversation: approx 70mA (available on all versions except Art. 4836-0) Working Temperature: -20 +60 °C Output call button 2 CLEANING OF THE PLATE (available only on Art.
- Page 3 • L’ampli catore di ricezione con altoparlante da 0,5W e regola- Volume altoparlante zione del volume; Regolazione del volume dell’altopalralte. • 2 LED d’illuminazione cartellini (escluso Art. 4836-0); Ruotare in senso orario per aumentare o antiorario per diminuire • Il relè d’asservimento per l’attivazione della serratura elettrica; Volume microfono •...
- Page 4 Uscita nota elettronica (attiva durante la chiamata) Durante la chiamata: circa 150mA Uscita pulsante 1 Durante la conversazione: circa 70mA (disponibile in tutte le versioni eccetto la Art. 4836-0) Temperatura di lavoro: -20 +60 °C Uscita pulsante 2 PULIZIA DELLA PLACCA (disponibile solo per l'Art.
- Page 5 - 5 - 66250430 - V5.0 - 15/12/20...
- Page 6 - 6 - 66250430 - V5.0 - 15/12/20...
- Page 7 DISPOSAL In accordance with the Legislative Decree no. 49 of 14 March 2014 “Implementation of the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”. The crossed-out bin symbol on the equipment or on the packaging indicates that when the product reaches the end of its lifetime, it must be collected separately from mixed municipal waste.
- Page 8 MANUFACTURER VIDEX ELECTRONICS S.P.A. FABBRICANTE Via del Lavoro, 1 FABRICANT 63846 Monte Giberto (FM) Italy FABRICANTE Tel (+39) 0734 631669 FABRIKANT Fax (+39) 0734 632475 www.videx.it - info@videx.it CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. UK Customers only: SUPPORTO CLIENTI www.videx.it - technical@videx.it...
