Videx 4000 Series Manual

4000 Series Vandal Resistant Range
Art. 4512
IP Audio/video digital front panel
Art. 4512V

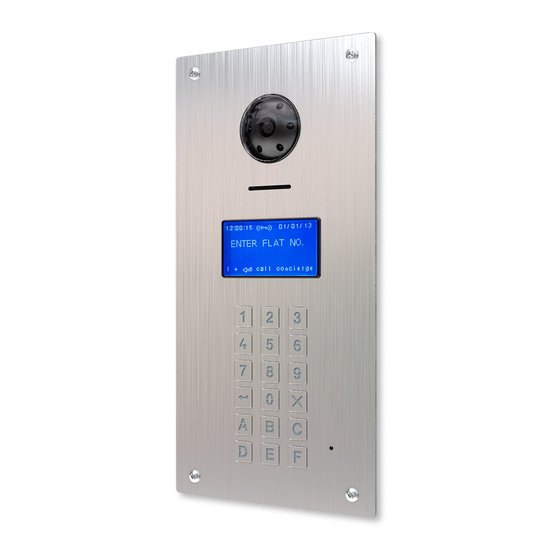

Fig. 1 Front
DESCRIPTION
ART. 4512V, ART. 4512V/F
4000 Series Vandal resistant (front plate in brushed stainless
with 2mm thickness) digital call panel for Videx IP systems. This
panel is compatible with the 4000 Series modular system and
has the size of two 4000 Series modules.
Complementing all digital door panels manufactured by Videx is
the ability for all users to have their own unique access code (each
apartment can have more than one access code). The access code
can have up to six digits and is blind to onlookers. Also,integrated
into the panel is a proximity reader enabling a number of proxim-
ity fobs to be stored and used individually or in combination with
the access code to enter the building. In addition to the speaker
unit functions, the panel includes a 128 x 64 pixel graphical LCD
display with blue back light (to provide text and graphical mes-
sages guiding a visitor through the panel operation) plus a keypad
with 18 blue back lit buttons 6 of which are alpha buttons (A..F),
10 are numeric buttons (0..9) plus ENTER and CLEAR buttons. The
tenants can be called by dialling the relevant apartment code.
To complement the visual messages provided from the display, the
panel has the voice annunciation facility to supply audio messages
concerning the system operation. The built-in camera is a colour
CMOS wide angle camera with white light illumination LED's (the
wide angle camera provides a viewing angle of 170 degrees). Interfaces include a Wiegand output (for systems based on this interface, not
implemented yet) a RS-485 interface for future use.
The memory capacity allows to store up to 10000 users data, up to 10000 access codes, up to 10000 proximity keys. The front panel
finish is brushed stainless steel while the frame finishes are the standard offered in the 4000 Series.
ART. 4512RV, ART. 4512RV/F
As Art. 4512V but using a keypad with 15 blue back lit buttons 3 of which are navigation buttons used for the repertory name
facility, 10 are numeric buttons (0..9) plus ENTER and CLEAR buttons. The tenants can be called by dialling the relevant apartment
number or by searching the relevant name using the repertory name function.

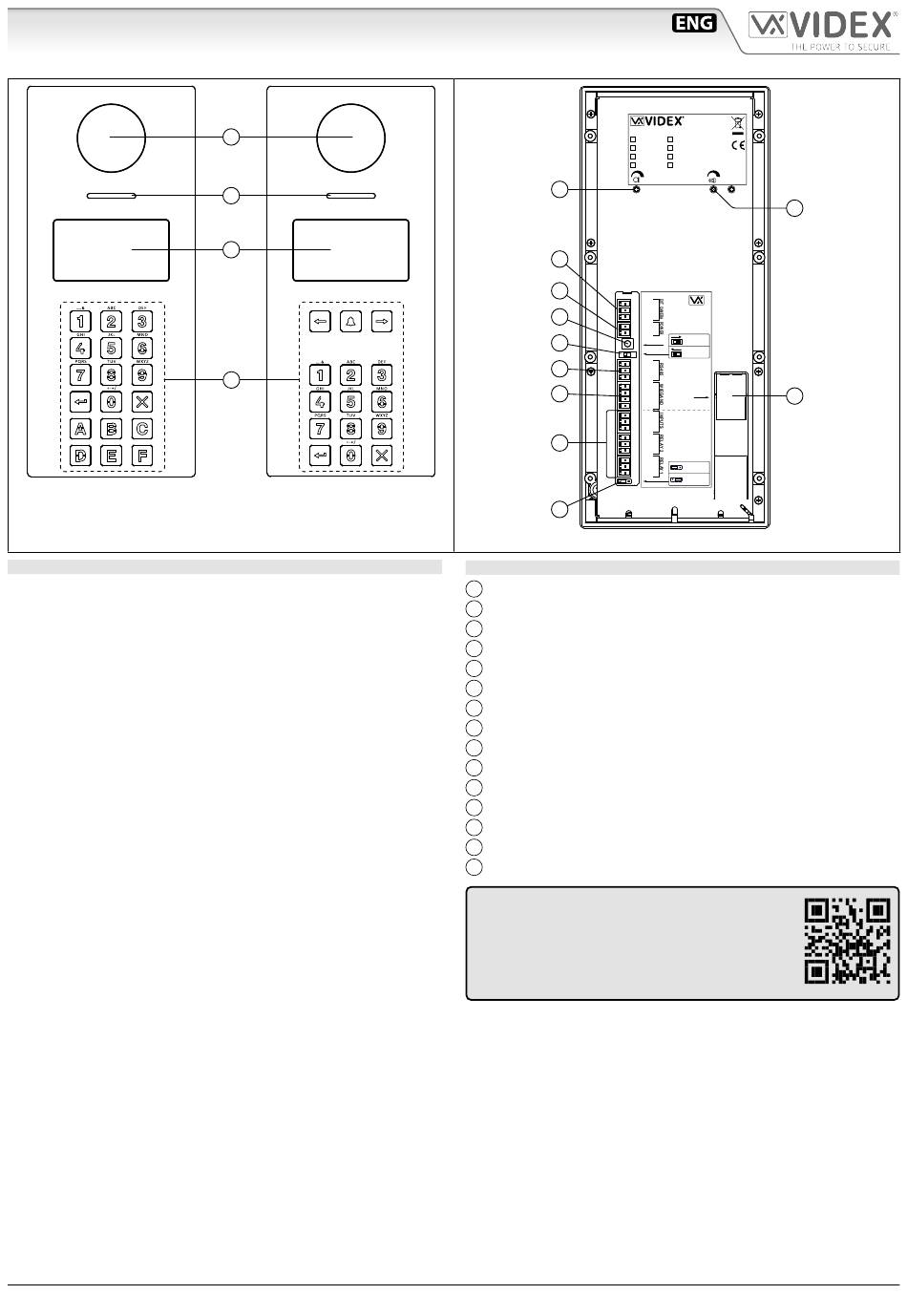

Art. 4512 - Installation instructions
A
B
C
D
Art. 4512RV
E
G
H
I
L
M
N
O
P
Fig. 2 Back
LEGEND
Camera and illumination LEDs
A
Loudspeaker
B
Display
C
Keypad
D
Microphone volume
E
Loudspeaker volume
F
External camera connecion terminals
G
Power supply connection terminals
H
Boot loader push button for firmware update
I
RS485 bus termination switch
L
RS485 bus connection terminals
M
Wiegand connection terminals (not implemented yet)
N
System connection terminals
O
Door open relay operating mode jumper
P
POE Ethernet interface
Q
To download the programming software
VX IP Wizard and obtain the latest firmware
and manuals please visit the following web-
site and register
https://service.videx.it/
- 1 -
Made in Italy
Digital call panel for IP system
4512V 4512RV
4512V/UK 4512RV/UK
4512V/F 4512RV/F
4512V/NFP 4512RV/NFP
F
VID
Made in Italy
GNDV
SL
RS485
GND
BUS TERMINATION
+12V
OPEN
PROG.
CLOSE
GND
B
ETICHETTA 1
A
D0
Q
D1
LAN
LR
LG
GNDI
IN2
IN1
NO2
NC2
C2
NO1
Dry contact
NC1
output
C1
Capacitor
discharge
66251770 - V1.3 - 30/06/21
