Assembly

The Microlene rack-mount UV system is designed as a do-it-yourself (DIY) system
with a single inlet and outlet port. Unpack the system and ensure all the components

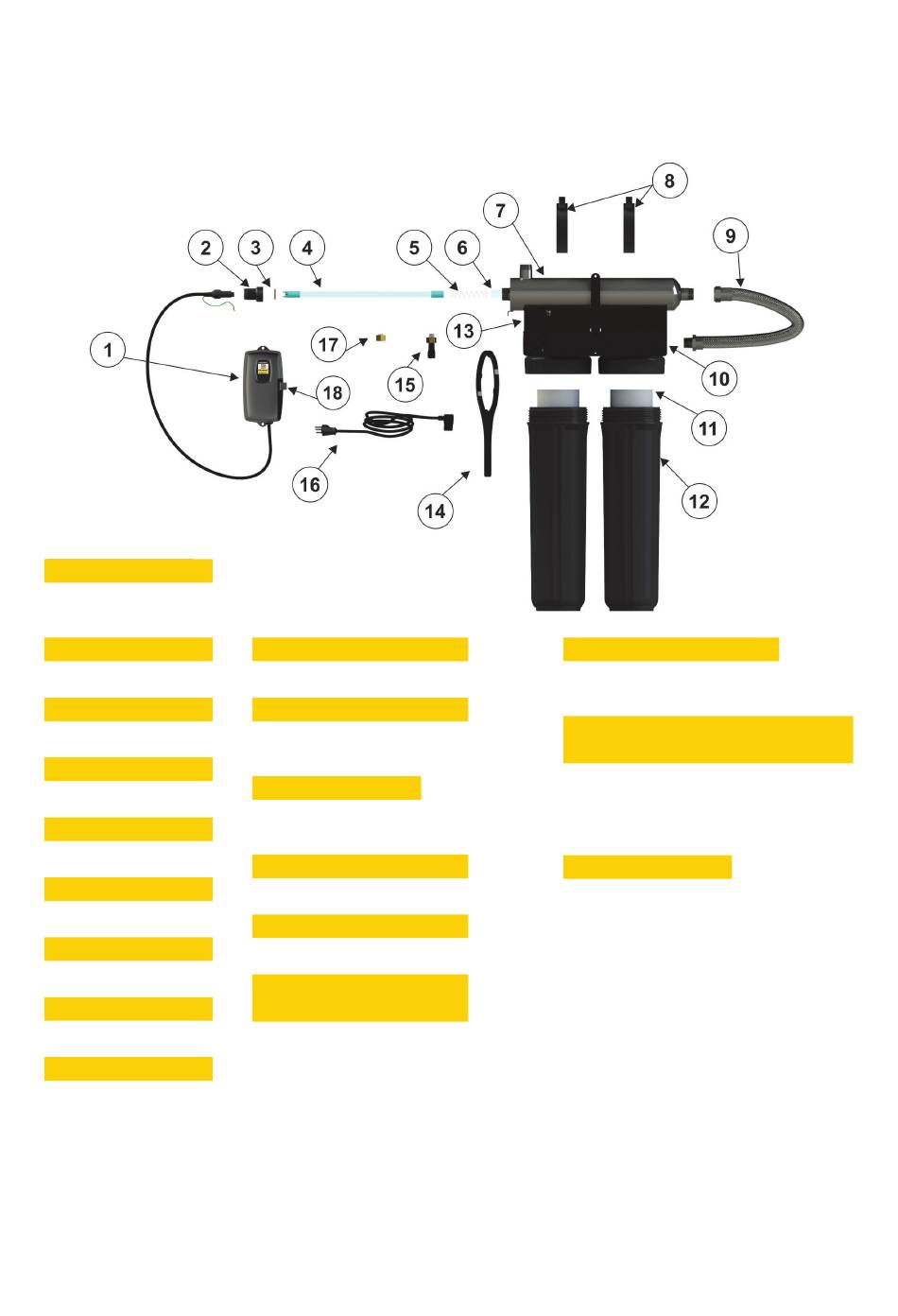

are included in the box. Your system is shipped with the following components:
1 Controller
MCS-CONT (fits all MCS series units)
MCXS-CONT (fits all MCXS series units)
2 Gland Nut
Part # 32006
3 O-ring
Part # 310038
4 UV Lamp
MC-HOLP
5 Sleeve Spring
Part # 310039
6 Quartz Sleeve
MC-HOSL
7 UV Reactor
Part # 300064
8 Clamps
Part # 390071 (each)
9 Flexible Hose
Part # 310130 (single filter)
Part # 310126 (double filter)
10 Mounting Plate
Part # 310121 (for all double filter systems)
11 Filter Cartridges
Part # 20PP20J (20", 20 micron sediment)
Part # 1PS20J (20", 1 micron sediment)
12 Filters
Part # 160017 (double filter, 10" & 20" sump)
Part # 160018 (double filter, two 20" sumps)
13 Mounting Screws
Part # 390077
14 Filter Wrench
Part # WFH45
15 UV Sensor
(optional module)
MCXS-UVS
Sensor o-ring, Part # 310040
16 IEC Power Cable
MC-CONT-PC Australian, AS/NZS 3112,
3 prong grounded
17 Glow Plug
(on BLACKCOMB-HO
Complete Assembly, part # 300016
Glow Plug, part # 310026
O-ring, part # 310040
Brass Nut, part # 390007
18 Lamp Key
Comes with new UV lamps
(NOT sold separately)
(not for use on MCS-CONT controller)
6
units only)
