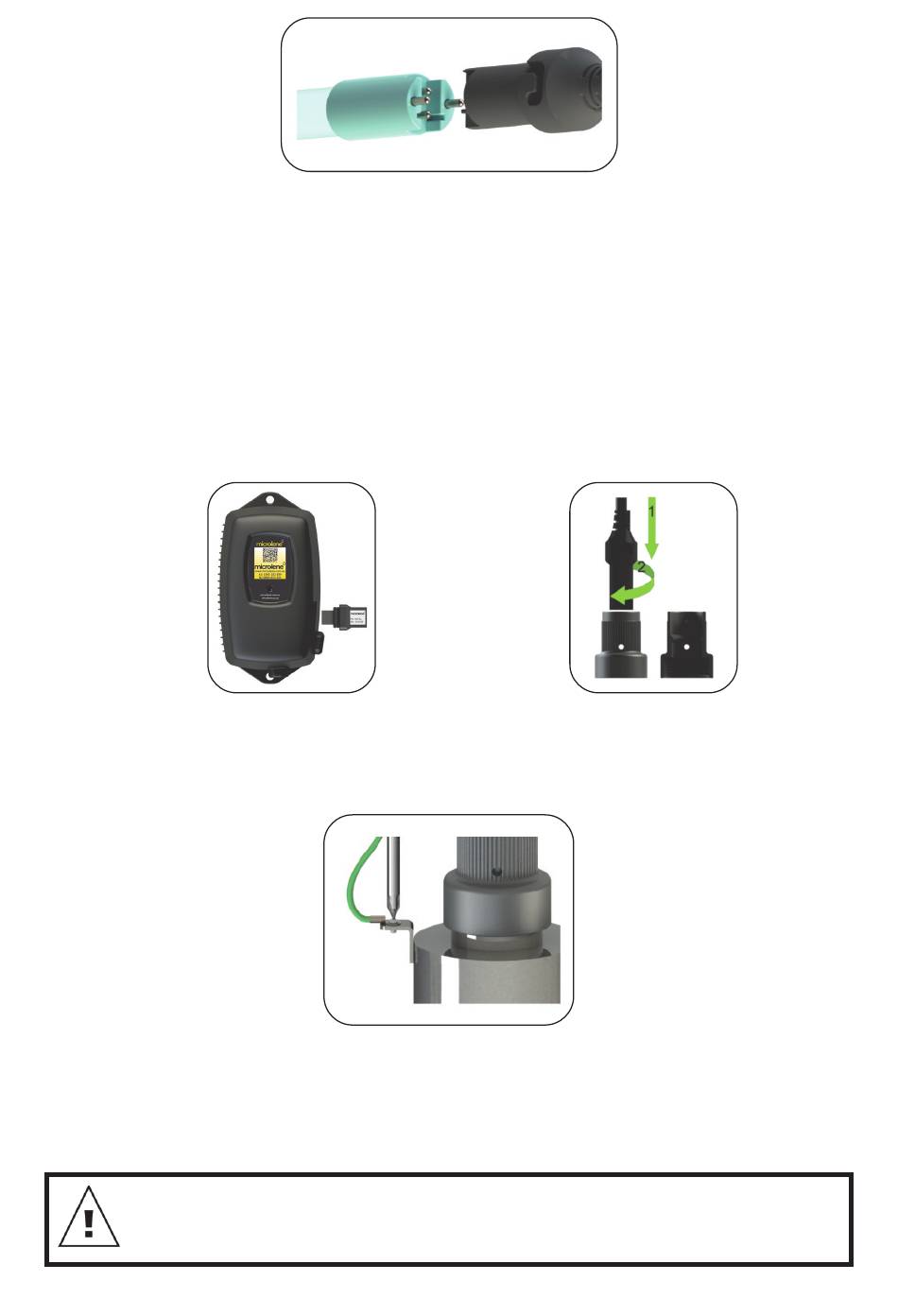

Step 12: Install the lamp key into the controller (MCXS systems only). The key always
comes packaged with the lamp and sits on the connector. With the key
removed from the lamp, orient it so the label is upright and facing you. The key
will plug into the lamp key port on the right side of the controller (Figure 9).
Step 13: Plug the lamp connector into the lamp. Note the keying for proper
alignment (see Figure 8). Insert the lamp connector into the gland nut and
turn the connector approximately ¼ turn to lock the connector to the gland
nut as in Figure 10.
Figure 9. Lamp Key Installation
Step 14: Tighten the captive ground screw to the ground lug on the UV reactor to
ensure proper grounding.
Step 15: Your system is now ready to be plugged into the appropriate GFCI protected
outlet. Refer to the following section before any water is allowed to flow
through the system.
Note: Installation of your Microlene disinfection systems shall comply with
applicable provincial/state & local regulations.
Figure 8. High Output UV
Lamp Connection
Figure 11. Ground Screw Connection
Figure 10. LUMI-Loc™ Connector
11
