Step 9: Install the UV sensor (optional). Align the flat portion so it faces the gland
nut end and matches up with the half metal lip on the sensor port (see
Figure 6). Insert the sensor so it is fully seated and hand tighten the sensor
nut. Insert the sensor connector into the IEP port located on the right side of
the controller (Figure 7). For the sensor to be recognized by the controller,
the controller power must be plugged in last. Do not plug the controller
power cord in before the last step.
Figure 6. UV Sensor Installation
Step 10: Remove the filter head screws from the top mounting plate (4 screws for a
single filter model and 8 screws for a double filter model).
Step 11: Carefully lower the filter head (or heads) from the rack assembly and rotate
180 de-grees. Reassemble onto the rack assembly and take note of the
arrows located on the top of the filter heads indicating water flow (which
now should be indicating a flow direction of right-to-left).Step 4:
Remove the stainless steel UV reactor from the two plastic clamps located on
the top of the rack. Carefully remove the top straps securing the reactor with
the aid of a standard (slot) screwdriver). Rotate the reactor 180 degrees (with
the inlet now facing to the left and the lamp connections located towards the
right) and place back into the cell clamps and re affix the two top straps.
In either the left or right configurations, to facilitate lamp removal, ensure
there is enough space at the lamp connector end to safely remove the UV
lamp and/or quartz sleeve (See Figure 3).

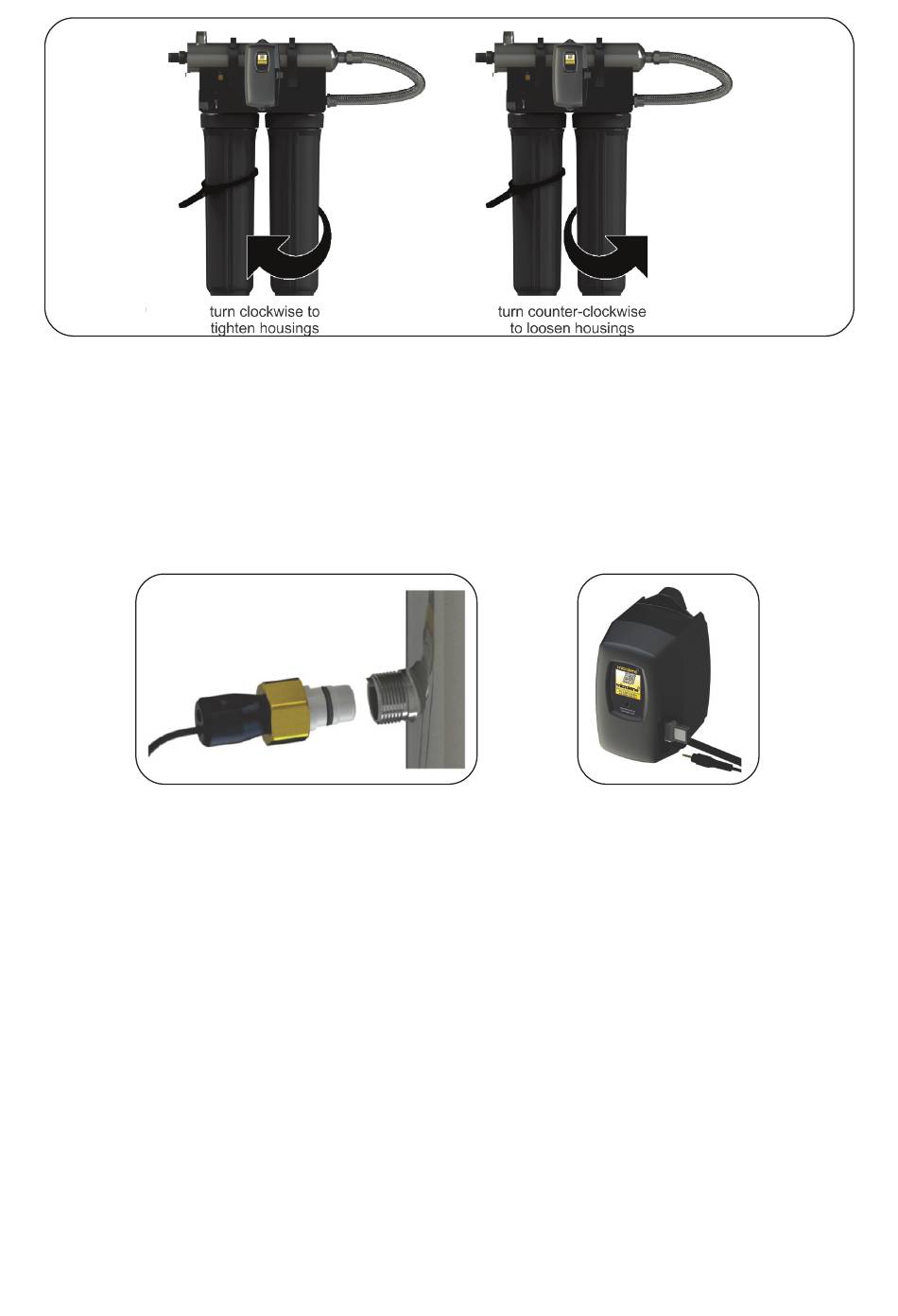

Figure 5. Cartridge Removal
10
Figure 7. IEP Connection
