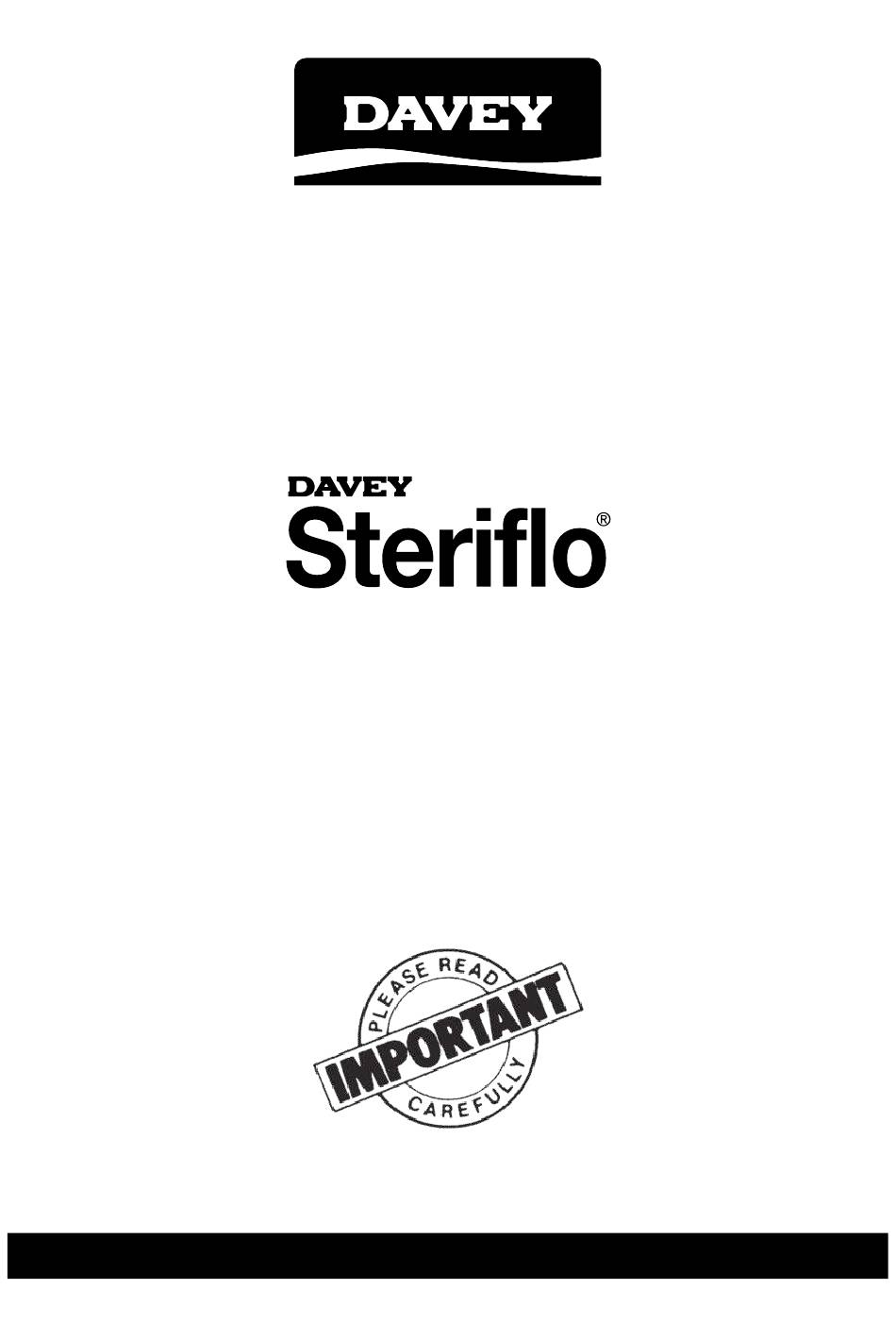

- Page 1 Installation and Operating Instructions Ultra Violet Water Treatment System UV130 and UV250 Please pass these instructions on to the operator of this equipment.
- Page 2 Ultra Violet Water Treatment System Maximum operating pressure for stainless steel UV chambers is 850kPa (125 psi). If this pressure can be exceeded or if operating close to this pressure if a suitable pressure limiting valve in the supply to the UV chamber.
-
Page 3: Table Of Contents
Lamp Installation .................... 9 Operation ...................... 10 Maintenance ....................10 Water Quality ....................12 Lamp Alarm System ..................12 Trouble Shooting ..................13 Part Numbers ....................14 After Sales Service ..................14 WARNINGS ....................15 Davey Repair or Replacement Guarantee ........... 16... - Page 4 Congratulations on your purchase of a high quality, Australian made Steriflo Ultra Violet water treatment system. All components have been designed and manufactured to give trouble free, reliable operation. Your new Steriflo system incorporates a lamp failure system design feature that enables you to be warned of a lamp failure by :- 1.
-
Page 5: Preparing Your System
Preparing your system On removing your Steriflo system from its carton you should check all components, especially the lamp, to ensure all are present and have not been damaged in transportation. You should have: 1. Power supply control box with indicator light(s) and electrical flex 2. -
Page 6: Power Connection
Power Connection WARNING: When servicing or attending your Steriflo, always ensure power is switched off and lead unplugged. Electrical connections should be serviced only by qualified persons. If the electrical supply lead of this system is damaged, it must only be replaced by a qualified service personnel. - Page 7 Install the power supply enclosure above the treatment chamber so that in the event of a leak, water cannot drip down the lamp lead into the enclosure. CAUTION: The supply cord is necessary for lamp changing. The three pin supply plug must remain accessible after installation.
-
Page 8: Electrical Power Surge Protection
Electrical Power Surge Protection An electrical power surge or spike can travel on the supply lines and cause serious damage to your electrical equipment. The Steriflo control box has a 2 Amp fuse to protect the circuit. The fuse is not a lightning arrestor and may not protect the Steriflo if lightning or a very powerful surge hits the unit. -
Page 9: Pre-Treatment (Drinking Water)
Pre-treatment (drinking water) Pre-filtration is usually required to ensure that particulate matter does not shield micro-organisms from the UV light. Sand filtration or 20 micron cartridge filtration is the usual minimum. In some cases, particularly with surface water, finer filtration may be necessary, or if cysts like Giardia or Cryptosporidium may be present. -
Page 10: Operation
If added as a shot dose it should be rinsed out through a nearby tap. Davey Water Products Limited cannot accept responsibility for loss or damage resulting from incorrect or unauthorised installations. - Page 11 Quartz Sleeve Cleaning (three monthly): If dirt is allowed to build up on the quartz sleeve it will impair the UV output. The quartz sleeve should be removed after one month and inspected for deposits. Clean with methylated spirits (5% hydrochloric acid if heavily fouled) and carefully dry.
-
Page 12: Water Quality
Water Quality Where the water being pumped contains unusually high levels of dissolved solids (hard water), iron, manganese or biological organisms, a deposit build up on the quartz sleeve may occur over time. This will compromise the effectiveness of the UV system and the sleeve should be cleaned as required to maintain it in a clean condition. -
Page 13: Trouble Shooting
Trouble Shooting Principle. a ballast (choke) provides the correct voltage and current for the lamp(s). The circuit board monitors the current to the lamp and if it is not present, illuminates the red alarm light and sounds the alarm buzzer (a “squealing” noise). An orange light indicates the power is on. -
Page 14: Part Numbers
For assistance in locating your nearest dealer, contact Davey Water Products Pty Ltd, customer service centre on 1300 232 839, by fax 1300 369 119 or by email sales@davey.com.au. In New Zealand on 0800 654 333, by fax on 0800 654 334 or by email to sales@daveynz.co.nz or visit davey.com.au. -
Page 15: Warnings
WARNINGS ULTRA-VIOLET RADIATION IS HARMFUL TO SKIN AND EYES. EYES Switch off UV system before removing covers. If working within line of sight of UV light, ensure that a suitable full face plastic facemask is worn. SKIN It is recommended that exposed skin is covered to prevent sunburn, possibly severe, if working within line of sight of operating UV system. -
Page 16: Davey Repair Or Replacement Guarantee
Alternatively you can phone our Customer Service line on 1300 232 839 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim, Davey will seek to resolve your difficulties or, if the product is faulty or defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
