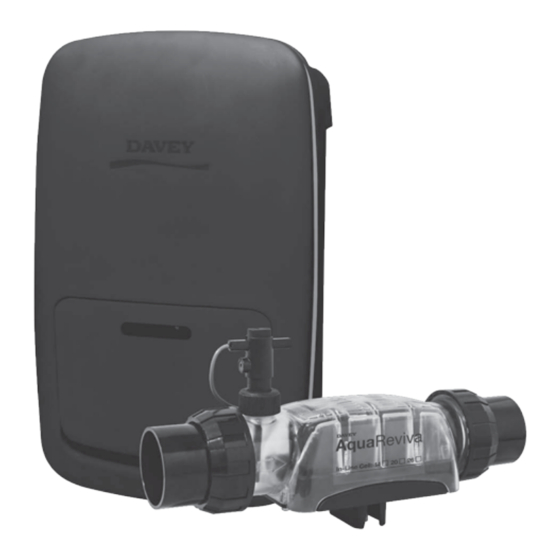

- Page 1 AquaReviva Mineral and Salt Water Sanitiser Models: DAR14C, DAR20C & DAR26C Installation & Operating Instructions WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or property damage. The installation of this product should be carried out by a person knowledgeable in swimming pool plumbing requirements following the installation instructions provided in this manual.
- Page 2 Diagram A Flow CORRECT OPERATION WITH PUMP RUNNING Flow switch ON. Diagram B Flow INCORRECT OPERATION WITH PUMP RUNNING Flow switch OFF. • Always check Davey’s website, davey.com.au for the latest versions of Installation & Operation Instructions that support these products.
-
Page 3: Table Of Contents
AquaReviva Congratulations! You are now the proud owner of a new AquaReviva Mineral and Salt Water Sanitiser. Please read all information in this manual carefully before installing or operating your Salt Water Sanitiser. Contents PACKING LIST ................................4 IMPORTANT INFORMATION ............................. 5 INSTALLATION INSTRUCTIONS FOR AquaReviva .................... -
Page 4: Important Information
2. MONITOR & MAINTAIN YOUR SANITISER IN-LINE CELL Davey AquaReviva has a “Reverse Polarity” In-Line cell. • To keep your AquaReviva Salt Water Sanitiser in the best possible condition, regular monitoring of the electrolytic cell is recommended. The ‘Cell’ is the clear plastic housing containing the plates. -
Page 5: Installation Instructions For Aquareviva
INSTALLATION INSTRUCTIONS FOR AquaReviva INSTALLING THE POWER SUPPLY vertically onto a post or wall 1.5 metres above ground level. Australian Standards requires that the Power Supply shall not be located within 3 meters of the pool water. Plug Power supply into a suitable weatherproof outlet and plug pump into the power outlet of the Power Supply Unit. -
Page 6: Connecting The In-Line Electrolytic Cell To The Power Supply
CONNECTING THE IN-LINE ELECTROLYTIC CELL TO THE POWER SUPPLY The AquaReviva Salt Water Sanitiser uses a reverse polarity In-Line Electrolytic Cell for low maintenance connectors. Fit the white connector to the middle titanium rod as per illustration below. which is to be installed on the Cell as shown in the diagram on page 6. CONNECTING THE FLOW SWITCH TO THE POWER SUPPLY CONNECTING THE FILTER CIRCULATION PUMP TO THE POWER SUPPLY Insert the pool pump’s 3 pin plug into the 3 pin socket located on the back of the sanitiser’s power supply plug. -
Page 7: Pre-Start Up Procedure
Pool pump’s 3 pin plug Sanitiser’s plug and socket Do not use a double adaptor to connect more than one pump – it can cause overload to the system and could void your warranty. PRE-START UP PROCEDURE Before operating your AquaReviva Pool Sanitiser System please ensure the following quantity of Pool Salt (P/N: M3708-20) or mineral salt (P/N: EMSALT-15) and mineral activator (P/N: EMACT-15) has been added to your pool. - Page 8 Note: When the need arises to top up your pool with Davey EcoMineral Salt or Davey EcoMineral Activator, due to dilution through rainfall or backwashing. Davey recommends you use equal quantities of EcoMineral Salt to Activator (ratio 1:1) and that you maintain your TDS level between 4,000 and 6,000ppm.
-
Page 9: Operation Of Your Aquareviva System
OPERATION OF YOUR AquaReviva SALT WATER SANITISER Cell Output is expressed as a percentage. Set the system control to the percentage output required and the warning system. This regulates the output of the Unit to the preset maximum and changes cell polarity as indicated by POLARITY LEDs A&B. -
Page 10: Aquareviva Special Features
AquaReviva SPECIAL FEATURES SYSTEM CONTROL (SANITISER OUTPUT DIAL) The System Control will not vary the electrical current supplied to the Cell. amount of time the Cell will operate during the 5-hour cycle will be 4 hours. If the System Control is set to entire 5 hour cycle. -
Page 11: Automatic Time Clock Operation
AUTOMATIC TIME CLOCK OPERATION TIMER SETTING AND FUNCTIONS SELECTOR SWITCH Clock 8:00 Timer 1 - ON Timer 1 - OFF Timer 2 - ON Timer 2 - OFF Automatic Manual - ON for the LCD to appear on the screen. Selector Function Description Switch... - Page 12 Selector Function Description Switch Functions and Instructions Position SET THE COMPLETION TIME OF THE SECOND RUN TIME SEQUENCE Select the Timer 2- ON position on the selector switch. A number ‘4’ will appear on the left of the screen. Set Timer 2 - ON This time is factory pre-set to 5pm.
-
Page 13: Maintenance Of Power Supply
Please ensure that when Cell replacement is necessary you use the correct genuine AquaReviva Replacement Cell to match your system. The correct AquaReviva replacement cells to use are shown in the table below: ALWAYS INSIST ON GENUINE DAVEY REPLACEMENT PARTS. Model Replacement Cell Code... - Page 14 TO CLEAN THE AquaReviva IN-LINE CELL Ensure that the Power Supply is turned off – failure to do so may result in the pool pump turning on while the return line by undoing the unions, taking care not to lose the o-rings. Method 1.
-
Page 15: Day To Day Operation
If you run your Sanitiser for 24 hours a day, or for long periods, the Cell life will be greatly reduced. It is important that the correct model AquaReviva has been installed on your pool. Many models are available from Davey to cope with small courtyard pools up to commercial applications. -
Page 16: Chlorine Production
Please note that Sanitiser cell life can be increased with shorter running times during winter and lower output settings. Davey recommends that a Sanitiser is run for between 6 - 8 hours a day during summer, and 4 hours during winter. -
Page 17: General Information
GENERAL INFORMATION POOL WATER CHEMISTRY INSTRUCTIONS Total Calcium Stabiliser - Recommended POOL WATER Free Chlorine Alkalinity TA Hardness Cyanuric Acid TDS Levels BALANCE (ppm) (ppm) (ppm) (ppm) (ppm) Concrete & Concrete & Tiled Pools Tiled Pools Ideal Reading/ 1.5 - 3 7.4-7.6 80 - 150 200-275... -
Page 18: Trouble Shooting
TROUBLE SHOOTING Low Chlorine Production - Check for: No Chlorine Production - Check for: 1. Dirty Cell - clean if required 1. Main power outlet switched off 2. Filter needs back washing 2. Sanitiser not plugged into main outlet 3. Cell failing 3. - Page 19 Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim, Davey will seek to resolve your difficulties or, if the product is faulty or defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
