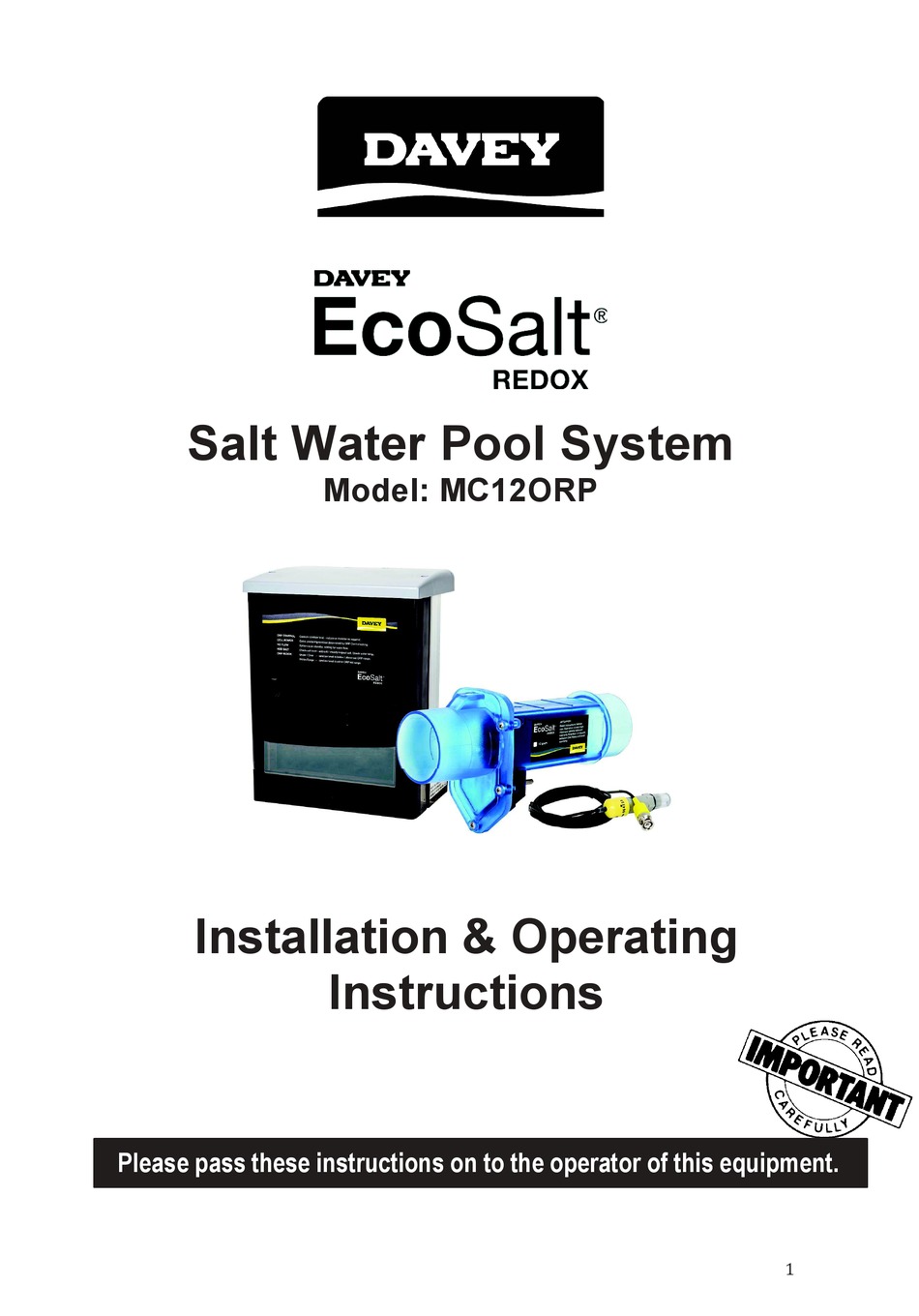

- Page 1 Salt Water Pool System Model: MC12ORP Installation & Operating Instructions Please pass these instructions on to the operator of this equipment. "!
- Page 3 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 4: Table Of Contents
Page 16 Trouble Shooting Page 17 Mounting Details Page 20 Davey Contact Information Packing List Included with your EcoSalt REDOX System are the following items, please check the contents of the box carefully prior to attempting to install the system: 1. -
Page 5: Important Notice
IMPORTANT NOTICE: FACTORS THAT WILL IMPROVE THE PERFORMANCE & LIFE OF YOUR SALT WATER CHLORINATOR PLEASE READ THIS BEFORE OPERATING YOUR CHLORINATOR POOL BUILDERS: Please cover this information with your customer during the new pool ÒHand over SessionÓ Salt Water Chlorinators are a valuable piece of pool sanitising equipment and must be cared for to get the best performance and life span from it. -
Page 6: Installation Instructions
Installation Instructions for EcoSalt REDOX INSTALLING THE POWER SUPPLY: Select a convenient well-ventilated location within one metre of filter equipment and mount the Power Supply vertically onto a dedicated pool equipment wall or post 1.5 metres above ground level. The Power Supply should not be located within 3 meters of the pool water. - Page 7 Installation Instructions for EcoSalt REDOX CONNECTING THE IN-LINE ELECTROLYTIC CELL TO THE POWER SUPPLY: The EcoSalt REDOX uses a reverse polarity In-Line Electrolytic Cell for low maintenance operation. The EcoSalt REDOX Power Supply is fitted with a flexible lead terminated with connectors. These must be correctly fitted to the connections on the Cell.
-
Page 8: Pre-Start Up Procedure
Pre-Start Up Procedures Before operating your EcoSalt REDOX please ensure the following items have been added to your pool: ¥ SALT - Load salt into the pool at the rate of 45-60kg per 10,000 litres to achieve a recommended salt level of 4500 - 6000ppm. - Page 9 Setting and Operating Your EcoSalt REDOX System 5. If the green 'Within Range( LED indicator is not achieved during your daily filtration cycle, you need to either increase the filtration time or follow the trouble shooting procedures on page 16. 6.
-
Page 10: Ecosalt Redox Special
EcoSalt REDOX Special Features ORP CONTROL: This dial is used to set the level of sanitiser (chlorine) you would like to be maintained in the pool. CELL POWER: This green LED indicator is displayed when power is being applied to the cell. NO FLOW: This red LED indicator is displayed when there is a Ôno water flowÕ... -
Page 11: Ecosalt Redox System Maintenance
Little or no maintenance is normally required with the exception of replacing blown Fuses. These Fuses can be sourced from your local Davey Dealer. However it is essential that the wall or post to which the power supply is installed be sprayed (not the unit itself) periodically with a good surface type insect repellent, since penetration by insects may cause damage, which is not covered by your warranty. - Page 12 As an alternative you can clean the cell by purchasing a suitable blanking cap (Davey P/N MK102118) which is fitted to one end of the cell. Secure the cell in an upright position and fill with solution from the open end.
-
Page 13: Day To Day Operation
Do not add Hydrogen Peroxide to pool water or through swimming pool hydraulic or sanitiser system. Use of Hydrogen Peroxide will void warranty on Davey products. Salt is NOT used up in the process of producing chlorine or by evaporation. Salt is only lost through backwashing, splash-out, overflow or by leakage from the pool or plumbing. -
Page 14: Chlorine Production
Please note that chlorinator cell life can be increased with shorter running times during winter and lower output settings. Davey recommends that a chlorinator is run for between 6 - 8 hours a day during summer, and 4 hours during winter. - Page 15 General Information RECOMMENDED POOL WATER CHEMISTRY POOL Free Chlorine Total Alkalinity Calcium Hardness Stabiliser - Recommended WATER (ppm) TA (ppm) (ppm) Cyanuric Salt Level BALANCE Acid (ppm) (ppm) Concrete & Concrete & Tiled Tiled Pools: Pools - 200-275 Ideal Reading/ Range 7.4-7.6 Other Surfaces - 1.5 - 3...
-
Page 16: Trouble Shooting
TROUBLE SHOOTING WARNING: If EcoSalt REDOX Probe is disconnected or not properly connected to Power Supply then your EcoSalt REDOX will continue to produce chlorine and may reach dangerous levels. Always ensure connections are intact and if cell power light is continually on or you discover high chlorine levels in the pool, turn off the EcoSalt REDOX and check the connections. -
Page 17: Mounting Details
Mounting Details 50mm "*! - Page 18 Notes "+!
- Page 19 Notes ",!
- Page 20 Installation and operating instructions are included with the product when purchased new. They may also be found on our website.
