Mineral Water Sanitiser
WARNING: Failure to follow these instructions and comply with all
applicable codes may cause serious bodily injury and/or property damage.
The installation of this product should be carried out by a person knowledgeable
in swimming pool plumbing requirements following the installation instructions
provided in this manual.
Please pass these instructions on to the operator of this equipment.

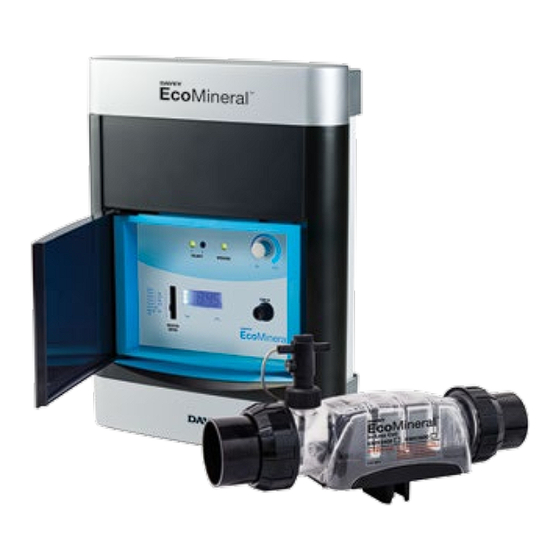

EcoMineral
Therapeutic
Models: EMX2400 & EMX3600
Installation &
Operating Instructions
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Davey EMX3600
Summary of Contents for Davey EMX3600
-
Page 1: Operating Instructions
EcoMineral ® Therapeutic Mineral Water Sanitiser Models: EMX2400 & EMX3600 Installation & Operating Instructions WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or property damage. The installation of this product should be carried out by a person knowledgeable in swimming pool plumbing requirements following the installation instructions provided in this manual. - Page 2 CORRECT OPERATION WITH PUMP RUNNING Direction of flow indicator û Diagram B INCORRECT OPERATION WITH PUMP RUNNING Direction of flow indicator • Always check Davey’s website, davey.com.au for the latest versions of Installation & Operation Instructions that support these products.
-
Page 3: Table Of Contents
EcoMineral ® Congratulations! You are now the proud owner of a new EcoMineral Water Sanitiser System. Please read all information in this manual carefully before installing or operating your EcoMineral Water Sanitiser System. Contents PACKING LIST ................................2 IMPORTANT INFORMATION ............................. 3 INSTALLATION INSTRUCTIONS FOR ECOMINERAL ..................... -
Page 4: Important Information
IMPORTANT INFORMATION ABOUT YOUR SANITISER FACTORS THAT WILL IMPROVE THE PERFORMANCE & LIFE OF YOUR ECOMINERAL WATER SANITISER PLEASE READ THIS BEFORE OPERATING YOUR SANITISER POOL BUILDERS: Please cover this information with your customer during the new pool “Handover Session” Sanitisers are a valuable piece of pool sanitising equipment and must be cared for to get the best performance and life span from it. -
Page 5: Installation Instructions For Ecomineral
INSTALLATION INSTRUCTIONS FOR ECOMINERAL INSTALLING THE POWER SUPPLY Select a convenient well-ventilated location within one metre of filter equipment and mount the Power Supply vertically onto a post or wall 1.5 metres above ground level. Australian Standards requires that the Power Supply shall not be located within 3 meters of the pool water. -
Page 6: Connecting The In-Line Electrolytic Cell To The Power Supply
The EcoMineral Power Supply is fitted with a flexible lead terminated with push on brass connectors for the EMX2400 model and push on brass connectors with a securing nut for the EMX3600 model. These must be correctly fitted to the connections on the Cell. Fit black connectors to the outer titanium rods. -
Page 7: Connecting The In-Line Electrolytic Cell Flow Switch To The Power Supply
CONNECTING THE IN-LINE ELECTROLYTIC CELL FLOW SWITCH TO THE POWER SUPPLY Use the black & red terminals at base of the unit to connect the two wires from the Flow Switch to the Power Supply (See below): Place the Flow Switch wires into the terminal holes at right angles, and tighten the terminals. CONNECTING THE FILTER CIRCULATION PUMP TO THE POWER SUPPLY Insert the 3 pin male plug into the 3 pin female socket located at the bottom of the Power Supply. -
Page 8: Pre-Start Up Procedure
Note: When the need arises to top up your pool with Davey EcoMineral Salt or Davey EcoMineral Activator, due to dilution through rainfall or backwashing. Davey recommends you use equal quantities of EcoMineral Salt to Activator (ratio 1:1) and that you maintain your TDS level between 4,000 and 6,000ppm. -
Page 9: Operation Of Your Ecomineral System
STORAGE AND SAFETY 1. Store in a dry, covered place away from direct sunlight for longer bag life 2. Always use the entire bag content of EcoMineral Salt, once opened. Do not keep open bags of EcoMineral Salt as it is sensitive to moisture in the air. 3. -
Page 10: Control Panel Layout
CONTROL PANEL LAYOUT POLARITY SANITISER INDICATOR OUTPUT DIAL LEDs POLARITY OPERATION OPERATION 100% FUSE 3A Clock 8:00 Timer 1 - ON Timer 1 - OFF FUSE HOLDER Timer 2 - ON AND FUSE Timer 2 - OFF Automatic Manual - ON EcoMineral ®... -
Page 11: Ecomineral Special Features
ECOMINERAL SPECIAL FEATURES SYSTEM CONTROL (SANITISER OUTPUT DIAL) The System Control varies the amount of time the Cell operates during the filtration cycle. The System Control will not vary the electrical current supplied to the Cell. As an example, if one filtration cycle is set at 5 hours, and the System Control is set to 80%, then the total amount of time the Cell will operate during the 5-hour cycle will be 4 hours. -
Page 12: Automatic Time Clock Operation
POLARITY OPERATION AUTOMATIC TIME CLOCK OPERATION TIMER SETTING AND FUNCTIONS FUSE Clock 8:00 Timer 1 - ON Timer 1 - OFF Timer 2 - ON Timer 2 - OFF Automatic Manual - ON EcoMi SELECTOR SWITCH NOTE: When you first turn on the power to the Sanitiser, it will take approximately 1min for the LCD to appear on the screen. - Page 13 Selector Function Description Switch Functions and Instructions Position SET THE COMPLETION TIME OF THE SECOND RUN TIME SEQUENCE Select the Set Timer 2- ON position on the selector switch. A number ‘4’ will appear on the left of the screen. Set Timer 2 - ON This time is factory pre-set to 5pm.
-
Page 14: Maintenance Of Power Supply
Please ensure that when Cell replacement is necessary you use the correct genuine EcoMineral Replacement Cell to match your system. The correct EcoMineral Replacement Cells to use are shown in the table below: ALWAYS INSIST ON GENUINE DAVEY REPLACEMENT PARTS. Model Replacement Cell Code... - Page 15 TO CLEAN THE ECOMINERAL IN-LINE CELL Ensure that the Power Supply is turned off – failure to do so may result in the pool pump turning on while the Cell is not in place. Disconnect the cell lead and flow switch from the Cell and remove the Cell from the pool return line by undoing the unions, taking care not to lose the o-rings.
-
Page 16: Day To Day Operation
If you run your Sanitiser for 24 hours a day, or for long periods, the Cell life will be greatly reduced. It is important that the correct model EcoMineral has been installed on your pool. Many models are available from Davey to cope with small courtyard pools up to commercial applications. -
Page 17: Chlorine Production
Please note that Sanitiser cell life can be increased with shorter running times during winter and lower output settings. Davey recommends that a Sanitiser is run for between 6 - 8 hours a day during summer, and 4 hours during winter. -
Page 18: General Information
GENERAL INFORMATION POOL WATER CHEMISTRY INSTRUCTIONS Total Calcium Stabiliser - Recommended POOL WATER Free Chlorine Alkalinity TA Hardness Cyanuric Acid TDS Levels BALANCE (ppm) (ppm) (ppm) (ppm) (ppm) Concrete & Concrete & Tiled Pools Tiled Pools Ideal Reading/ 1.5 - 3 7.4-7.6 80 - 150 200-275... -
Page 19: Trouble Shooting
TROUBLE SHOOTING Low Chlorine Production - Check for: No Chlorine Production - Check for: 1. Dirty Cell - clean if required 1. Main power outlet switched off 2. Filter needs back washing 2. Sanitiser not plugged into main outlet 3. Cell failing 3. -
Page 20: Mounting Template
Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim, Davey will seek to resolve your difficulties or, if the product is faulty or defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
