BHM
01/27/20
NTV-DOC350
3950 NW 120
th
St. Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
NTV-KIT956
Overview
The Smart-Link is a smartphone interface that adds convenience features to any screen or specific NAV-TV
interface kits equipped with Digital-RGB input. This module has composite and (proprietary) HD video output
and can be controlled by either a 4-wire resistive touch screen (not provided), optional knob-controller or
OEM touchscreen (if available). Analog RCA audio out is provided and must be sent to the vehicle if available
via an AUX input. See full compatibility chart on page 2.

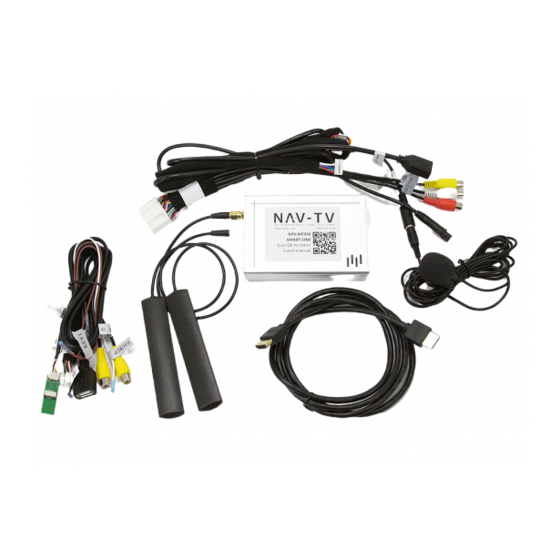

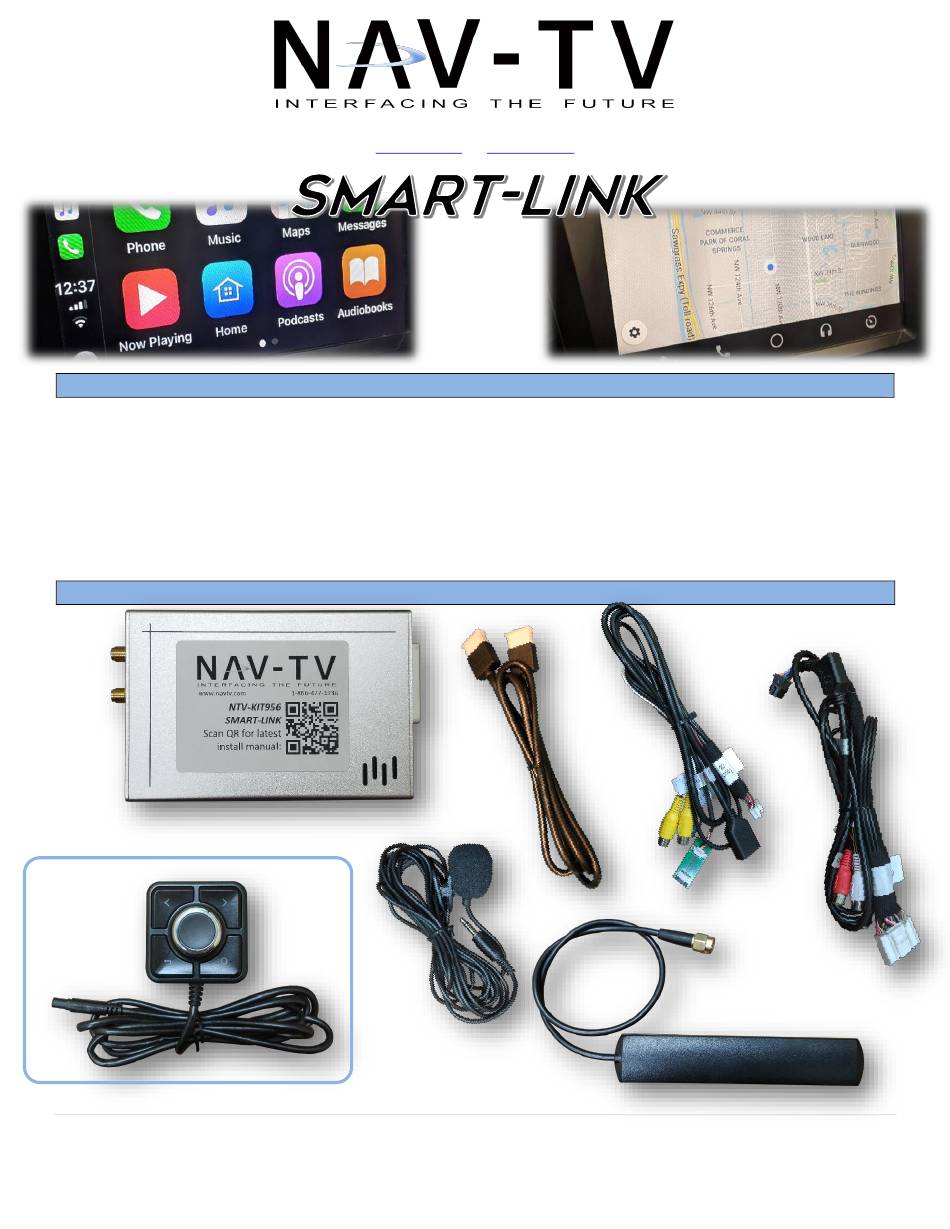

Kit Content
Smart-Link Adapter
Optional
Control Knob
NTV-INT311
HDMI Cable
Touch/Video Cable
Power/Audio Cable
BT/WIFI
Antennas (x2)
Microphone
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product.
If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger
entertainment only.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nav TV NTV-KIT956
Summary of Contents for Nav TV NTV-KIT956
- Page 1 St. Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com NTV-KIT956 Overview The Smart-Link is a smartphone interface that adds convenience features to any screen or specific NAV-TV interface kits equipped with Digital-RGB input. This module has composite and (proprietary) HD video output and can be controlled by either a 4-wire resistive touch screen (not provided), optional knob-controller or OEM touchscreen (if available).
- Page 2 01/27/20 NTV-DOC350 Current Compatibility* NAV-TV SKU NAV-TV KIT MAKE Control AUX input NTV-KIT749 PCM3.1N Porsche (w/ NAV) OEM touch OEM 3.5mm NTV-KIT780 GM-LVDS CHEVY/GMC/CADDY OEM touch OEM 3.5mm NTV-KIT796 GM-GVIF Chevy/GMC/Caddy OEM touch OEM 3.5mm NTV-KIT798 IOB-RVC CHEVY/GMC 7” OEM touch OEM 3.5mm NTV-KIT837 BMW-EVO ID6...
- Page 3 01/27/20 NTV-DOC350 Smart-Link Installation Smart-Link was designed to be as flexible as possible (for 12v systems) and is adaptable for use with two different screen (input) types. Below are all Input, Output & system control options available. All functions are simultaneously available. General INPUT (&...
- Page 4 01/27/20 NTV-DOC350 Smart-Link diagram: Global Usage Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 5 01/27/20 NTV-DOC350 Smart-Link diagram: (touchscreen overlay) Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 6 01/27/20 NTV-DOC350 Smart-Link diagram: (knob controller) Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 7 01/27/20 NTV-DOC350 Interface setup for Smart-Link (compatible NAV-TV interface) If using the Smart-Link in conjunction with a compatible NAV-TV interface, the UI control is over factory touchscreen and the Video is sent via DIGI-RGB (via HDMI cable). Audio output from the Smart-Link module must be connected to the vehicle AUX input.
- Page 8 01/27/20 NTV-DOC350 Smart-Link Menu Options The Smart-Link has many options for configuring hardware preferences. Exit the Phone OS system by selecting the ‘HOME’ or ‘EXIT’ tile, this will bring you to the main hardware OS screen. Scroll all the way to the right side and choose the ‘SETTING’...
