- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 MOST-H.U.R. MB V2 Head Unit Replacement interface for select Mercedes NTV-KIT736 08/31/16 NTV-DOC210...

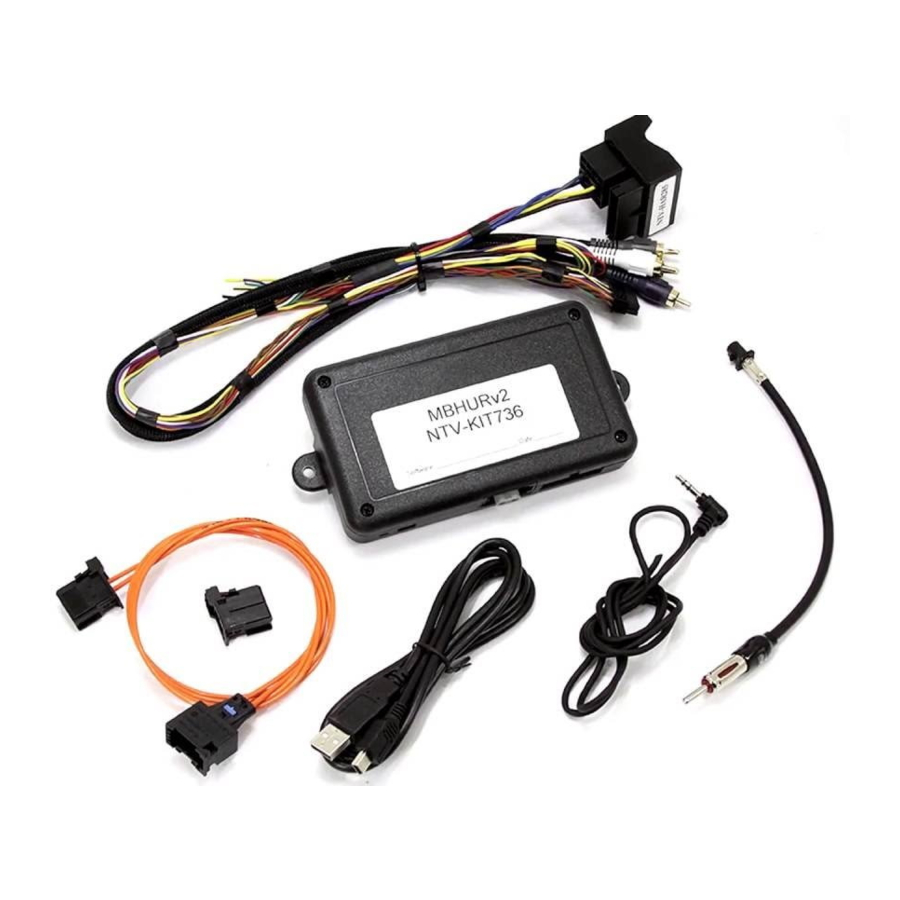

- Page 2 08/31/16 NTV-DOC210 Overview The MOST-HUR ML V2 is a radio replacement interface for Mercedes Benz ML vehicles equipped with an external M.O.S.T. fiber optic amplifier. The module allows the factory amplifier, speakers and sound quality to be retained when adding a modern aftermarket radio. Other components in the factory system, such as a CD changer, satellite radio, telephone module, DVD player, or any other factory component in the M.O.S.T loop will not need to removed, but will not function after the installation.
- Page 3 08/31/16 NTV-DOC210 HUR-MB Installation 1. Base-line the factory radio: a. Source the radio to FM radio. b. Adjust the volume to a comfortable listening setting c. Be certain the MUTE function is not enabled d. Center the balance and fade, center the bass and treble e.
- Page 4 08/31/16 NTV-DOC210 MOST HUR-MB V2 Menu Setup Once all connections are made, verify sound is heard through the system with the key on. Verify balance and FM radio signal (via the aftermarket HU). The following MOST-HUR/OEM Amplifier adjustments can be made with the OEM steering wheel controls, and feedback is shown through the cluster LCD screen during the process.
- Page 5 08/31/16 NTV-DOC210 MOST HUR-MB V2 Steering wheel type / LOGIC 7 setup Before steering wheel controls will operate properly, you must select the proper protocol in the HUR Cluster menu (see page 4). Each type is detailed below: Use for Use for Sony Use for Use for Pioneer...
- Page 6 08/31/16 NTV-DOC210 Steering Wheel (radio) Control This section shows the steering wheel controls when not in NAV-TV settings mode. Note that some of these functions will only work when the cluster is resting on ‘NAVTV HU – AUDIO’. *Phone pick up: Track/Preset UP BT phone pick up Volume UP...
- Page 7 08/31/16 NTV-DOC210 MOST HUR-MB V2 Diagram NOTE: Not all connections are shown in this diagram. Some optional connections not shown. Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase.
