BHM
09/18/15
NTV-DOC164
rB3
3950 NW 120
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
AUDI-09 INT MMi
NTV-KIT186
Overview
The AUDI-09 INT MMi Kit allows the user to add up to 3 video inputs and a backup camera input
to the factory media screen in select Audi vehicles with the internal MMi media system (MMi
controls on vertical radio face, not console). Audio integration requires that the vehicle have a
factory audio input.

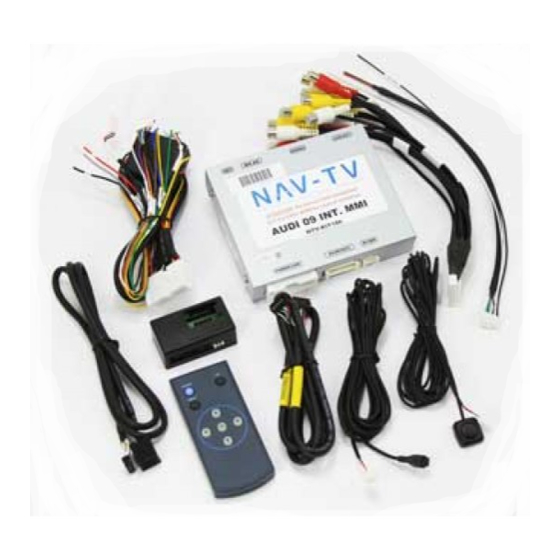

Kit Contents
AV Input Harness
Video Sub-Board
Audi 09 Interface
Remote
Sub-Board cable
Input Toggle Switch
Power/CAN Harness
LVDS Video Cable
IR Eye Harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nav TV AUDI-09 INT MMi
Summary of Contents for Nav TV AUDI-09 INT MMi
- Page 1 NTV-KIT186 Overview The AUDI-09 INT MMi Kit allows the user to add up to 3 video inputs and a backup camera input to the factory media screen in select Audi vehicles with the internal MMi media system (MMi controls on vertical radio face, not console). Audio integration requires that the vehicle have a factory audio input.
- Page 2 09/18/15 NTV-DOC164 Interface Connectors Power/CAN AV IN/OUT Camera power OUOUT OUOUT Status LEDs Dip Switches LCD IN/OUT (Sub- Touch Board Cable) IN/OU LCD-IN (from OEM cable) OUOU From Interface (Sub-Board (LVDS Cable) Video Cable) Dip Switch Settings* Configure prior to installation Dip SW: Enables Enables...
- Page 3 09/18/15 NTV-DOC164 Quick Connection Guide Video cable installation happens behind the screen, no need to remove the radio *Accessory can be found at the passenger fuse box, typically black/white or black/blue Drop the glove box for easiest install ...
-
Page 4: Installation
09/18/15 NTV-DOC164 Installation 1. Remove the factory radio and screen. This usually requires pulling panels and removing a series of screws. Disconnect any associated harnesses and set the radio and screen aside. 2. Gather the provided ‘Power/CAN Harness’ from the AUDI 09 kit. Connect the following wires to the car: Interface wires Connect to car... - Page 5 09/18/15 NTV-DOC164 7. Connect the free end of the Sub-Board Cable to the main AUDI 09 interface at the port labeled ‘LCD-OUT’. 8. Connect the AV Input cable to the port on the AUDI 09 interface labeled ‘AV IN/OUT’. If you’re only connecting a reverse camera (and no other inputs), the signal input from the camera must connect to the RCA labeled ‘REAR-C’.
-
Page 6: Image Menu
09/18/15 NTV-DOC164 Menu Adjustments Before you start: Make sure the car’s ignition is on and radio is booted/settled You must be in ‘NAVI’ (RGB), ‘AV1’, ‘AV2’ or ‘AV3’ mode (on display screen) Use the remote ‘OK’ button to switch modes, or use the provided input toggle switch ... - Page 7 09/18/15 NTV-DOC164 FAQs Q. I cannot switch A/V sources. A. Check IR or toggle switch connection. Check the LEDs on the interface, if nothing is lit up with vehicle ignition, check power/ground connections. Q. All I see on the display is a black screen (no factory image pass-through). A.
