BHM
10/18/18
NTV-DOC245
3950 NW 120
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
W205-N RVC
NTV-KIT703

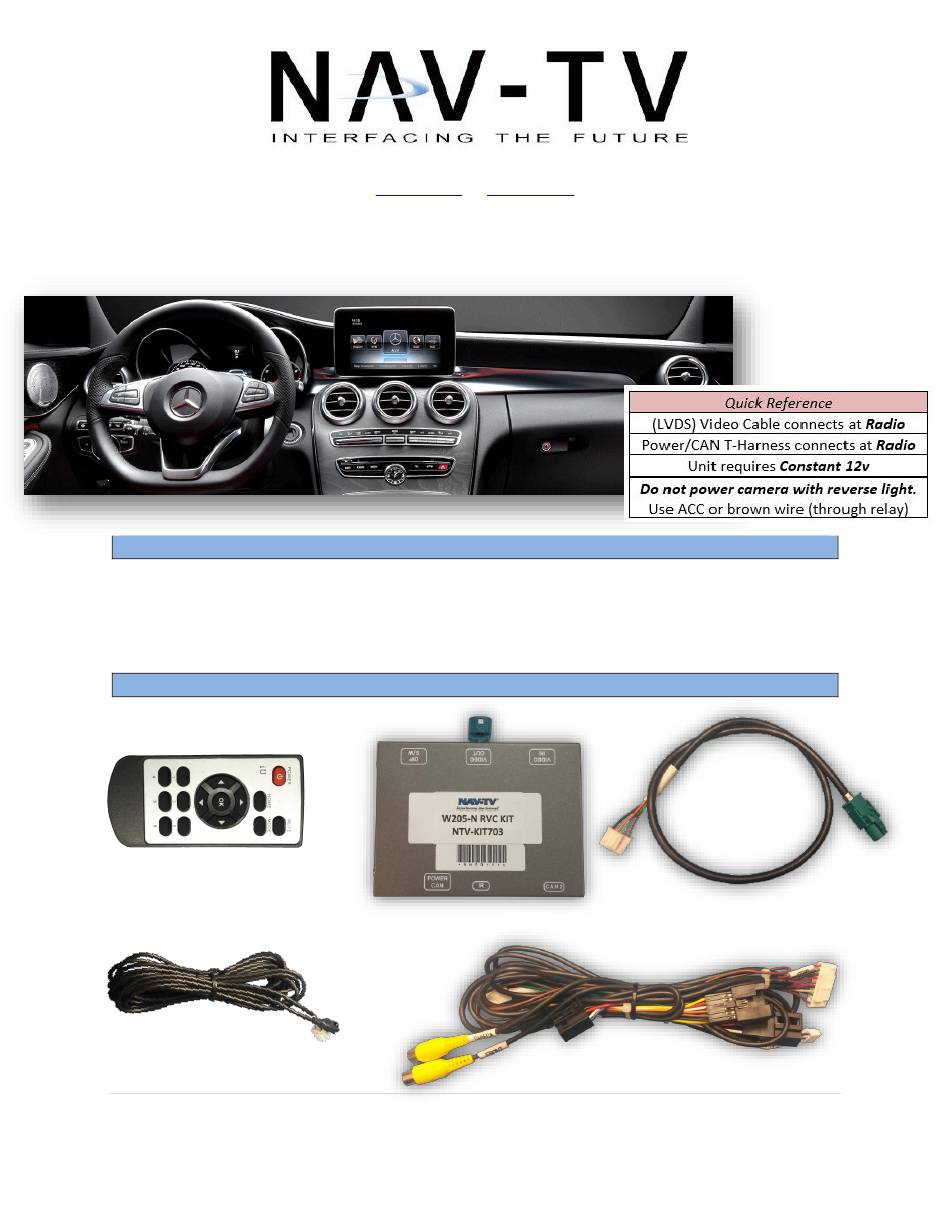

Overview
The W205-N RVC Kit interfaces a backup camera input (with active parking lines) and 1 front
camera to the factory media screen in select 2015 Mercedes vehicles with the new
infotainment system.

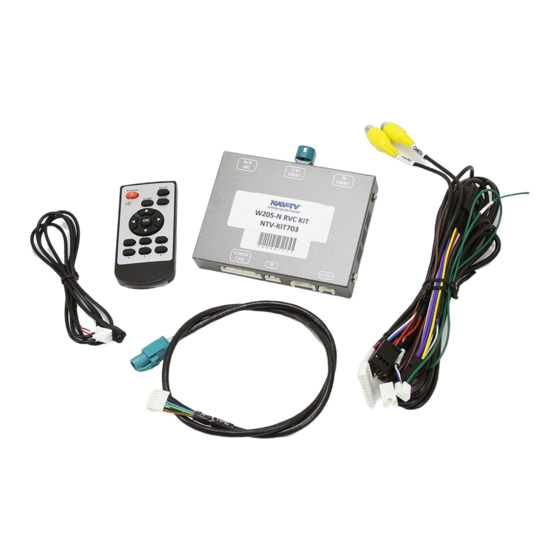

Kit Contents
A-Type
LVDS
Video
Cable
OSD Menu remote
W205-N RVC Interface
IR Eye
Plug & Play Power/CAN Harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nav TV W205-N RVC
Summary of Contents for Nav TV W205-N RVC
- Page 1 W205-N RVC NTV-KIT703 Overview The W205-N RVC Kit interfaces a backup camera input (with active parking lines) and 1 front camera to the factory media screen in select 2015 Mercedes vehicles with the new infotainment system. Kit Contents A-Type...
- Page 2 10/18/18 NTV-DOC245 Interface Connectors Power/CAN IR Eye Not Used CAN 2 Input OUOUT Video IN (from radio) Video OUT (to screen) Not Used Dip Switches Dip Switch Settings DIP SW High KEEP KEEP C-Class DOWN TYPE Adding C-Class DOWN KEEP KEEP ONLY DOWN...
- Page 3 10/18/18 NTV-DOC245 Dash Removal (’15 C-Class) 1. Use a plastic tool to remove the silver trim behind the COMAND touchpad controller. You will have to open the center console and press the arm rest locks forwards for clearance: 2. Remove (2x) Torx 20 screws hidden beneath the silver trim piece in step 1: 3.
-
Page 4: Installation
10/18/18 NTV-DOC245 Installation 1. With the radio removed, disconnect all harnesses and set the radio aside. 2. In the main square radio plug, locate the 12-pin black plug and remove it (press clip on top and pull). 3. Separate the outer shell from this OEM connector and insert the provided 12-pin plug in its place (this connector only connects properly in one direction). - Page 5 10/18/18 NTV-DOC245 5. Locate the black and red wires labeled (GND) and (ACC) and solder these wires to the ground wire (PIN 12) and constant 12v power wire (PIN 15) on the same quad-lock connector (from step 4): 6. Locate the OEM, typically Dark Blue, 4-pin round connector (LVDS) that was removed from the radio in step 1 from the port on the radio labeled ‘DISP’.
- Page 6 10/18/18 NTV-DOC245 9. Connect the small white 4-pin plug labeled ‘CAN2’ to the plug on the W205-N interface labeled ‘CAN2’ for proper operation. 10. Power your reverse camera with an accessory 12v source, or use the brown wire for reverse 12v only. Splice ground (-) to the black wire provided to the interface, or find another ground point/wire in the car.
- Page 7 10/18/18 NTV-DOC245 W205-N RVC Install Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 8 10/18/18 NTV-DOC245 Menu Adjustments Before you start: The IR-Eye must be connected Make sure the car’s ignition is on and radio is on NOTE- step 4 You must be in Reverse Camera mode (place vehicle in reverse) only required Repeatedly press the MODE button until guidelines appear on screen* if OEM reverse Now press the OK button 4 times, then press Power camera exists...
- Page 9 NTV-DOC245 W205-N RVC Operation Once the W205-N RVC is connected properly, reverse activation is automatic. Placing the vehicle in reverse will display the connected camera’s image automatically. Note: If display doesn’t switch to reverse image when shifting into reverse, check dip switch settings on page 2.
