- Page 1 M.O.S.T HUR MB “OPTI-1” NTV-KIT421 Mercedes Benz Head Unit Replacment Interface Brendon Martell January 15,2013...

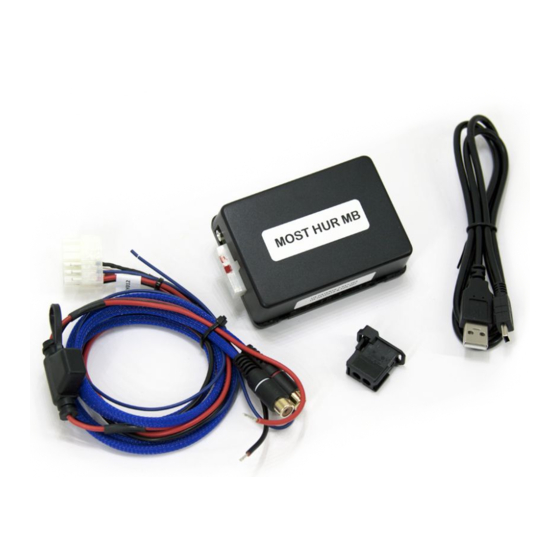

- Page 2 Included Parts: OPTI-1 INTERFACE Power, RCA input and remote M.O.S.T fiber optic outer turn on harness coupler Needed Tools: Electrical tape Crimpers Strippers Torx T20 Multi Meter Soft Pry Tools Necessary Parts NOT Included: European antenna adapter Antenna extension 4 - 6 meters...
- Page 3 This wire cannot be used for a radio ground but is su cient for the OPTI-1. 5. Connect the red wire of the OPTI-1 power harness to the constant power (usually red with a stripe) wire at the factory radio harness. This wire cannot be used for the radio constant power feed but is su cient for the OPTI-1.
- Page 4 NAV-TV does not o er technical support for dash kits and or custom mounting options, please consult with your local recommended specialist. OPTI-1 Power Harness diagram and pin locations 1. Red constant power input 12v+ 2. Blue remote turn on input 12v+ View is from the back (wire) side of the connector 3.
- Page 5 FAQs / Troubleshooting Q1: The OPTI-1 works ne on AM/FM but as soon as I put a CD or DVD in the unit all sound goes away. A1: Some aftermarket head units have an ampli er turn on wire as well as a power antenna wire. Normally, an ampli er turn on wire is blue/white and a power antenna remote wire is blue.
