BHM
09/18/15
NTV-DOC165
rB3
3950 NW 120
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com

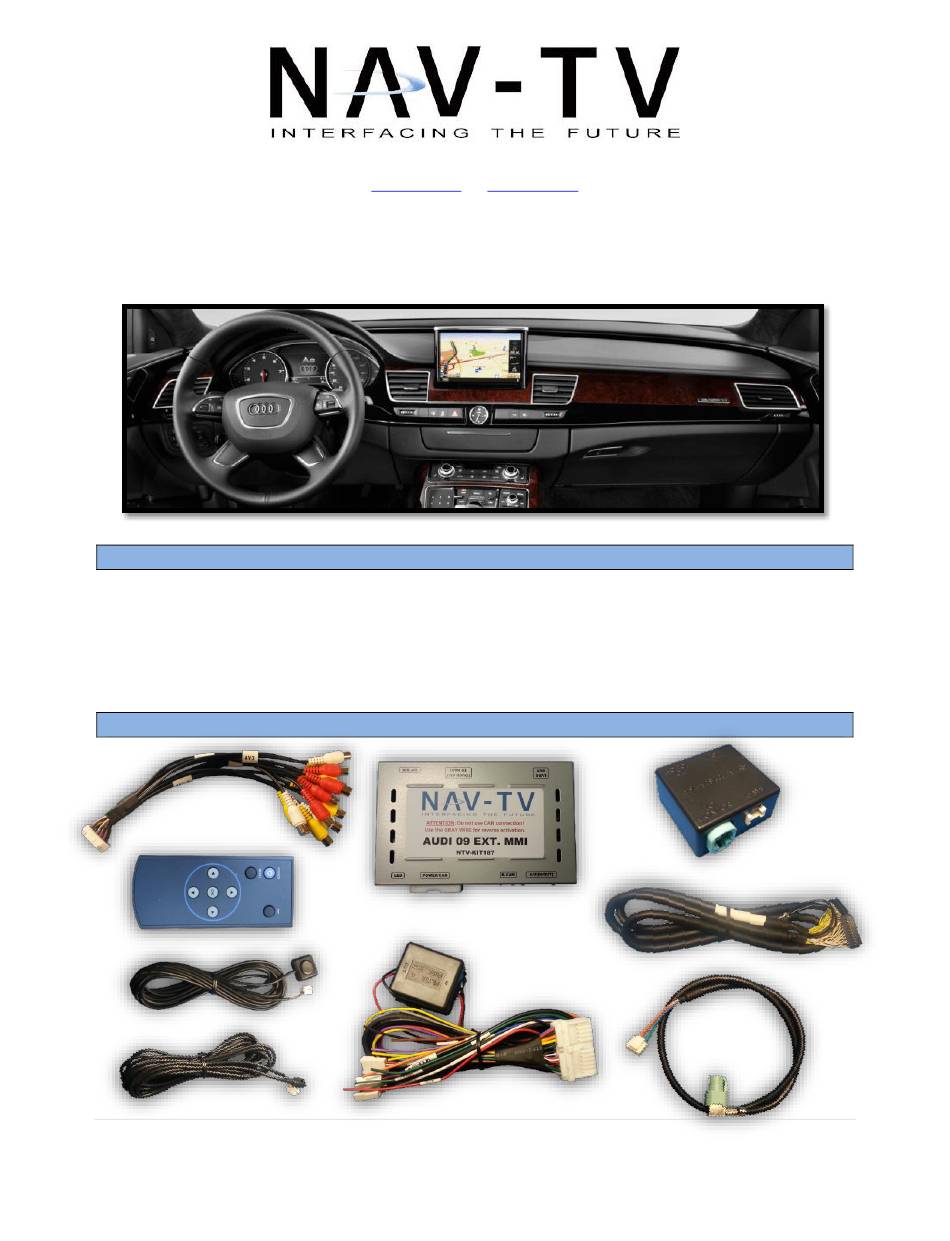

AUDI-09 EXT MMi
NTV-KIT187
Overview
The AUDI-09 EXT MMi Kit allows the user to add up to 3 video inputs and a backup camera
input to the factory media screen in select Audi vehicles with the external MMi media system
(MMi controls on console, not the radio face). Audio integration requires that the vehicle have
a factory audio input.

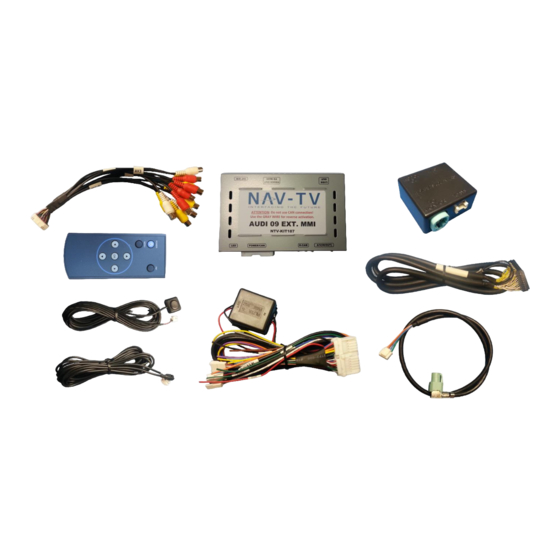

Kit Contents
AV Input Harness
Video Sub-Board
Audi 09 Interface
Remote
Sub-Board cable
Input Toggle Switch
LVDS
Video
Cable
Power/CAN Harness
IR Eye Harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Nav TV NTV-KIT187
Summary of Contents for Nav TV NTV-KIT187
- Page 1 AUDI-09 EXT MMi NTV-KIT187 Overview The AUDI-09 EXT MMi Kit allows the user to add up to 3 video inputs and a backup camera input to the factory media screen in select Audi vehicles with the external MMi media system (MMi controls on console, not the radio face).
- Page 2 09/18/15 NTV-DOC165 Interface Connectors Camera power AV IN/OUT Status LEDs Power/CAN OUOUT OUOUT Dip Switches Touch LCD IN/OUT (Sub- Board Cable) OUOU LCD-IN (from OEM cable) LCD OUT (To monitor) Sub-Board Cable (from main interface) Dip Switch Settings* Configure prior to installation Dip SW: Enables Enables...
- Page 3 09/18/15 NTV-DOC165 Quick Connection Guide Video cable Installation happens behind the radio (MMi), no need to remove screen *Accessory can be found at the passenger fuse box, typically black/white or black/blue Drop the glove box for easiest install ...
- Page 4 09/18/15 NTV-DOC165 Installation 1. Remove the factory radio. This usually requires pulling panels and removing a series of screws. Disconnect any associated harnesses and set the radio aside. 2. Gather the provided ‘Power/CAN Harness’ from the AUDI 09 kit. Connect the following wires to the car: Interface wires Connect to car...
- Page 5 09/18/15 NTV-DOC165 8. Connect the AV Input cable to the port on the AUDI 09 interface labeled ‘AV IN/OUT’. If you’re only connecting a reverse camera (and no other inputs), the signal input from the camera must connect to the RCA labeled ‘REAR-C’. Refer to the dip- switch settings chart to skip/enable AV sources upon toggle switch presses (optional.
- Page 6 09/18/15 NTV-DOC165 Menu Adjustments Before you start: Make sure the car’s ignition is on and radio is booted/settled You must be in ‘NAVI’ (RGB), ‘AV1’, ‘AV2’ or ‘AV3’ mode (on display screen) Use the remote ‘OK’ button to switch modes, or use the provided input toggle switch ...
- Page 7 09/18/15 NTV-DOC165 FAQs Q. I cannot switch A/V sources. A. Check IR or toggle switch connection. Check the LEDs on the interface, if nothing is lit up with vehicle ignition, check power/ground connections. Q. All I see on the display is a black screen (no factory image pass-through). A.
