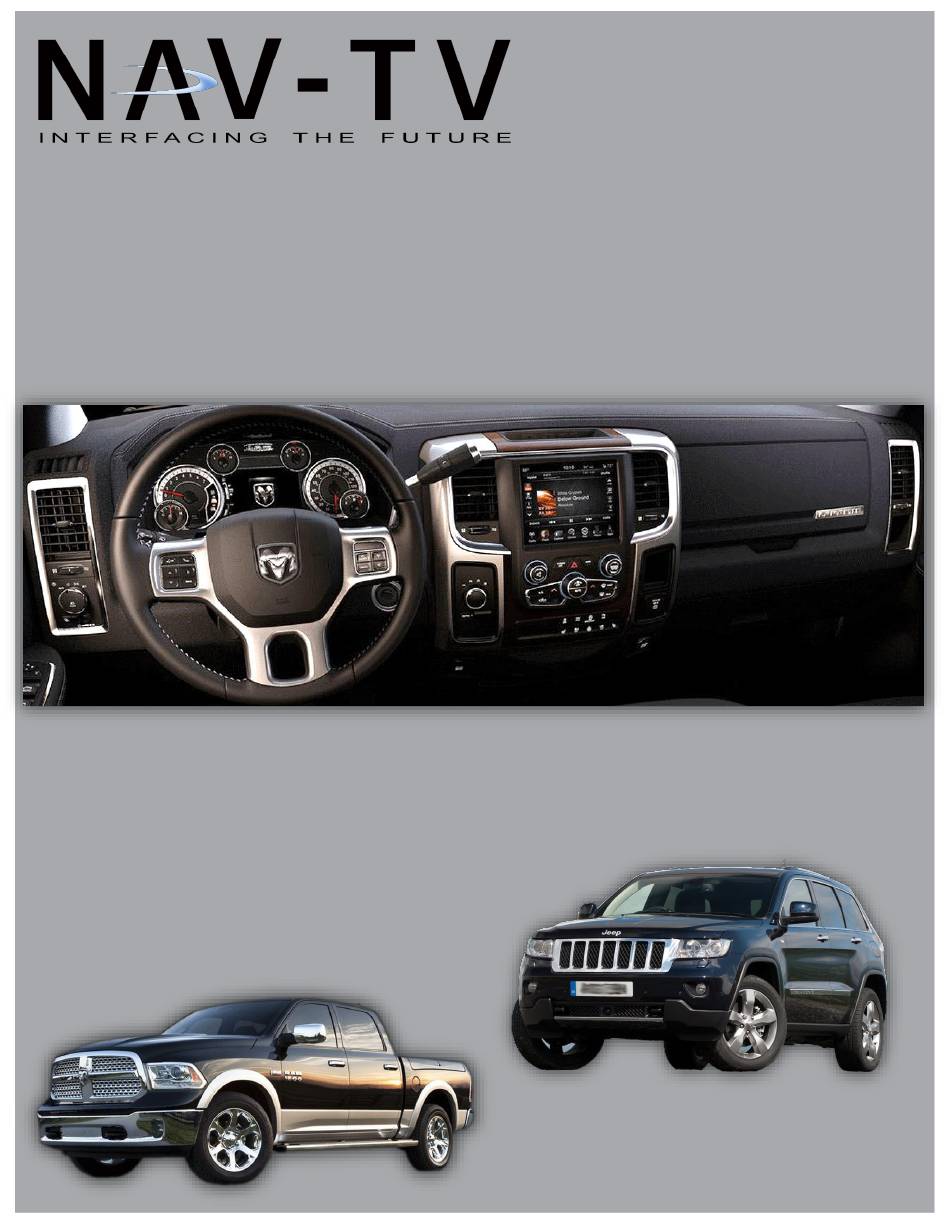

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 CHRY UNI-CAM Chrysler/Dodge/Jeep uConnect (RA4) Camera/CIM Interface NTV-KIT576 asdf 02/20/15 NTV-DOC202...
- Page 2 NTV-DOC202 Overview The CHRY UNI-CAM system interfaces an aftermarket camera to the factory 8.4” or 5” touch screen in compatible 2013+ Chrysler, Dodge and Jeep vehicles. Additionally, the user can force the camera to display on screen at any time, in any gear.
- Page 3 Blue Note: Vehicles equipped with a dot-matrix style cluster are only compatible with the CHRY UNI-CAM software file (supports rear-cam ONLY, no additional inputs) Note 2: Vehicles equipped with a monochrome screen are not full color LCD screens and are not compatible with the CHRY UNI-CAM at all.
- Page 4 02/20/15 NTV-DOC202 Dash Disassembly (RAM) 1. Remove the Torx t20 screw at the right rear of the pocket on the right side of the dash. 2. Remove (2x) Torx t20 at the top of the dash. They are hidden beneath a rubber mat. 3.
- Page 5 4. Connect the red and black RCAs together in the Plug & Play T-harness (otherwise, you’ll lose AUX audio) 5. Connect the CHRY UNI-CAM module to the 18-pin connector found in the Plug & Play T- harness. 6. Connect the monitor to the male side of the Plug & Play harness. Reconnect all other plugs to the monitor.
- Page 6 02/20/15 NTV-DOC202 CHRY UNI-CAM Operation Force rear camera: Press & hold (2 sec) Placing the vehicle in REVERSE will automatically transition the screen to display the connected camera’s image. Send 12v (through toggle) to INPUT 2 (Blue) CIM: Hold (3...
- Page 7 A2. Make sure the camera is getting sufficient power and the RCA is connected to the YELLOW RCA behind the screen, NOT to the RCA on the CHRY UNI-CAM. Q3. The camera image is displayed properly when the vehicle is in reverse, but there’s only a black/blue screen when the camera is forced.
