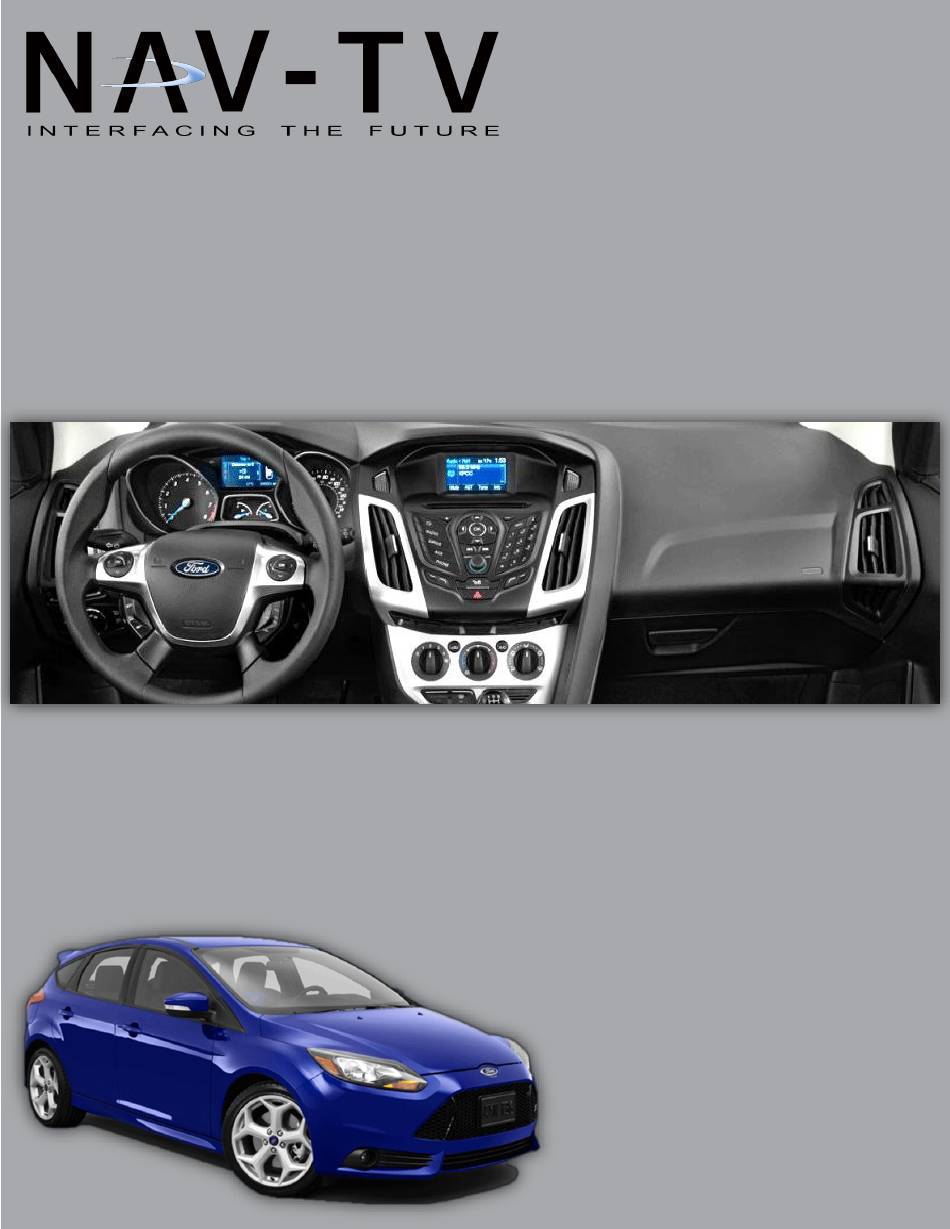

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 Ford 4” UNI-CAM Dual rear-camera integration kit for Ford 4” screens NTV-KIT600 05/01/15 NTV-DOC211...

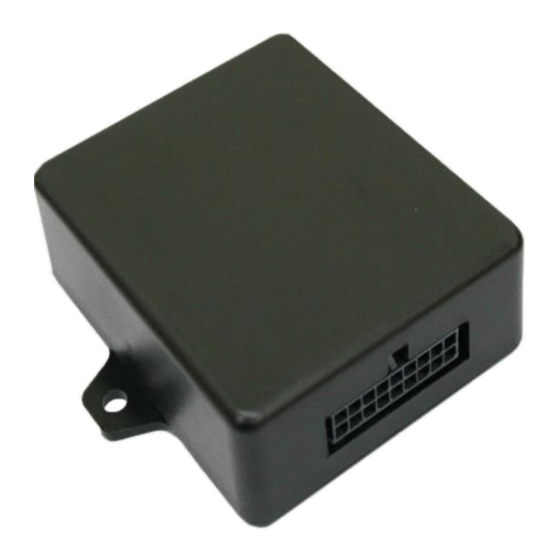

- Page 2 05/01/15 NTV-DOC211 Overview The Ford 4” UNI-CAM kit interfaces an aftermarket rear camera into Ford vehicles equipped with the OEM 4” media screen. No dealership programming is required and all connections are made behind the factory screen. This kit is not currently plug &...
- Page 3 05/01/15 NTV-DOC211 Module Installation 1. Remove the 4” media screen from the dashboard, above the CD player. 2. With the 4” screen disconnected and out of the dash, examine the 12-pin connector that connects to the screen. a. Remove the cover by prying with a small flat/straight pic or similar method.
- Page 4 05/01/15 NTV-DOC211 8. After installing and running your reverse camera to the dash opening, connect your RVC signal to the connected RCA (from step 6). Power your camera with an ACC source if planning to use the force camera feature. 9.
- Page 5 05/01/15 NTV-DOC211 Installation Diagram Refer to page 3, step 4 for specific wiring instructions NOTES: Any wires not shown here are not needed for this installation. Not all wires shown here will be used for every installation. If installing ONLY rear camera, you may connect signal directly to the...
- Page 6 05/01/15 NTV-DOC211 Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
