- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 MOST-H.U.R. Porsche Head Unit Replacement Interface NTV-KIT155/210 JR, BM 10/18/18 NTV-DOC137...

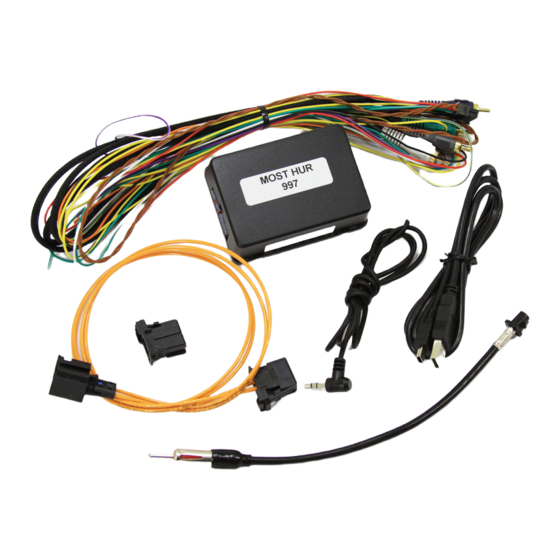

- Page 2 JR, BM 10/18/18 NTV-DOC137 Overview The MOST-HUR (Head Unit Replacement) allows the user to install a feature-rich aftermarket radio while retaining the factory amplifier and converting audio signal to the factory fiber optic system. This is the fastest and easiest way to upgrade sound quality and features without performing “major surgery”...
-
Page 3: Installation
JR, BM 10/18/18 NTV-DOC137 Module Pin outs Wire side Pin # Description Color Connects to: 12v Ignition/ACC Yellow Vehicle Ignition Left Front Audio IN White RCA Radio, Left Front RCA OUT Rear Common Shield Green/Purple RCA Radio, Rear RCA Common Left Rear Audio IN Green RCA Radio, Left Rear OUT... - Page 4 JR, BM 10/18/18 NTV-DOC137 4. Connect the male end of the fiber-optic extension cable to the MOST HUR module. 5. Connect interface harness to proper wires using the wire chart provided on pages 3 & 5. Note: not all connections are necessary for every install, some wires may be optional.
- Page 5 JR, BM 10/18/18 NTV-DOC137 Basic MOST-HUR connection diagram *Steering Wheel Controls: Some radios are controlled by a single wire (Kenwood) Some radios are controlled via 3.5mm plug. For these radios, connect the supplied 3.5mm jack wire (center lead) to the White (IR OUT) wire and plug male end into radio IR port.
- Page 6 JR, BM 10/18/18 NTV-DOC137 Connector Description HUR wire color Vehicle wire color 12v ACC/Ignition Yellow Not Available, connect at fuse box CAN HI Brown/Red Orange/Purple or Yellow/Blue Ground (-) Black Brown CAN LO Brown Orange/Brown or Black/Blue NOTE: If the head unit being used has high-level pre-amp outputs (greater than 2 volts), you may need to create voltage dividers or use an LOC in line to prevent distortion at higher volumes.
