Notes regarding the service instructions

1 Notes regarding the service instructions
The electric wiring of the devices must be completed by a specialist in accordance with all applicable national and local regulations. The
Master/Slave operation must be installed by authorised personnel of Reflex Winkelmann GmbH.
Note!
Thoroughly read these instructions and follow them during installation.
2

Models

The Master/Slave operation is a software expansion of these device controllers:
• Control Basic
• Control Touch
These devices can be expanded with Master/Slave operation:
• Variomat
• Variomat Giga
• Reflexomat
3

Overview

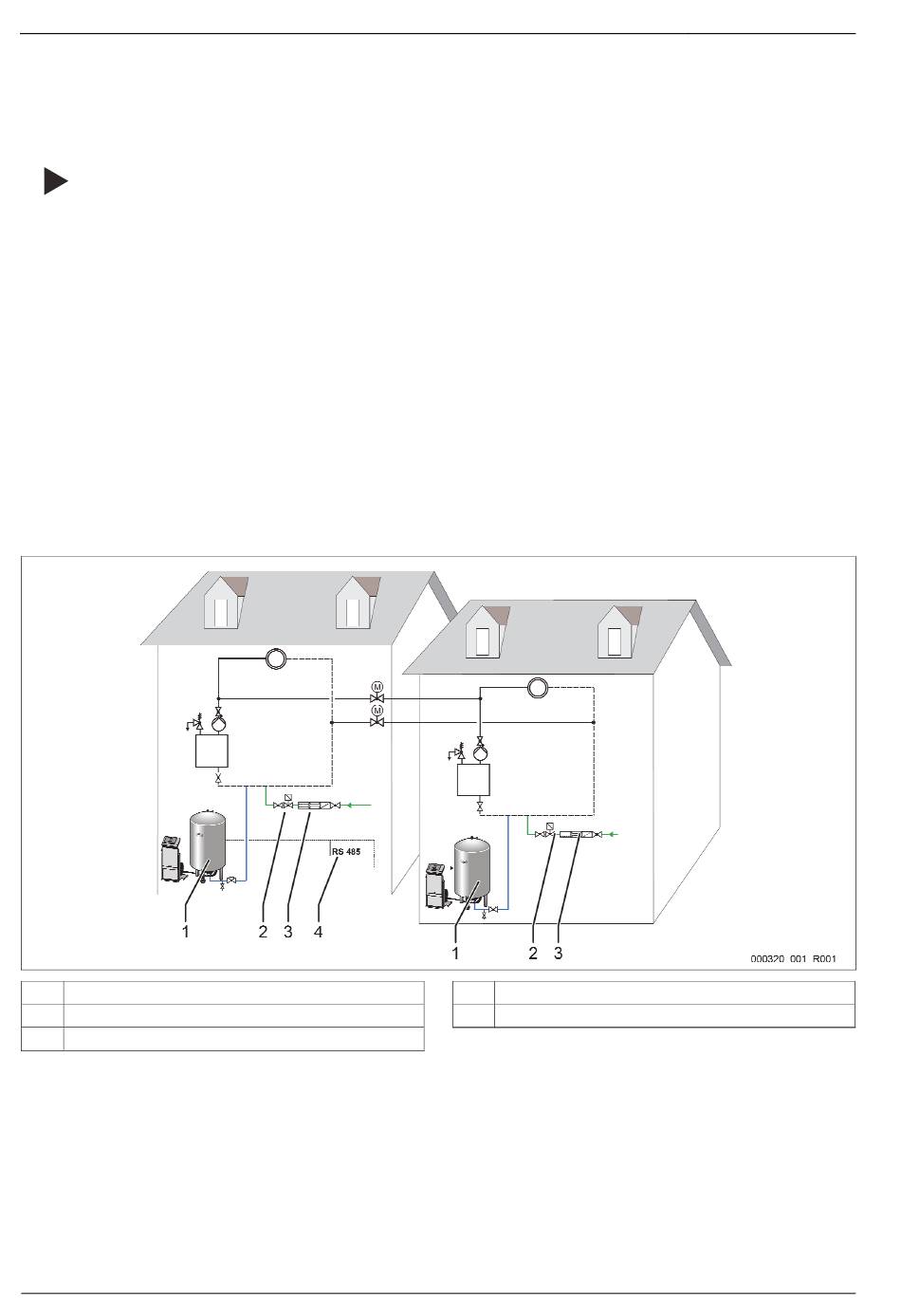

Exemplary representation of two devices in Master/Slave operation.
1 Device
2 Solenoid valve with ball valve
3 Make-up system
One unit assumes the function of the master. The other unit becomes the slave. Unit level values are transmitted via the RS-485 signal
line. The master unit controls pressure maintenance in both units.
4 — English
4
M
Master/Slave Operation — 24.09.2015
RS-485 signal line
Motor ball valve in overflow line
