Controller
5.1.2

Control Touch

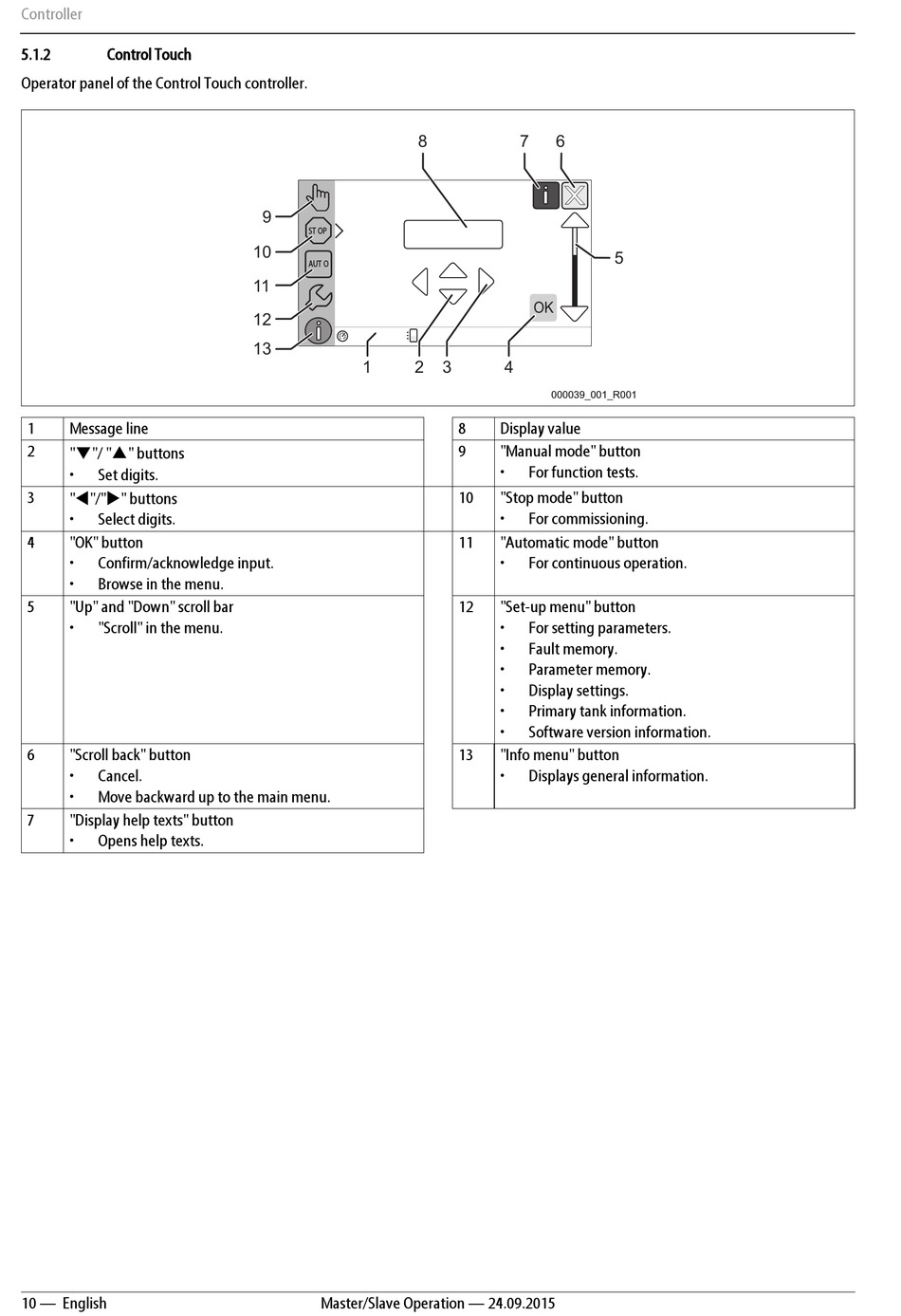

Operator panel of the Control Touch controller.
1 Message line
2
"▼"/ "▲" buttons
• Set digits.
3
""/"" buttons
• Select digits.
4 "OK" button
• Confirm/acknowledge input.
• Browse in the menu.
5 "Up" and "Down" scroll bar
• "Scroll" in the menu.
6 "Scroll back" button
• Cancel.
• Move backward up to the main menu.
7 "Display help texts" button
• Opens help texts.
10 — English
8
9
ST OP ST OP
10
AUT O AUT O
11
12
13
1 2
Master/Slave Operation — 24.09.2015
7 6
OK
3 4
000039_001_R001
8 Display value
9 "Manual mode" button
• For function tests.
10 "Stop mode" button
• For commissioning.
11 "Automatic mode" button
• For continuous operation.
12 "Set-up menu" button
• For setting parameters.
• Fault memory.
• Parameter memory.
• Display settings.
• Primary tank information.
• Software version information.
13 "Info menu" button
• Displays general information.
5
