5

Controller

5.1

Operator panel

5.1.1

Control Basic

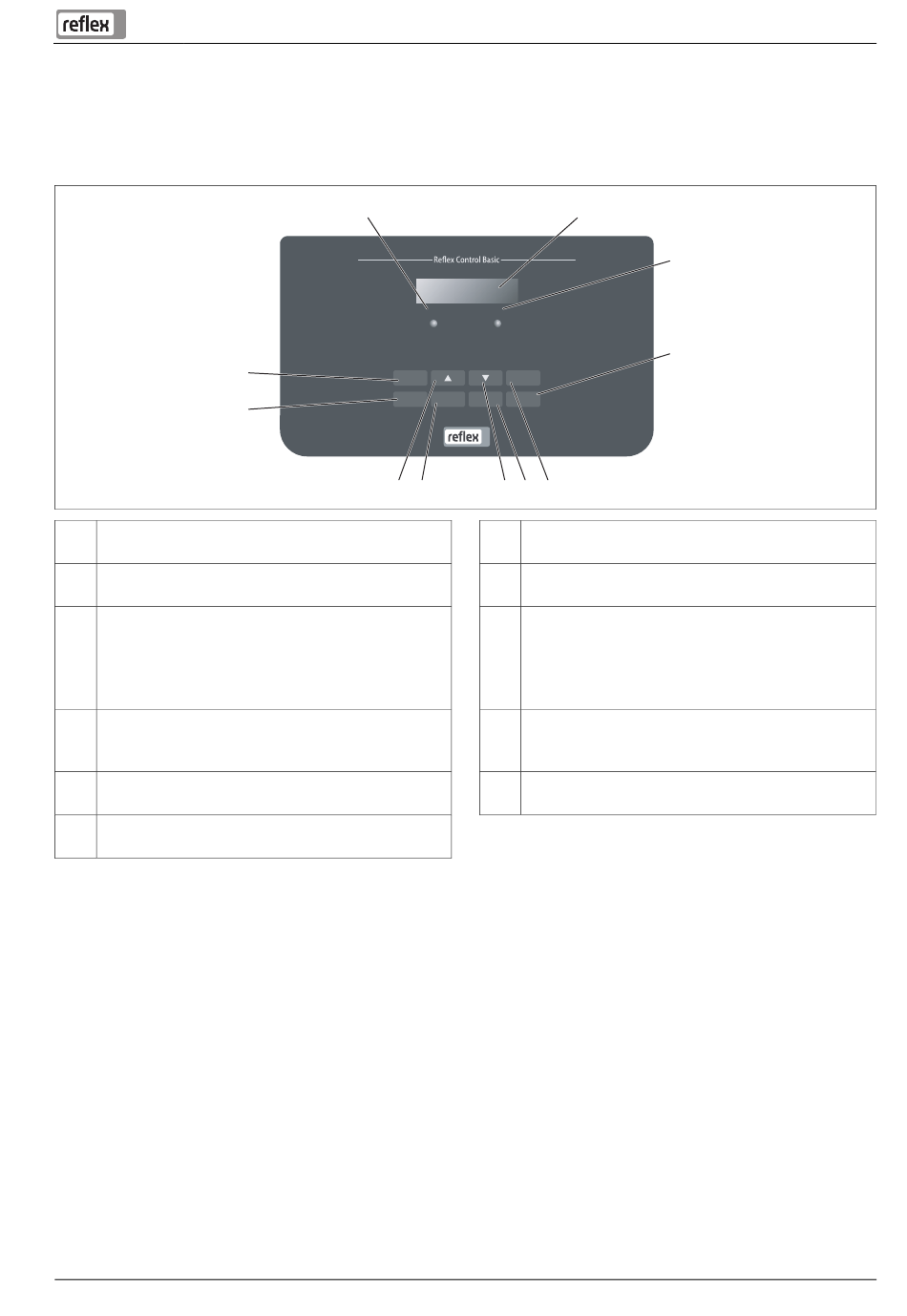

Operator panel of the Control Basic controller.
1 Error LED
• The Error LED illuminates in the event of a fault
2 Display
3 Auto LED
• The Auto LED illuminates green in Automatic mode
• The Auto LED flashes green in Manual mode
• The Auto LED is not illuminated when the system is
stopped
4 Stop
• For commissioning and entry of new values in the
controller
5 OK
• Confirm actions
6 Manual
• For tests and maintenance tasks
Selecting and changing parameters
1. Use "OK" (5) to select the parameter.
2. Use the "▼" (7) or "▲" (9) arrow keys to change the parameter.
3. Use "OK" (5) to confirm the parameter.
4. Use the "▼" (7) or "▲" (9) arrow keys to switch to a different menu option.
5. Use "Quit" (11) to switch to a different menu level.
1
11
10
9 8
Master/Slave Operation — 24.09.2015
2
Error Auto
Qui t Ok
Menu Auto Stop
Manual
7 6 5
7 "Back" to the previous menu
8 Auto
• For continuous operation
9 "Forward" to the next menu
10 Menu
• Call up the Customer menu
11 Quit
• Acknowledge messages
Controller
3
4
000088_001_R001
English — 9
