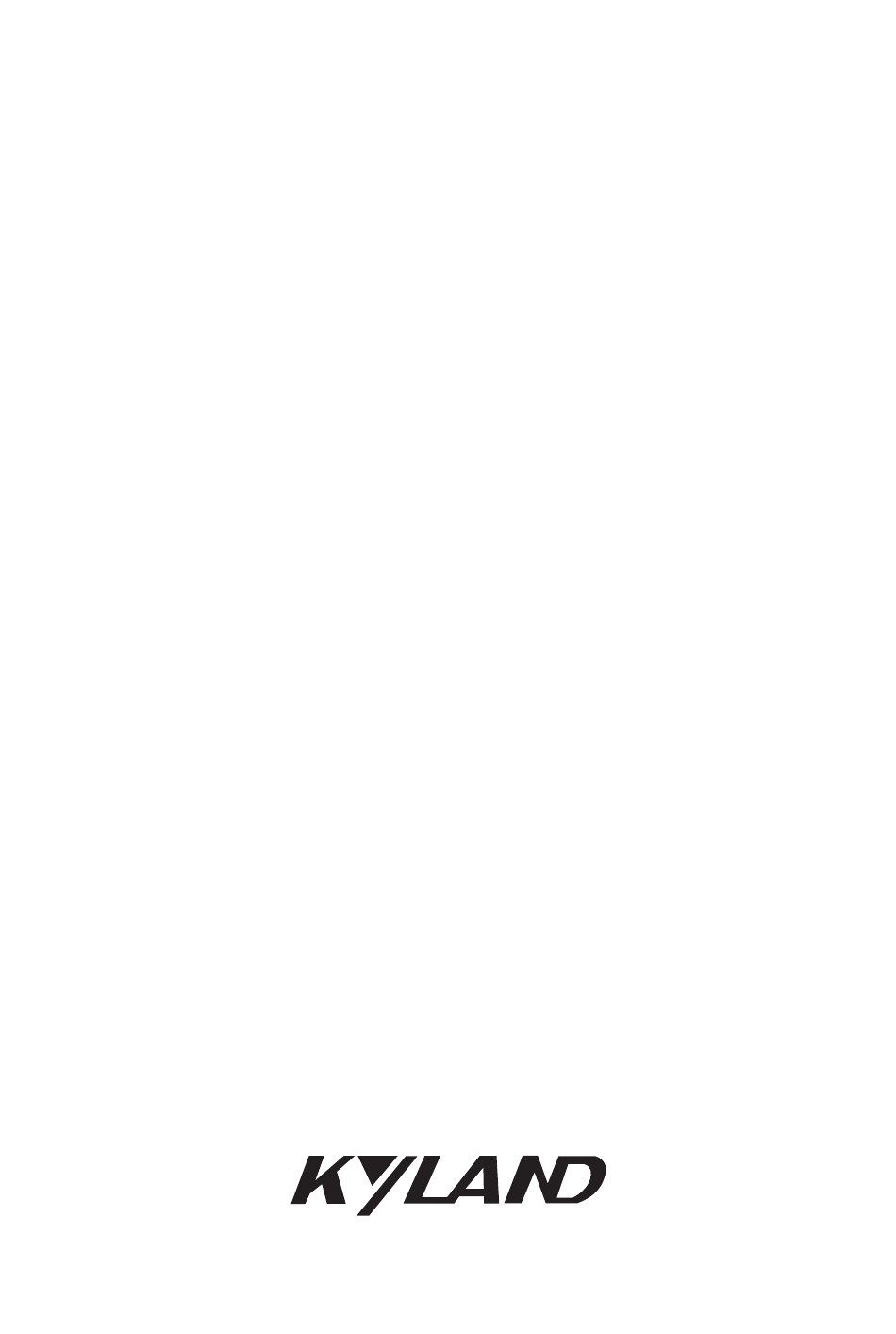

- Page 1 Aquam5/Aquam8 Series Industrial Ethernet Switches Hardware Installation Manual Publication Date: Jan. 2016 Version: V1.1 No.: 112023037...
- Page 2 Aquam5/Aquam8 Series Industrial Ethernet Switches Hardware Installation Manual Disclaimer: Kyland Technology Co., Ltd. tries to keep the content of this manual as accurate and as updated as possible. This document is not guaranteed to be error-free, and we reserve the right to amend it without notice to users.
- Page 3 Before using the device, read this manual carefully for personal and equipment safety. Please keep the manual for further reference. Kyland is not liable to any personal or equipment damage caused by violation of this notice. ● Do not place the device near water sources or damp areas. Keep the ambient relative humidity within the range from 5% to 95% (non-condensing).
- Page 4 ● Dispose of the device in accordance with relevant national provisions, preventing environmental pollution. In the following cases, please immediately shut down your power supply and contact your Kyland representative: ● Water gets into the equipment. ● Equipment damage or shell damage.
-
Page 5: Table Of Contents
Contents 1 Product Overview…………………………………………………………………1 2 Structure and Interface……………………………………………………………2 3 Mounting……………………………………………………………………………3 3.1 Dimension Drawing…………………………………………………………3 3.2 Mounting Modes and Steps…………………………………………………3 4 Connection………………………………………………………………………5 4.1 10/100Base-T(X) Ethernet Port…………………………………………5 4.2 Grounding…………………………………………………………………7 4.3 Power port…………………………………………………………………7 5 LEDs………………………………………………………………………………9 6 Basic Features and Specifications………………………………………… …9... -
Page 6: Product Overview
1 Product Overview Aquam5/Aquam8 includes a series of high-performance industrial Ethernet switches developed by Kyland. The series devices are applicable to the industrial field of various harsh environment with strict requirements on reliability due to the solid closed housing, fanless but heat dissipation-capable single-rib shaped chassis, overcurrent, overvoltage for power input, sound EMC protection of M12 ports, and IP67 protection class. -
Page 7: Structure And Interface

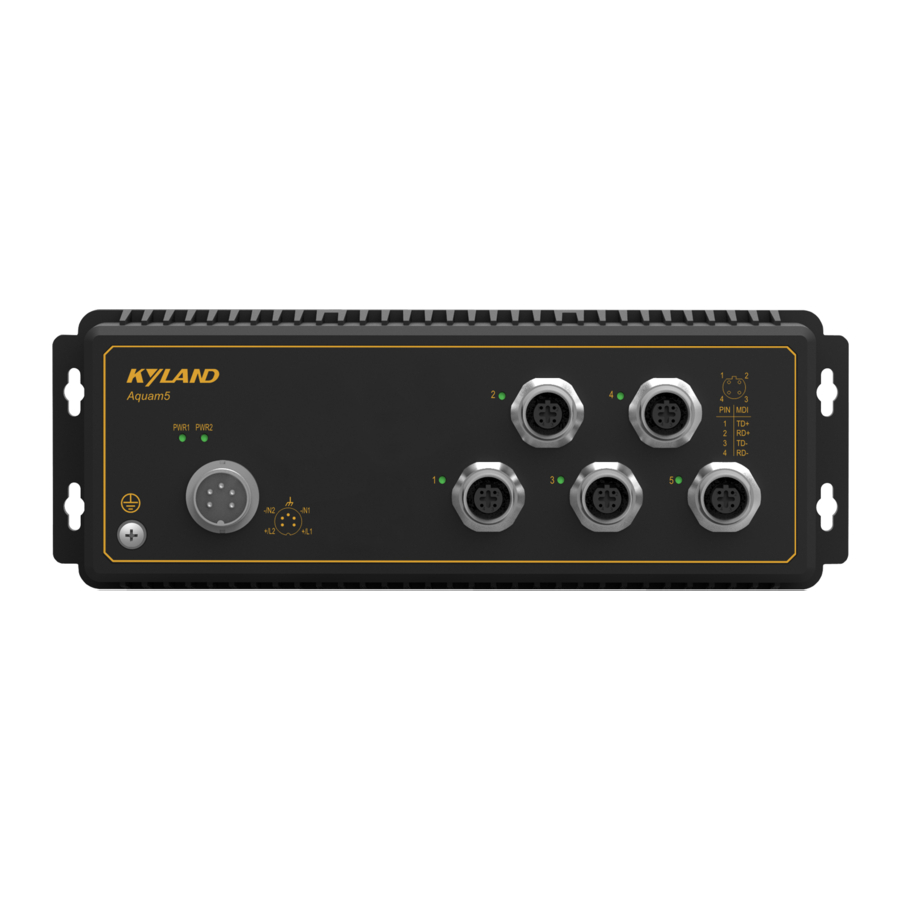

2 Structure and Interface Caution: It is recommended to purchase the port dustproof shield (optional) to ● keep ports clean and ensure switch performance. If the equipment is used in a manner not specified by the manufacturer, ● the protection provided by the equipment may be impaired. Front Panel ●... -
Page 8: Mounting
3 Mounting 3.1 Dimension Drawing 199.4 38 12.9 Figure 2 Dimensions (unit: mm) Caution: As part of the heat dissipation system, the switch housing becomes ● hot during operation. Please use caution when coming in contact and avoid covering the switch housing when the switch is running. The figures in this manual are only for reference. - Page 9 6) Devices should be installed and accessed by service personnel or users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken. Mounting ● Step 1: Select the mounting position (on a inner wall of a cabinet) for the device and guarantee adequate space and heat dissipation.
-
Page 10: Connection
Caution: Cut off the power and disconnect all cables before mounting, dismounting or moving the equipment. 4 Connection 4.1 10/100Base-T(X) Ethernet Port 10/100Base-T(X) Ethernet port is equipped with M12 connector, which is dustproof, waterproof, and anti-vibration. The port is self-adaptive. It can automatically configure itself to work in 10M or 100M state, full or half duplex mode. - Page 11 Table 2 Pin Definitions of M12/RJ45 Port Wiring Sequence ● Facing the A direction Facing the B direction Straight-through cable M12 RJ45 Orange and White Green and White Orange Green Cross-over cable Green and White Orange and White Green Orange Figure 7 Connection Using Straight-through/Cross-over Cable...
-
Page 12: Grounding
Note: The color of the cable for RJ45 connector meets the 568B standard: ● 1-orange and white, 2-orange, 3-green and white, 4-blue, 5-blue and white, 6-green, 7-brown and white, and 8-brown. The 1 and 3, 2 and 4 pins on the M12 interface are differentiated ●... - Page 13 Pin Definition ● Figure 8 Power Port (male) Table 3 Pin Definitions of Power Port Wiring and Mounting ● Step 1: Ground the device properly according to section 4.2. Step 2: Insert one end of the power cable into the M12 connector firmly. Step 3: Insert the M12 connector with the connected cable into the power port on the device.
-
Page 14: Leds
5 LEDs Table 4 Front Panel LEDs 6 Basic Features and Specifications 24VAC/DC(18-30VAC, 50/60Hz; 18-30VAC/9-60VDC 12-48VDC) 4.6W (MAX) 220mm×74mm×38mm 0.75Kg Fastening Cover 0.3 N•M Version Torque Fastening Connector 1.3 N•M Nut Torque Ambient Temperature Storage Temperature Ambient Relative Humidity Altitude 2000m Pollution Degree 4381030h... - Page 16 FAX: +86-10-88796678 Website: http://www.kyland.com Email: support@kyland.com For more information about KYLAND products, please visit our website: http://www.kyland.com...
