Sound Editor

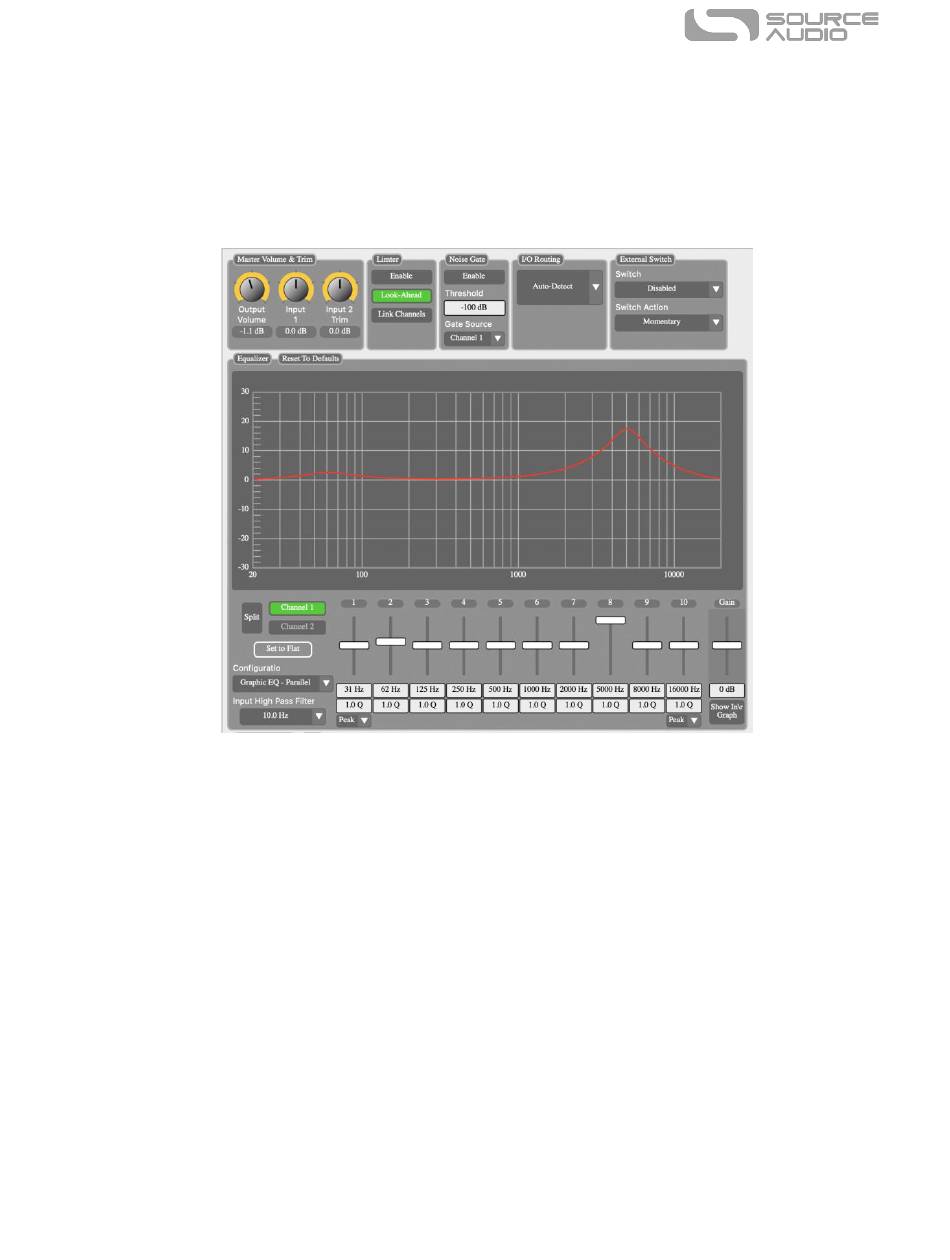

Upon clicking the wrench icon in the Connections section, the EQ2 Programmable EQ's Sound Editor
interface appears in a tab in the center panel. This is where all of the sound editing work takes place.
The Sound Editor is broken into several sub-sections, each containing a unique variation of virtual
knobs and dropdown menus. The following is a brief explanation of each Sound Editor sub-section.
Equalizer
This powerful tool contains most of the key ingredients for sculpting your sound. The block is broken
into the following sub-groups:
•
Band Sliders: Each band from 1 to 10 is assigned a movable slider to boost or cut the
selected frequency by +/- 18dB.
•
Gain Slider: The channel gain, located to the right of the band sliders, is assigned to a
movable slider to boost or cut the gain by +/- 18dB.
•
Frequency Values: This field indicates the centerfrequency the band is currently set at. The
frequency can be changed by either clicking the box then dragging the cursor up and down,
or by double clicking and manually inputting a numeric value, then pressing the "Enter" key.
•
Q Values: This field indicates the current Q factor value, or bandwidth, the band is currently
set at. The default is 1.0. The Q can be changed by either clicking the box then dragging the
cursor up and down, or by double clicking and manually inputting a numeric value, then
pressing the "Enter" key.
