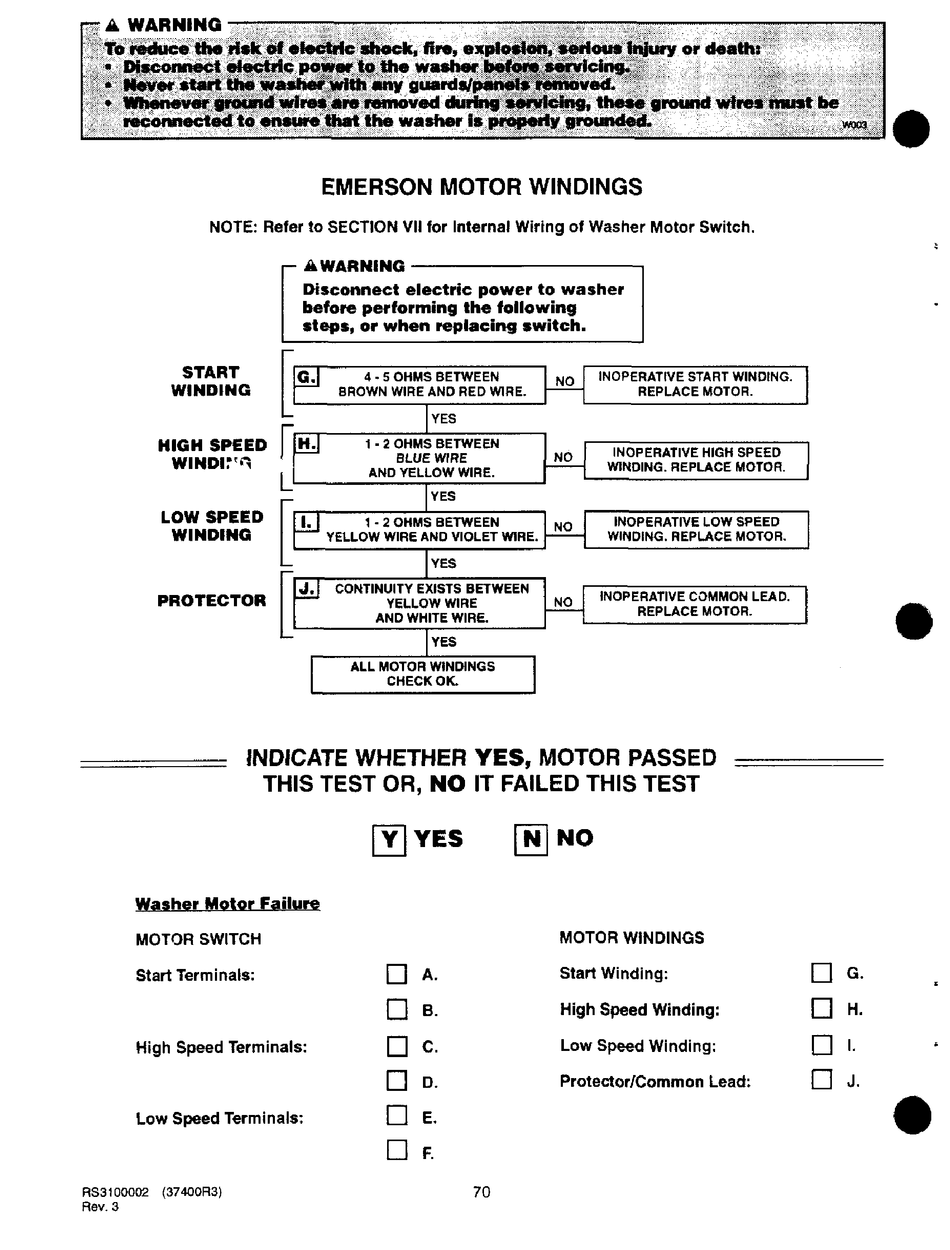

EMERSON MOTOR WINDINGS
NOTE: Refer to SECTION VII for Internal Wiring of Washer Motor Switch.
START
WINDING
HIGH SPEED
WIND1~''1
LOW SPEED
WINDING
A W A R N I N G - - - - - - - - - - - ,
Disconnect electric power to washer
before performing the following
steps, or when replacing switch.
4 • 5 OHMS BETWEEN
BROWN WIRE AND RED WIRE.
YES
1 • 2 OHMS BETWEEN
BLUE WIRE
AND YELLOW WIRE.
YES
1 • 2 OHMS BETWEEN
YELLOW WIRE AND VIOLET WIRE.
YES
INOPERATIVE START WINDING.
REPLACE MOTOR.
INOPERATIVE HIGH SPEED
WINDING. REPLACE MOTOR.
INOPERATIVE LOW SPEED
WINDING. REPLACE MOTOR.
[
J
CONTINUITY EXISTS BETWEEN
PROTECTOR
~·----Y-E-LL_o,...w_w_1R_E
_ _
~
_ AND WHITE WIRE.
INOPERATIVE COMMON LEAD.
REPLACE MOTOR.
YES
ALL MOTOR WINDINGS
CHECK OK.
INDICATE WHETHER YES, MOTOR PASSED
THIS TEST OR, NO IT FAILED THIS TEST
Washer Motor Failure
MOTOR SWITCH
Start Terminals:
High Speed Terminals:
Low Speed Terminals:
RS3100002 (37400R3)
Rev. 3
[!)YES
D
A.
D
B.
D
c.
D
D.
D
E.
D
F.
~NO
MOTOR WINDINGS
Start Winding:
High Speed Winding:
Low Speed Winding:
Protector/Common Lead:
70
D
G.
D
H.
D
I.
D
J.
