e. Disengage wire harness terminal block
plug(s) from timer by pressing in on movable
locking tabs (located on each side of
terminal block plug) and pulling away from
timer, Figure 8.
IMPORTANT: To avoid an open circuit, DO NOT
pull on terminal block wires when removing
blocks from timer as this could damage wires or
terminal crimping.
Before attaching wire harness terminal blocks to
timer, make sure all male terminals on timer are
straight and are capable of accepting terminals
from wire harness terminal blocks.
NOTE: When installing timer, make sure timer is
installed correctly and is securely mounted to
bracket on control hood, Figure 9.
f. Seat horizontal and vertical tabs on front
plate of timer completely into slots on
control hood mounting bracket.
g. Tighten attaching screws between 12 to 18
inch pounds (14 to 21 cm-kg).
IMPORTANT: To avoid timer damage, do not allow
tlme_r to be struck on corners, edges of frame, or
on timer shaft.
VERTICAL AND
HORIZONTAL
TABS
CONTROL HOOD
MOUNTING PLATE
7. TEMPERATURE SWITCH
a. Remove six screws (3 on top and 3 at lower
front) holding hood assembly to control hood
rear panel and cabinet top Figure 27.
b. Pivot hood assembly forward on cabinet top.
c. Disconnect wires from switch terminals.
NOTE: Refer to appropriate wiring diagram when
rewiring switch.
d. Refer to Figures 6 and 7 for switch
removal.
Through Serial No. 9511021617 -
Remove nut holding switch to control hood
mounting plate and remove switch out rear of
hood.
Starting Serial!'(.:>. 9511021618 -
Press in on two locking tabs and at the same
time turn the switch
~
/4 turn counterclockwise
to remove switch from control hood mounting
plate.
IMPORTANT: Before removing switch, note the
switch position in relation to control hood
mounting plate so switch can be reinstalled in
same position.
NOTE: When installing switch, place switch tabs
into cutout In mounting plate and turn switch
clockwise to its full limit of travel, within the
mounting plate opening, until both locking tabs
snap into place.
TIMER
ATTACHING
SCREWS
W206SE3B

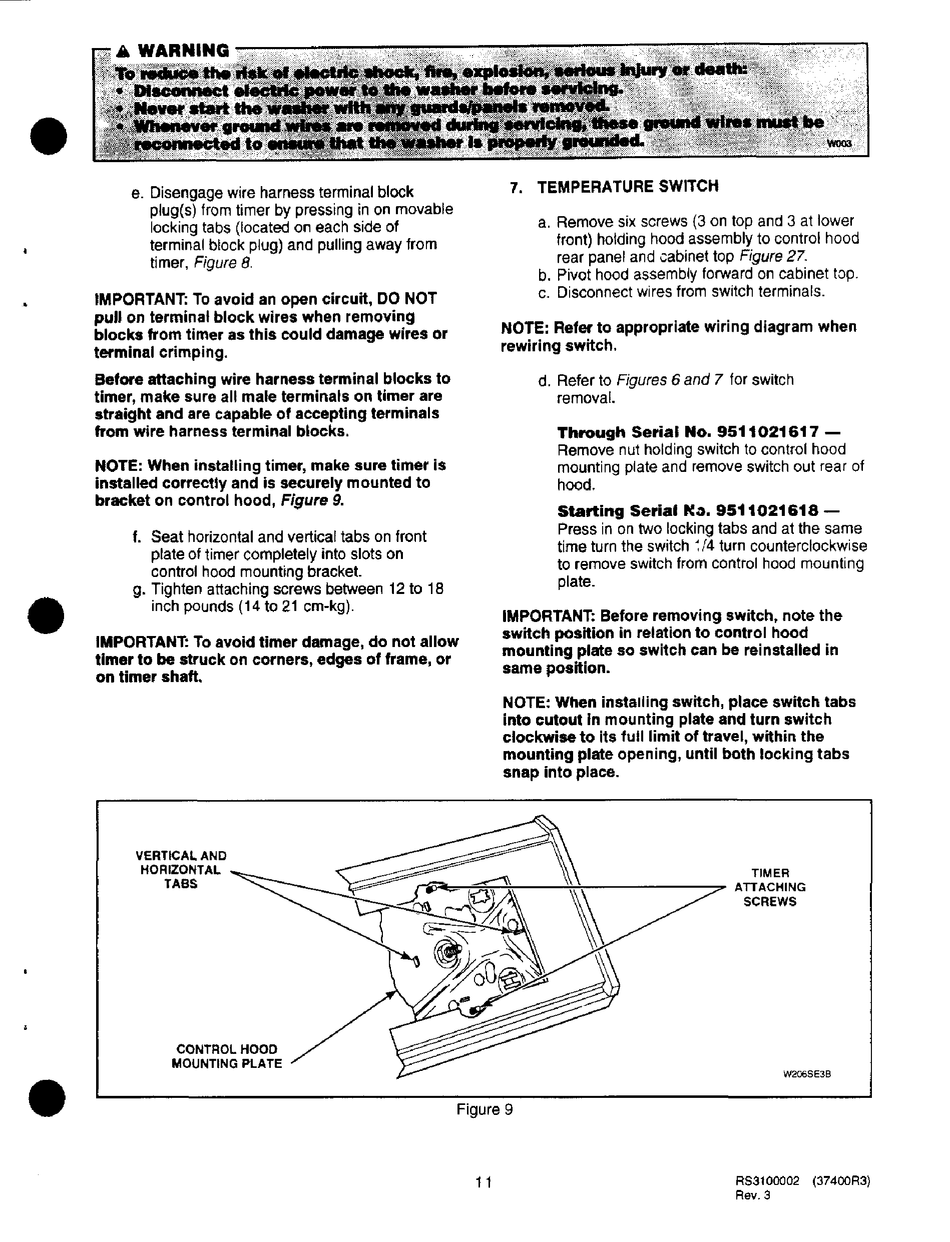

Figure 9
11 RS3100002 (37400R3)
Rev. 3
