A
Y#ARNIN~
. • ,:>i,1"•1(:
•
> . · . . . . . . . . · . · ... · . . · · • . . . . .
.ft:;: ..
>>
·.·.•.T..· .. ·.· .. ·.· ..
·.·.! . . .
·.·' " ' . ".JC•
t11 ....... · · . .
· . · . · . : . · . · . ! l l l · · · · · . · . ~
. .
··.:.·.4' i f . . . .
~
. . . · . · . · . · .. · . · . • •.· . . ·.·.··1".·.:c •. • . .
1r1 . . . . .
·.·.·.' . c.·.••·•.·.l!h ....
o e k , · . · . . . . •·.
11.
re, •.
x. P • . . · . . . • ... ·• . . · . . · ...
°"'. ..... ...
·.·.ou····· s ..
lftlwY . • . · .
.°'
c1e11.··.·.· . •
·.u.: •
•·"w;Discor;."18Ct .· •
,,.wer.t0: the
washer
bolllfON servicing.
· · · · · · •
' ..... ever start .... ,.,. ..
~ Wllti
any
guardll/plll'lels removed. . . • . • • . •
~~¥11werg~~ar.removed du~.servicing/these
a..-...wl
· :f'llC0""4'Cted to ensure
that the washer is
~ growtded.
q. Disconnect hose from bottom of outer tub.
r. Remove pressure hose from pressure bulb.
Then remove tape holding pressure hose to
outer tub, Figure 47.
s. Grasp outer tub and lift complete tub
assembly (with transmission, balance ring
and pivot dome attached) straight up and out
of washer cabinet
t Turn outer tub upside-down and set on
protective padding.
u. Remove screws and lockwashers holding
each support leg to outer tub, Figure 40. Then
lift transmission, balance ring and pivot dome
off tub.
NOTE: To prevent porcelain damage, leg plates
must be installed on outside of outer tub flange
when reinstalling support legs. Do not overti1;hten
screws as this could cause stripping or porcelain
damage. Torque screws between 90 to
~30
inch-
pounds (10.30 to 14.87 N-m).
LEG PLATE
BALANCE
RING
BRAKE
ASSEMBLY
v. Turn outer tub upright and remove
pressure bulb and grommet.
NOTE: When installing grommet into outer tub,
thicker lip of grommet must be installed to
outside of tub. Lubricate outer surface of large
opening of pressure bulb with liquid soap to aid
when assembling pressure bulb into grommet.
PIVOT
DOME
DRIVE
PULLEY
SCREW AND
LOCKWASHER
W195SE3A

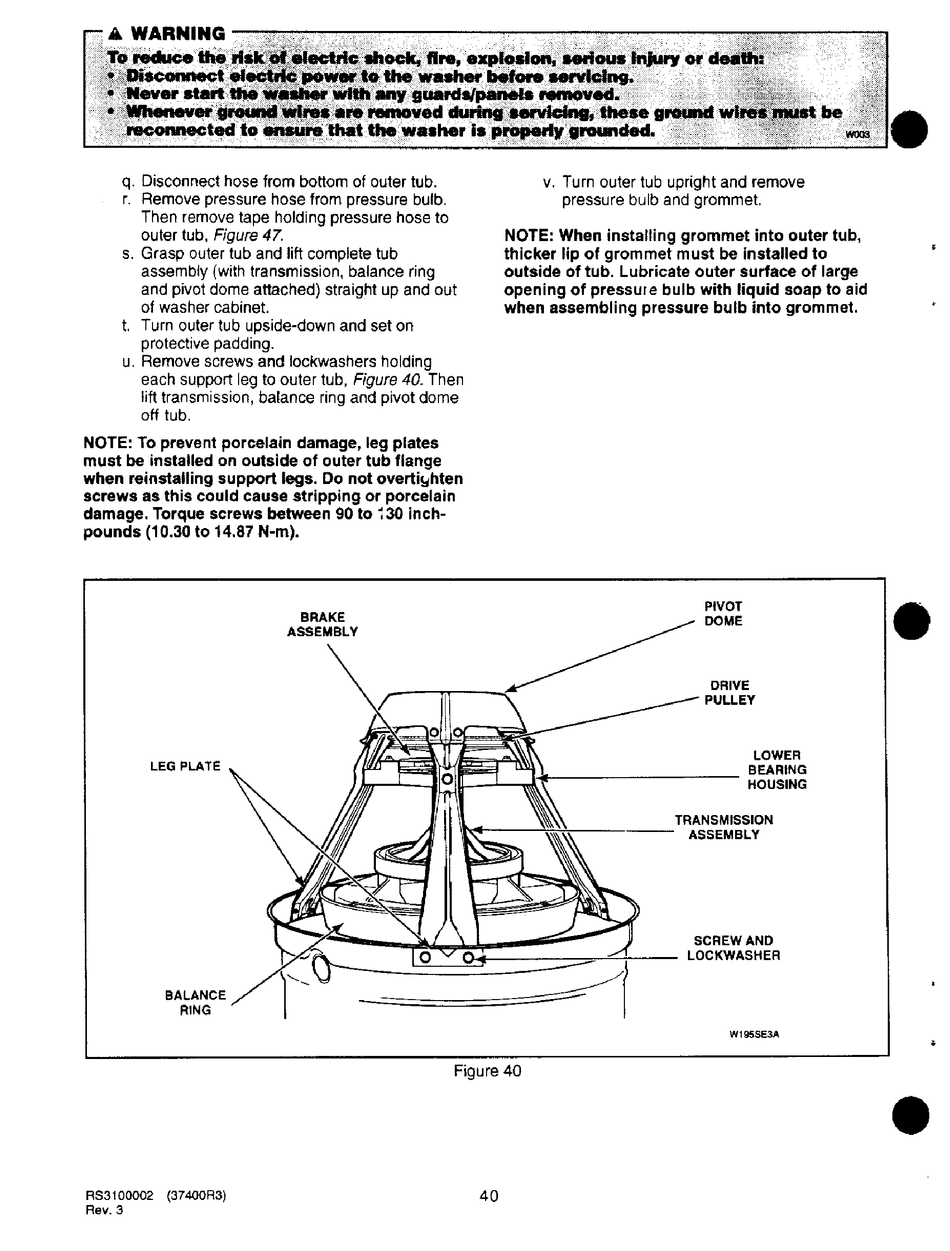

Figure 40
RS3100002 (37400R3)
Rev.3
40
