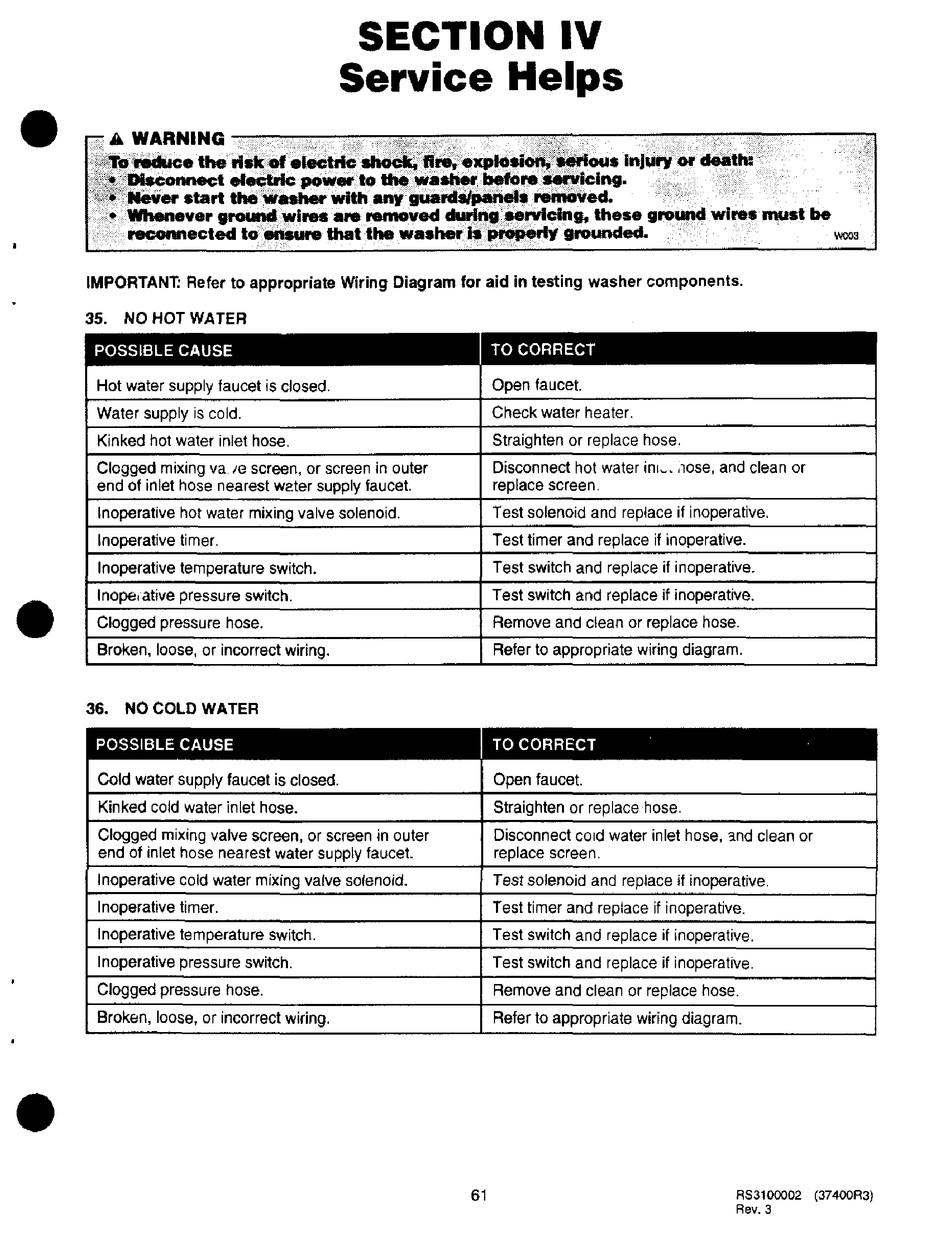

SECTION IV
Service Helps
. · A WARNING
··zy · ; .
;#t(oftiduce the risk
.of
elec:~ shOdGft..,.exptosi~'i~rlous Injury or d9ath:
•;}~~
iDlsconnect electrlc power to lhe washer. before ftnllcing.
'[,\ii' NeVer start the Washer with any guard9/panels remOved •
. • Whenever
ground wires are
removed
during .llervlcing. these
ground
wires must be
recotmected to
ensure
that
the washer ..
pl'Operly
grounded.
l'/003
IMPORTANT: Refer to appropriate Wiring Diagram for aid in testing washer components.
35. NO HOT WATER
POSSIBLE CAUSE
Hot water supply faucet is closed.
Water supply is cold.
Kinked hot water inlet hose.
Clogged mixing va
1e
screen, or screen in outer
end of inlet hose nearest w2ter supply faucet.
Inoperative hot water mixing valve solenoid.
Inoperative timer.
Inoperative temperature switch.
!nope. alive pressure switch.
Clogged pressure hose.
Broken, loose, or incorrect wiring.
36. NO COLD WATER
POSSIBLE CAUSE
Cold water supply faucet is closed.
Kinked cold water inlet hose.
Clogged mixing valve screen, or screen in outer
end of inlet hose nearest water supply faucet.
Inoperative cold water mixing valve solenoid.
Inoperative timer.
Inoperative temperature switch.
Inoperative pressure switch.
Clogged pressure hose.
Broken, loose, or incorrect wiring.
61
TO CORRECT
Open faucet.
Check water heater.
Straighten or replace hose.
Disconnect hot water
ini~
•• 1ose, and clean or
replace screen.
Test solenoid and replace if inoperative.
Test timer and replace if inoperative.
Test switch and replace if inoperative.
Test switch and replace if inoperative.
Remove and clean or replace hose.
Refer to appropriate wiring diagram.
TO CORRECT
Open faucet.
Straighten or replace hose.
Disconnect co1d water inlet hose, >nd clean or
replace screen.
Test solenoid and replace if inoperative.
Test timer and replace if inoperative.
Test switch and replace if inoperative.
Test switch and replace if inoperative.
Remove and clean or replace hose.
Refer to appropriate wiring diagram.
RS3100002 (37400R3)
Rev. 3
