&WARNINQ~~~~~--,.~~~~~~--,.~~~~~~~--,.--,.,...-~--,
tM
risk of
electric
lih~
fire,
exploisi~;iierlous
Injury
or death:
<
t electric power.to
the
_sher
b9foN
~ci"9·
.. · . •
7 . ..
.·.·.er start
the
w~her
Wltlf _,.'tuards/panils
~W.
. . . . . . . . . .
< (
·
·j:2~~erg~.ji!ires.,.
renlOYed during
~ici,.,;i
.....
t'!:"~,.-ires
must be
A
.,.connected·~~
. . . . .
thel
the washer is
IH'Ollerly
·~· y. .
>
W003 •
h. Disconnect hose from bottom of outer tub.
i. Remove pressure hose from pressure
bulb. Then remove tape holding pressure
hose to outer tub, Figure 47.
j. Grasp outer tub and lift complete tub module
assembly (with transmission, balance ring,
and pivot dome attached) straight up and out
of washer cabinet.
k. Turn complete tub module upside-down and
set on protective padding.
I. Remove screws holding three support legs
to pivot dome and remove dome,
Figure
40.
m. Remove screw, washer and helix holding
drive pulley to input shalt of transmission
assembly, Figure 41.
n. Lift drive pulley up and out from between tub
support legs.
NOTE: When reinstalling pulley, place a small
amount of No. 03200P Lubricant on top side of the
drive pulley that will
be
contacting large flat
washers. Lubricate helix ramps and bore with a
small amount of No. 03200P Lubricant,
Figure 42.
DRIVE
PULLEY
WASHER
IMPORTANT: DO NOT OVER LUBRICATE!
Excess lubricant can be thrown into pivot dome
area during normal washer operation. Any
lubricant on pivot dome or isolator will ca;,ise
premature tripping of the out-of-balance switch.
This condition will persist until lubricant is
removed.
CAP SCREW
HELIX
W1B2SE3A

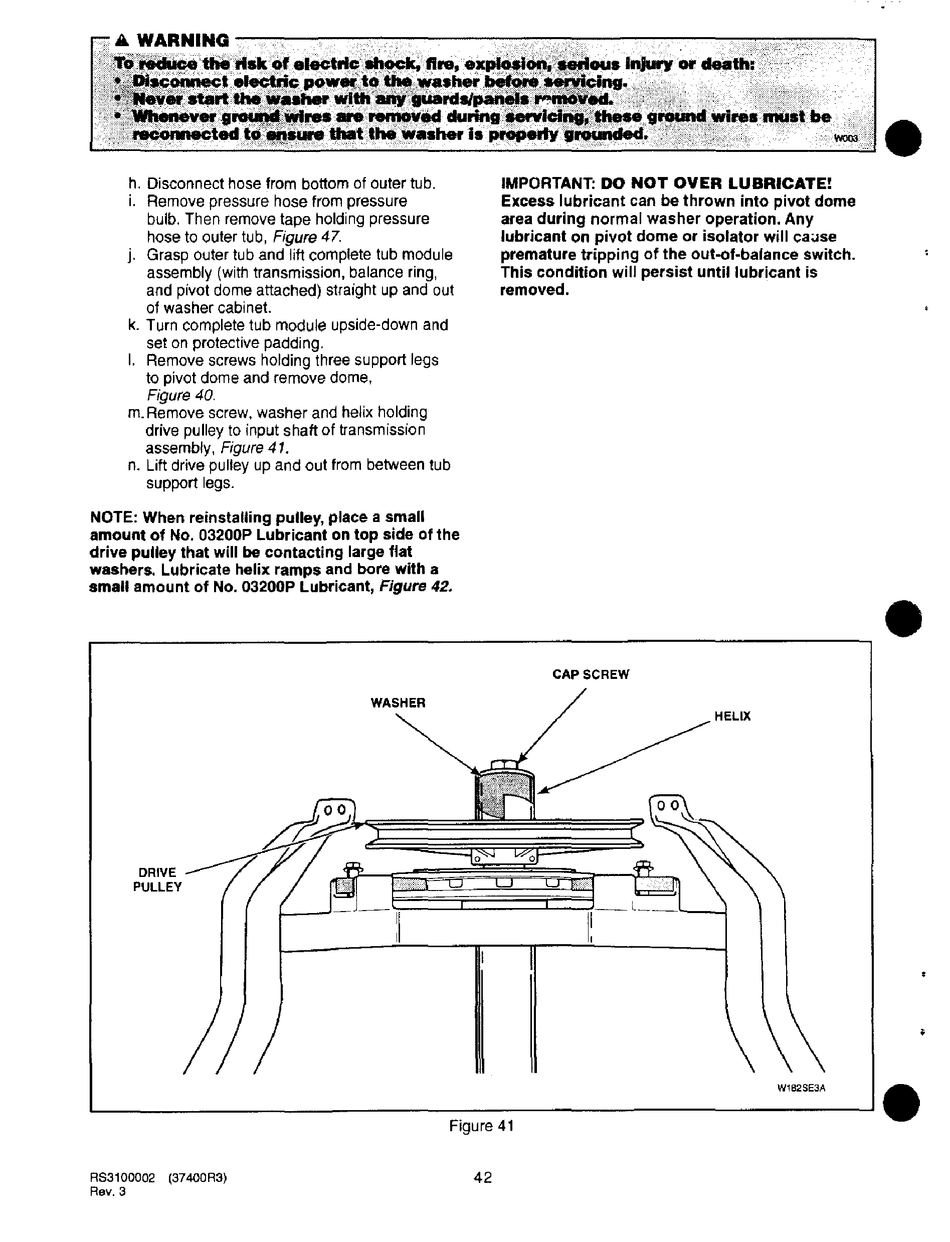

Figure 41
RS3100002 (37400R3)
Rev. 3
42
'
