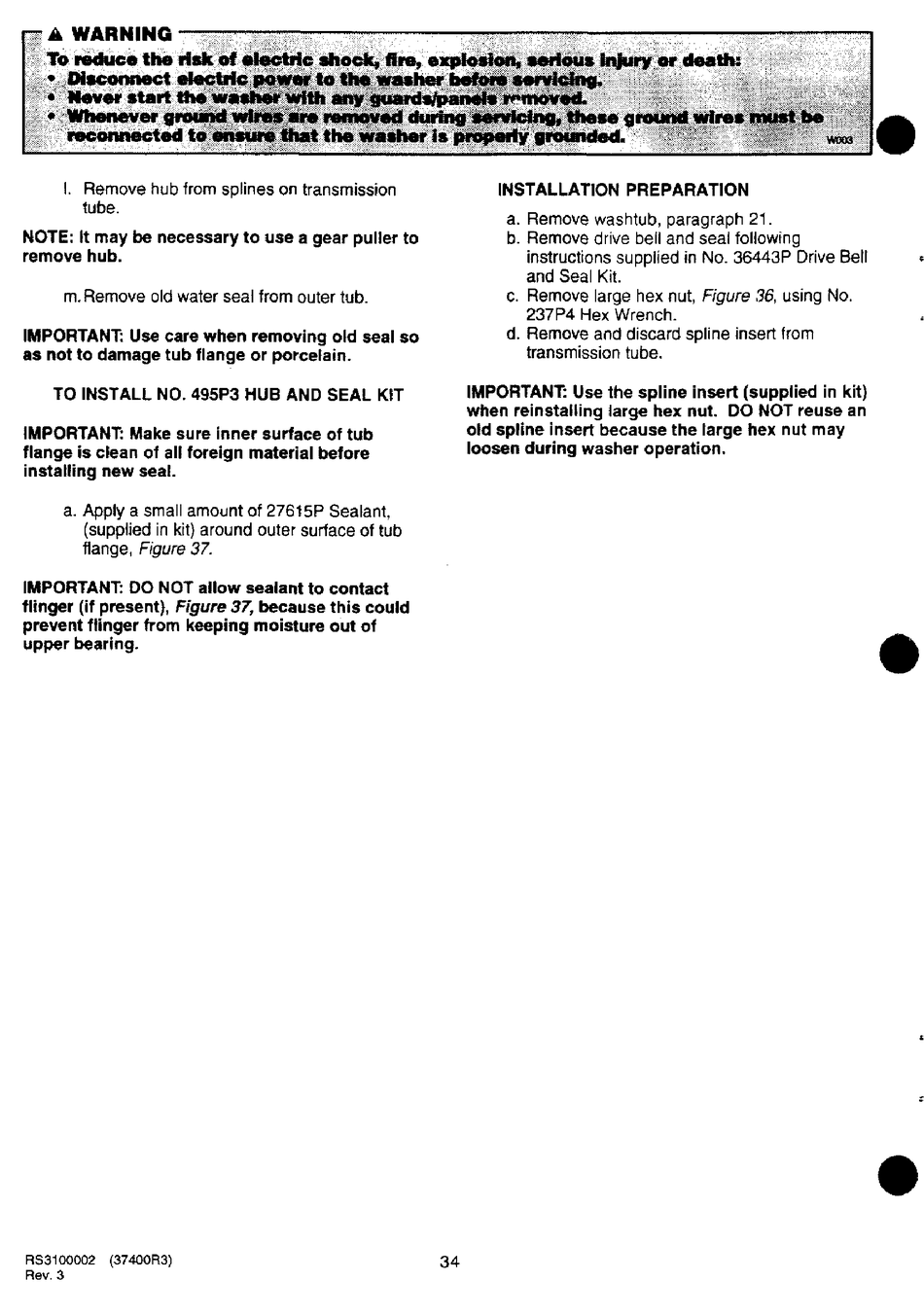

, .11. WARNING ---__,,..,,_..,,_--...,.----.....,,.,--.,..,,,,..,....._-----.,.--_..,..,.....--......,
~~
1NU11i ...
c1eau.= ..
I. Remove hub from splines on transmission
tube.
NOTE: It may be necessary to use a gear puller to
remove hub.
m. Remove old water seal from outer tub.
IMPORTANT: Use care when removing old seal so
as not to damage tub flange or porcelain.
TO INSTALL NO. 495P3 HUB AND SEAL KIT
IMPORTANT: Make sure inner surface of tub
flange is clean of all foreign material before
installing new seal.
a. Apply a small amount of 27615P Sealant,
(supplied in kit) around outer surface of tub
flange, Figure 37.
IMPORTANT: DO NOT allow sealant to contact
flinger (if present), Figure 37, because this could
prevent flinger from keeping moisture out of
upper bearing.
RS3100002 (37400R3)
Rev. 3
34
INSTALLATION PREPARATION
a. Remove washtub, paragraph 21.
b. Remove drive bell and seal following
instructions supplied in No. 36443P Drive Bell
and Seal Kit.
c. Remove large hex nut, Figure 36, using No.
237P4 Hex Wrench.
d. Remove and discard spline insert from
transmission tube.
IMPORTANT: Use the spline insert (supplied in kit)
when reinstalling large hex nut. DO NOT reuse an
old spline insert because the large hex nut may
loosen during washer operation.
'
