Amana NFW7200TW10 Parts List
Top and cabinet parts
Hide thumbs
Also See for NFW7200TW10:
- Use & care manual (52 pages) ,
- Installation instructions manual (25 pages)
Related Manuals for Amana NFW7200TW10
Summary of Contents for Amana NFW7200TW10
-
Page 1: Top And Cabinet Parts

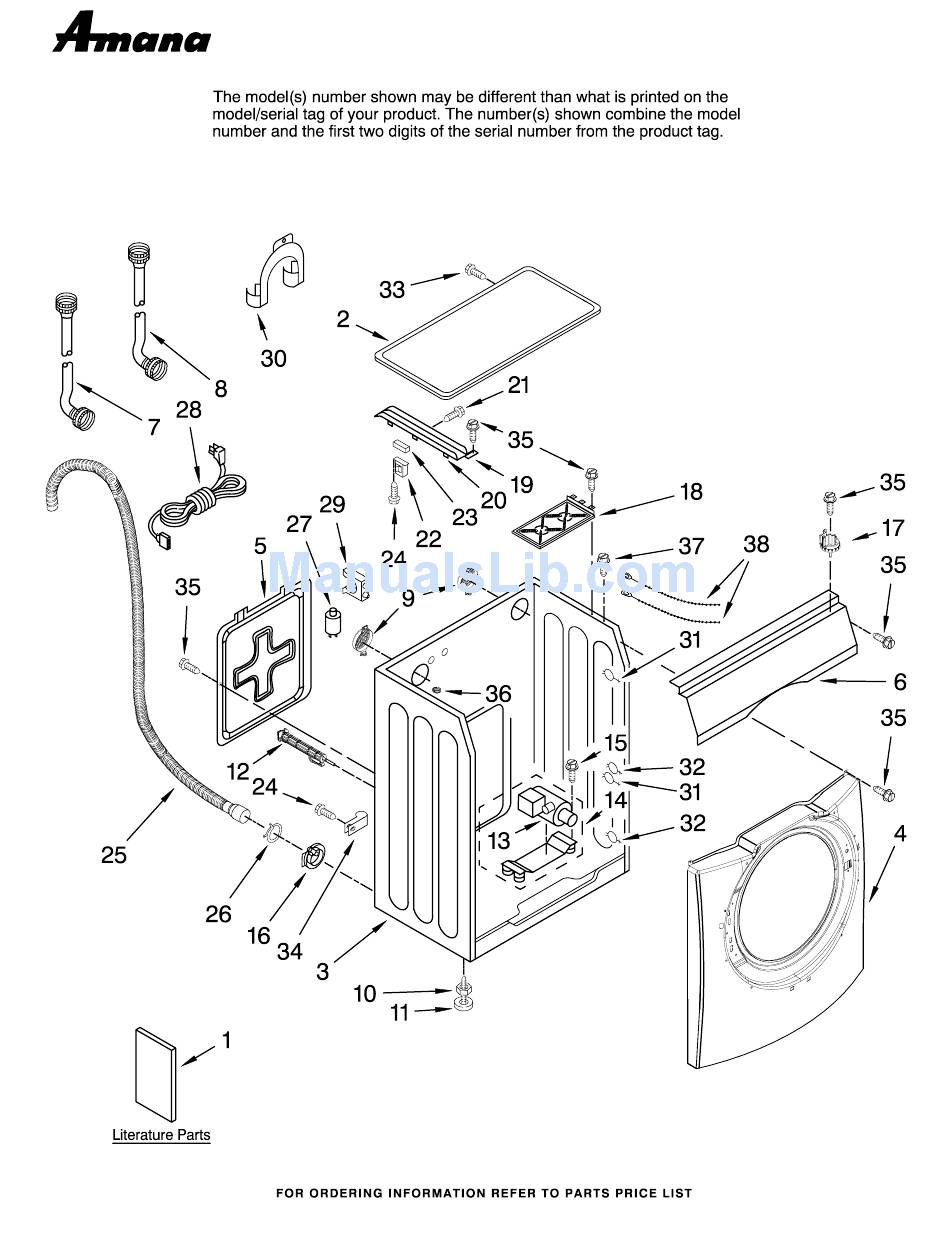

TOP AND CABINET PARTS AUTOMATIC For Model: NFW7200TW10 WASHER (White) 4−11 Printed in U.S.A. (drd)(bay) Part No. W10173400 Rev. A... - Page 2 TOP AND CABINET PARTS AUTOMATIC For Model: NFW7200TW10 WASHER (White) 4−11 Printed in U.S.A. (drd)(bay) Part No. W10173400 Rev. A...
- Page 3 TOP AND CABINET PARTS For Model: NFW7200TW10 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 34001161 Clamp, Hose 34001341 Foot, Leveling (4) Literature Parts 34001330 Filter, EMI 34001337 Bolt, Shipping (4) W10161022 Use & Care Guide 34001204 Cord, Power W10162408 Tech Sheet 34001340 Pump, Drain 34001331 Clip, Outer...
- Page 4 CONSOLE AND DISPENSER PARTS For Model: NFW7200TW10 (White) W10173400...
- Page 5 CONSOLE AND DISPENSER PARTS For Model: NFW7200TW10 (White) Illus. Part DESCRIPTION 1 W10175951 Panel, Console 2 W10175949 Knob, Control 3 W10175952 Button, Power 34001419 Lever, Power 34001231 Screw (5) 34001499 User Interface 34001131 Valve, Inlet (Hot Water) 34001151 Valve, Inlet (Cold Water) 34001109 Hose, Valve To Dispenser...
- Page 6 TUB AND BASKET PARTS For Model: NFW7200TW10 (White) W10173400...
- Page 7 TUB AND BASKET PARTS For Model: NFW7200TW10 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 34001271 Nut, Pulley 34001292 Shock Absorber 34001202 Thermistor 34001273 Washer, Spring (Rear) (2) 34001276 Counterweight, 34001406 Washer, Flat 34001303 Shock Absorber Front (2) 34001412 Pulley (Front) (2) 34001436 Hose,...
- Page 8 DOOR AND LATCH PARTS For Model: NFW7200TW10 (White) Illus. Part DESCRIPTION 34001306 Clamp, Bellow To Tub 34001432 Bellow 34001265 Lock, Door 34001251 Screw 34001266 Clamp, Bellow To Front Panel 34001259 Screw 34001260 Hook, Door 34001286 Screw (2) 34001192 Bushing, Hinge Guide (4) 34001426 Frame, Door Back Support 34001428 Bracket, Hinge...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) For Model: NFW7200TW10 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS Stack Kit, 27" MALE027AXX Electric Dryer MALG027AXX Gas Dryer 34001395 Cap, Fixer 34001223 Wrench, Spanner...
