Amana NFW7300W Dimension Manual

PRODUCT MODEL NUMBERS
NFW7300W
Electrical: A 120 volt, 60 Hz., AC only, 15- or 20-amp,
fused electrical supply is required. A time-delay fuse
or circuit breaker is recommended. It is recommended
that a separate circuit serving only this washer be
provided.
Drain System Options
Standpipe drain system - wall or floor (views A & B)
The standpipe drain requires a minimum diameter
standpipe of 2" (50 mm). The minimum carry-away
capacity can be no less than 17 gal. (64 L) per minute.
The top of the standpipe must be at least 30" (762 mm)
high and no higher than 96" (2.4 m) from the bottom
of the washer.
A.
30" min.
(762 mm)
Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal. (76 L)
capacity. The top of the laundry tub must be
at least 30" (762 mm) above the floor.
Floor drain system (view D)
The floor drain system requires a siphon break that
may be purchased separately. See "Tools and Parts."
The siphon break must be a minimum of 28" (710 mm)
from the bottom of the washer. Additional hoses might
be needed.
30" min.
(762 mm)
C.
For cabinet installation, with a door, the minimum
ventilation openings in the top are required.
7"
(178 mm) 7"
(178 mm)
31 1 /2 "
4"
(800 mm)
(102 mm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

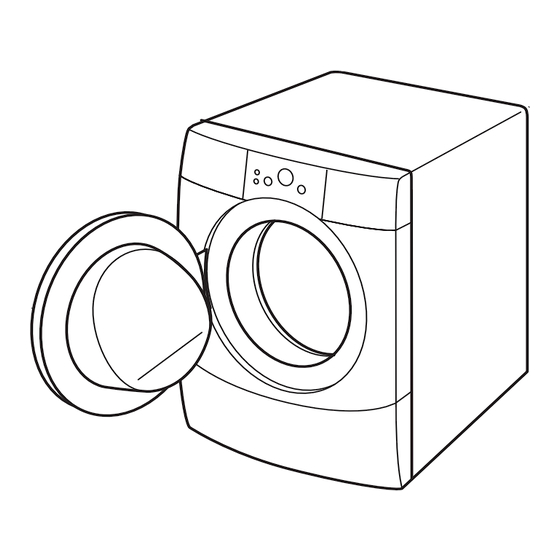

Front-Loading Automatic Washer
B.
Recessed or closet installation - Stacked washer and dryer
28" min.
(710 mm)
D..
9"
(229 mm)
1"
27"
(25 mm)
1"
(25 mm) (686 mm)

OVERALL DIMENSIONS

Washer dimensions
(686 mm)
50 / "
1
4
(1276 mm)
For closet installation, with a door, the minimum ventilation openings in the top
and bottom of the door are required. Louvered doors with equivalent air ventilation
openings are acceptable.
48 in.
2
48"
(310 cm )
2
(1220 mm)
24 in.
2
(155 cm )
2
1" 30 1 / " 4"
2
(25 mm) (102 mm)
(775 mm)
A
A - Recessed area
B - Side view - closet or confined area
*
48 in. 2
(310 cm 2 )
3"
(76 mm)
3"
(76 mm)
*
24 in. 2
(155 cm 2 )
12" (305 mm)
72"
(1829 mm)
5 1 / "** 1"***
4
(133 mm) (25 mm)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Custom undercounter installation-washer only
27"
2" (50 mm)
36" min.
(914 mm)
36"
(914 mm)
30 / "
1
2
(775 mm)
Recessed or closet installation - Washer on pedestal
3"
(76 mm)
3"
(76 mm)
1" 27"
(25 mm) (686 mm)
B
A
A - Side view - closet or confined area
B - Closet door with vents
**
* Min. top and bottom air openings
for closet door.
*** External exhaust elbow requires
additional space.
1" (25 mm)
*** Wall, door and floor molding may
require additional spacing.
1"***
27"
(25 mm)
(686 mm)
1" 27" 1"
(686 mm)
(25 mm) (25 mm)
38" min.
(965 mm)
1" 1" 30 / " 4"
1
2
(25 mm) (25 mm) (775 mm) (102 mm)
B
Ref. W10252719
06/2010
