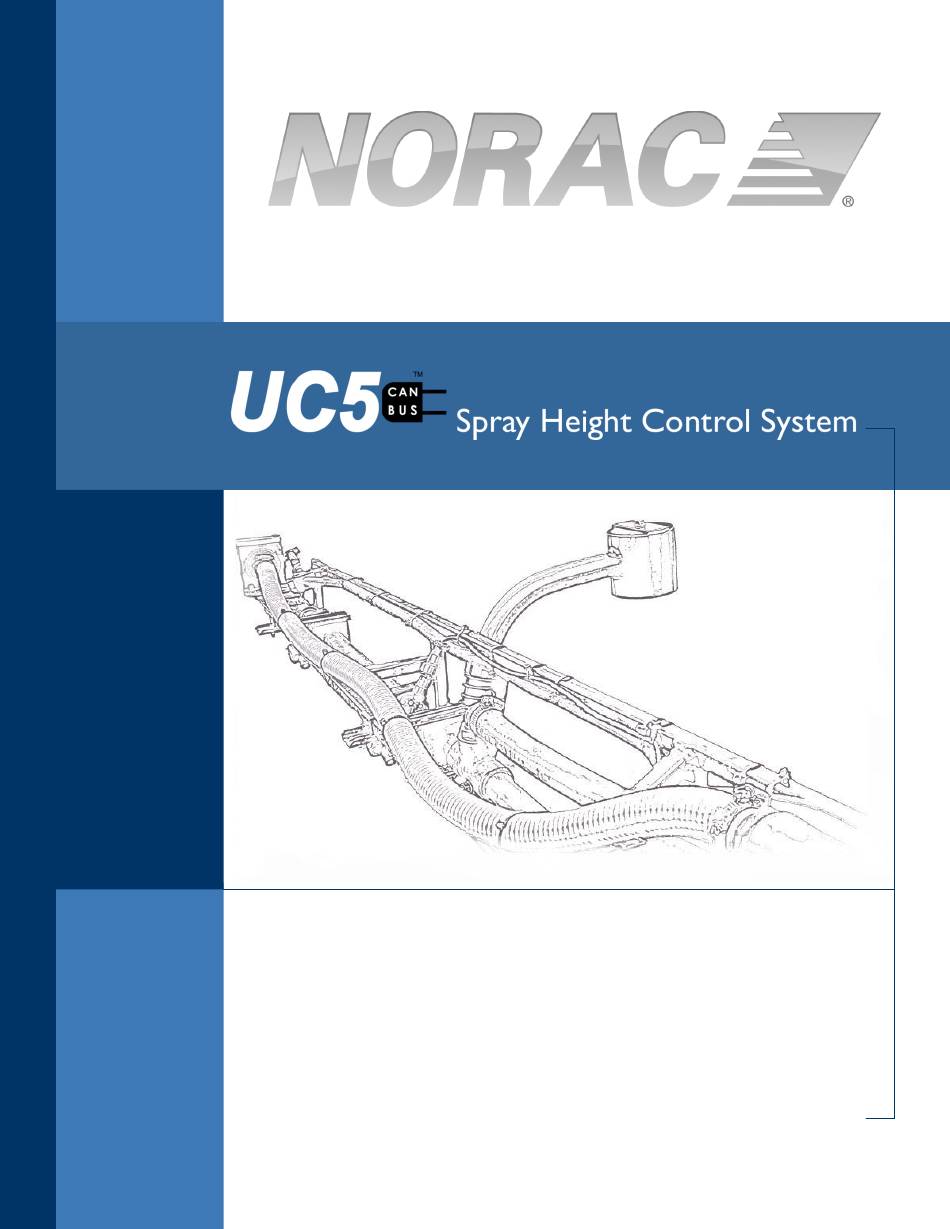

  • Page 1 John Deere (4930, 4940) Active Roll with Proportional Main Lift Installation Manual JD10A...
  • Page 2 Proportional Main Lift) NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information...

  • Page 3: Table Of Contents

    Contents Introduction ........................ 1     Technical Specifications .................... 2     General UC5 System Layout ..................3     Kit Parts ........................4     Pre-Install Checklist ....................12     Ultrasonic Sensor Installation ................13     Module Installation ....................20  ...

  • Page 4: Introduction

    Introduction Congratulations on your purchase of the NORAC UC5 Spray Height Control System. This system is manufactured with top quality components and is engineered using the latest technology to provide operating reliability unmatched for years to come. When properly used the system can provide protection from sprayer boom damage, improve sprayer efficiency, and ensure chemicals are applied correctly.

  • Page 5: Technical Specifications

    Technical Specifications   CAN ICES-3(A)/NMB-3(A) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 6: General Uc5 System Layout

    General UC5 System Layout Figure 1 illustrates the general layout of the UC5 system components: Figure 1: General UC5 System Layout...

  • Page 7: Kit Parts

    Kit Parts Kit Overview Figure 2: JD10A System Parts...
  • Page 8 Hydraulic Plumbing Figure 3: JD10A Hydraulic Plumbing Note: Part numbers shown in are from fittings kit H11 (44865-37). Part numbers shown in GREEN are from fittings kit H12 (44865-66). Part numbers shown in PURPLE are from fittings kit H13 (44865-76).
  • Page 9 44865-66 HYDRAULICS FITTING KIT - JD10A 44795-202 ROLL POSITION CYLINDER 40.86IN 2PS AC JD UC5-BC-JD10A-INST MANUAL INSTALLATION UC5 JOHN DEERE 4930, 4940 ACTIVE ROLL WITH PROP ML 106602 UC5 NETWORK 12 PIN PLUG (A-KEY) 105882 UC5 NETWORK 6 PIN PLUG...
  • Page 10 HYDRAULICS FITTING KIT - RPC 201/202 Do not use high speed power tools/drills when installing hardware. The use of dielectric grease is not recommended on any NORAC electrical connections. To ensure all stainless steel hardware does not gall or seize apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation.
  • Page 11 Hydraulic Fitting Kit Details (P/N: 44865-51) Picture Item Part Number Name Quantity 44917 MALE ADAPTER - 6MB-6MOR 104586 TEE ADAPTER - 6FORXR 6MORT 104885 TEE ADAPTER - 8FORXR 8MORT 104693 COUPLING HYD 4MOR 4MB 105226 MALE TO FEMALE ADATPER - 4MOR 6FORX 104590 90 DEG ADAPTER - 6MOR 6FORX90 104884...
  • Page 12 Hydraulic Fitting Kit Details (P/N: 44865-37) Item Part Number Name Quantity Picture 104586 TEE ADAPTER - 6FORXR 6MORT 44917 MALE ADAPTER - 6MB 6MOR 44926 ORIFICE INSERT 3/64" 104369 PLUG - 6MBP 6 M B - 6 M OR X 90 Fitting Name Example: ANGLE...
  • Page 13 Hydraulic Fitting Kit Details (P/N: 44865-66) Picture Item Part Number Name Quantity 44927 ORIFICE INSERT .031 IN ONE WAY 44975 ORIFICE INSERT .036 IN ONE WAY 104590 90 DEGREE ADAPTER - 6MOR 6FORX90 44917 MALE TO MALE ADAPTER - 6MB 6MOR 6 M B - 6 M OR X 90 Fitting Name Example:...
  • Page 14 Hydraulic Fitting Kit Details (P/N: 44865-76) Picture Item Part Number Name Quantity 104586 COUPLING HYD 6FORXR 6MORT 104692 COUPLING HYD 4MORR 4FORXT 104693 COUPLING HYD 4MOR 4MB 104694 COUPLING HYD 4MOR 4FORX90 104695 O-RING HYD 1/4IN FLAT FACE ORIFICE INSERT INLINE 4 FLAT FACE O-RING FITTING - 106651 .018"...

  • Page 15: Pre-Install Checklist

    Pre-Install Checklist The pre-install checklist is necessary to check the existing sprayer functionality before the installation. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.). Ensure all boom-fold operations are functional (place a check mark in boxes below). Bring engine to field-operational RPM and record below.

  • Page 16: Ultrasonic Sensor Installation

    Ultrasonic Sensor Serial Number Arrangement When installing the UC5 sensors, start with the smallest serial number on the left-hand side, and proceed to the largest serial number on the right hand side. Each UC5 sensor has a serial number stamped on the sensor housing.
  • Page 17 Ultrasonic Wing Sensor Mounting Guidelines The following guidelines will ensure optimal sensor performance and prevent sensor measurement error. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground. Ensure that there are no obstructions within a 12-inch diameter circle projected directly below the center of the sensor.
  • Page 18 Low Profile Bracket Mounting Guidelines Minimize the distance between the bolts to prevent bending the bracket and prevent the bracket from loosening over time. Ensure the bracket is mounted tight against the bottom of the boom, minimizing the distance between the boom structure and the angled flange. Figure 7: Bracket Mounting Guidelines A problem can arise if a sensor is not mounted correctly.
  • Page 19 If the sensor is mounted to this portion of the boom, the system will force the boom downwards towards the ground as the boom folds backwards. Mount the NORAC UC5 ultrasonic sensor into the sensor bracket and run the sensor cable either through hole in the back or through the side cut-out and behind the bracket.
  • Page 20 Rainflap Installation Rainflaps are only installed in the wing sensor brackets. Insert one side of the rainflap rod into the pre-bent hinge tab on the sensor bracket. (Figure 10) Figure 10: Rainflap Rod in Pre-Bent Hinge Tab Align the other side of the rainflap rod with the unbent hinge tab. (Figure 11) Figure 11: Align Rainflap Rod Bend the hinge tab inward over the rainflap rod until the hinge tab fits securely in the detent groove on the backside of the sensor bracket.
  • Page 21 Ultrasonic Main Lift Sensor Mounting Guidelines The following guidelines will ensure optimal sensor performance and prevent sensor measurement error. 1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground (A). 2. The centerline of the acoustic cone should be approximately vertical at normal operating heights (A).
  • Page 22 Main Lift Sensor Installation Figure 13: Main Lift Bracket Assembly There are a variety of ways to mount the main lift bracket on most sprayers. The bracket should position the sensor approximately in the center of the sprayer, forward of the boom.

  • Page 23: Module Installation

    Module Installation An optional module mounting bracket kit is available for purchase from NORAC. mounting brackets are compatible with control modules and input modules. One kit is needed per module. Item Part Number Name Quantity 43708 UC5 MOUNTING BRACKET KIT (CONTROL AND INPUT MODULES) Control Module Refer to Figure 1 and Figure 15.
  • Page 24 Valve Module Install the valve module (E02) to the top of the NORAC valve block. Orient the 6-pin Deutsch (CANbus) connectors towards the “P” and “T” ports with the label facing up. Output Number Normal Function Left Up Left Down...
  • Page 25 Figure 18: Valve Module Bracket Installation Connect the valve module CANbus to cable C01 from the control module. Route cable C02 from the other CANbus connector to the input module. With the valve module securely mounted to the valve block, connect the valve cables (C10), to the valve coils.
  • Page 26 Input Module Install the input module (E03) on the boom near the John Deere valve block. Secure it to the boom using cable ties or optional brackets. Connect the CANbus cable (C02) from the valve module to the input module. Insert the 12 pin plug (P02) into the OEM 3 connector on the end of the input module Figure 20: Input Module Connections Connect the 12 pin connector on the tilt interface cable (C20) to the Thru 2 connector on...
  • Page 27 Figure 21: John Deere Valve Block with Electrical Connectors 6. Route the long cable (with Deutsch connectors) on C21 under the sprayer. Connect the tee connectors into the jam valve connector, located at the JD shuttle valve, under the sprayer (Figure 22). Insert tee connector here...

  • Page 28: Connecting The Sensors To The Canbus

    Follow existing cables and hoses to be sure the cable will not be pinched or stretched. Figure 23: UC5 8-Way Coupler Location At the sensor brackets, attach a 2-way coupler with terminator (E20) to the sprayer boom. Plug the sensor and the CANbus cable into the 2-way coupler.

  • Page 29: Hydraulic Installation

    Component failure due to oil contamination is not covered under the NORAC UC5 system warranty. It is recommended that a qualified technician perform the hydraulic installation.
  • Page 30 Install the 6MB-6MOR (F02) fittings into the “A” and “B” ports of the two stations closest to the “P” and “T” ports. Tighten to 18 ft-lbs (24 Nm). Remove this coil Figure 25: NORAC Valve Block Details Install the orifice (F08) and the 6MB 6MOR fitting (F05) into the “B” port of the 3 station of the block.
  • Page 31 14. Install the coil, o-ring and plastic nut. Figure 26: Load Sense Bleed Orifice Location on Top of Block 15. Remove the plug from the “S” port on the NORAC valve block. Tapping the plug with a hammer before removing will aid in loosening the threads.
  • Page 32 Valve Block Mounting A good mounting location for the valve block on the John Deere is illustrated in Figure Insert the threaded rod into the block and use a hex nut to hold the rod. The block holes are 3/8” NC-1” deep. If bolts are used instead of the threaded rod, ensure the bolts thread in at least 3/8”.
  • Page 33 Removing the Rubber Bumpers, Springs and Dampers The springs are under compression and must be retained during disassembly. Failure to ensure the springs are removed safely may result in injury or damage to the equipment. Remove the rubber bumpers (Figure 29) from each side of the sprayer boom. Figure 29: Rubber Bumpers The springs to be removed are located on the bottom rear of the sprayer boom (Figure 30).
  • Page 34 When all the boom suspension components (springs, dampers and bumpers) are removed, the boom may roll to one side or move unexpectedly. Remove the upper and lower mounting bolts and remove the damper from each side of the sprayer boom (Figure 31). Figure 31: Dampers to be Removed...
  • Page 35 Active Roll Mounting Bracket Installation Install the mounting bracket as shown in Figure 32. Ensure the stop on the lower mount is outside the frame. Tighten the mounting bolts 50-70 ft-lbs. Figure 32: Roll Position Mounting Bracket Assembly Figure 33: Lower Roll Position Mounting Bracket Figure 34: Upper Roll Position Mounting Bracket...
  • Page 36 Roll Position Cylinder Assembly and Installation The roll position cylinder must be mounted on the right hand side of sprayer. Damper End Cylinder End Figure 35: Roll Position Cylinder Assembly Figure 35 illustrates where the cylinder end and damper end are located on the Roll Position Cylinder.
  • Page 37 Figure 36: Roll Position Cylinder Setup...
  • Page 38 Connect 4 hoses (H01) from the 6MOR 6FORX90 fittings (F07) to the “A” and “B” ports on the NORAC valve block. The “raise” lines must be connected to the "B" ports of the NORAC valve block. The "A" ports of the NORAC block must be connected to the “lower” lines of the cylinders.
  • Page 39 11. Connect hoses H02 to the “A” and “B” ports of the NORAC expansion block and route to the roll position cylinder. 12. Connect the hose from the “A” port to the port on the rod end of the cylinder using a 6MOR-6FORX90 (F12) fitting and a 6MB-6MOR (F13) fitting.

  • Page 40: Software Setup

    Turn on the power for the display terminal using the switch on the side. The procedure for the installation of the UC5 Spray Height Control system is now complete. Begin the AUTOMATIC SYSTEM SETUP procedure as described in the UC5...

  • Page 41: Cable Drawings

    11 Cable Drawings 11.1 ITEM C01: 43220-10 - CABLE UC5 NETWORK 14 AWG - 10M 11.2 ITEM C02: 43220-01 - CABLE UC5 NETWORK 14 AWG - 1M...
  • Page 42 11.3 ITEM C03: 43220-03 - CABLE UC5 NETWORK 14 AWG - 3M 11.4 ITEM C05: 43210-20 - CABLE UC5 NETWORK 18 AWG - 20M...
  • Page 43 11.5 ITEM C10: 43230-04 – CABLE UC5 VALVE DT TO DT...
  • Page 44 11.6 ITEM C20: 43240-19 – CABLE UC5 INTERFACE TILT JD (4920, 4930)
  • Page 45 11.7 ITEM C21: 43240-20 – CABLE UC5 INTERFACE MAIN JD (4920, 4930)
  • Page 46 11.8 ITEM C30: 43250-07 – CABLE UC5 BATTERY JD FUSED...
  • Page 47 Some John Deere sprayers may have the keyed connectors for the wing up and wing down functions swapped. As a result, the NORAC 43240-19 tilt interface cable (C20) will need to be modified according to the following instructions (See Figure 39 and Figure 40 for before and after schematics): 1.
  • Page 48 14. Locate and remove the red wire (Left Down) from the E-position of the 6-pin shroud keyed in positions B & F (S6B). 15. Insert the purple wire tee from step 13 into the E-position of the 6-pin shroud keyed in positions B &...
  • Page 49 TOPCON Agriculture Canada 3702 Kinnear Place Saskatoon, SK S7P 0A6 TOPCON Agriculture Americas W5527 Hwy 106 Fort Atkinson, WI 53538 TOPCON Precision Agriculture Europe Avenida de la industria, 35, Tres Cantos, España Spain Support Phone: 888 979 9509 E-mail: tasupportn@topcon.com Web: www.norac.ca...
