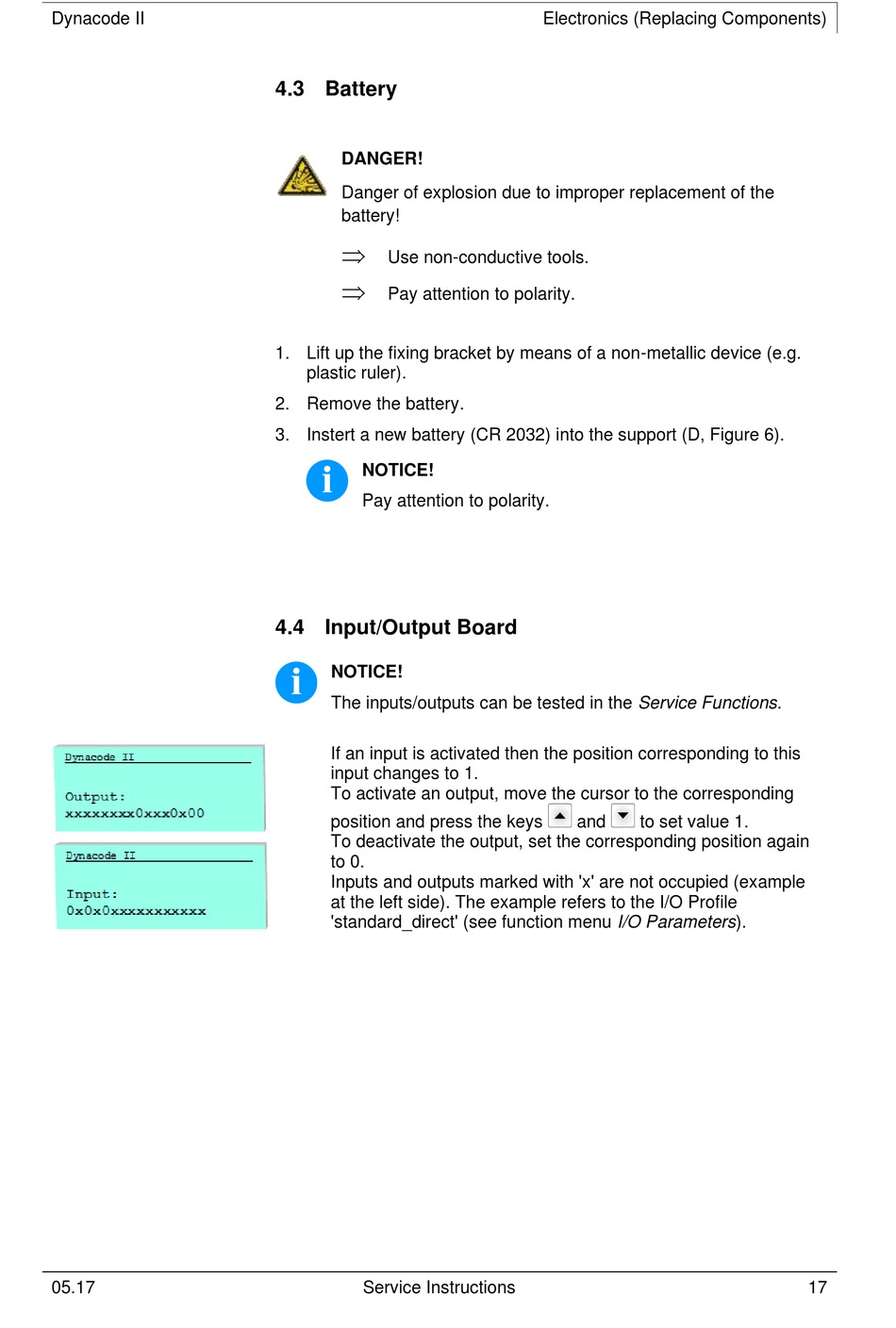

4.3 Battery

DANGER!
Danger of explosion due to improper replacement of the
battery!

Use non-conductive tools.

Pay attention to polarity.
1. Lift up the fixing bracket by means of a non-metallic device (e.g.
plastic ruler).
2. Remove the battery.
3. Instert a new battery (CR 2032) into the support (D, Figure 6).
NOTICE!
Pay attention to polarity.

4.4 Input/Output Board

NOTICE!
The inputs/outputs can be tested in the Service Functions.
If an input is activated then the position corresponding to this
input changes to 1.
To activate an output, move the cursor to the corresponding
position and press the keys
To deactivate the output, set the corresponding position again
to 0.
Inputs and outputs marked with 'x' are not occupied (example
at the left side). The example refers to the I/O Profile
'standard_direct' (see function menu I/O Parameters).
Service Instructions
Electronics (Replacing Components)
and to set value 1.
