Electronics (Replacing Components)
Remove the
CPU PCB
Install the
CPU PCB
16

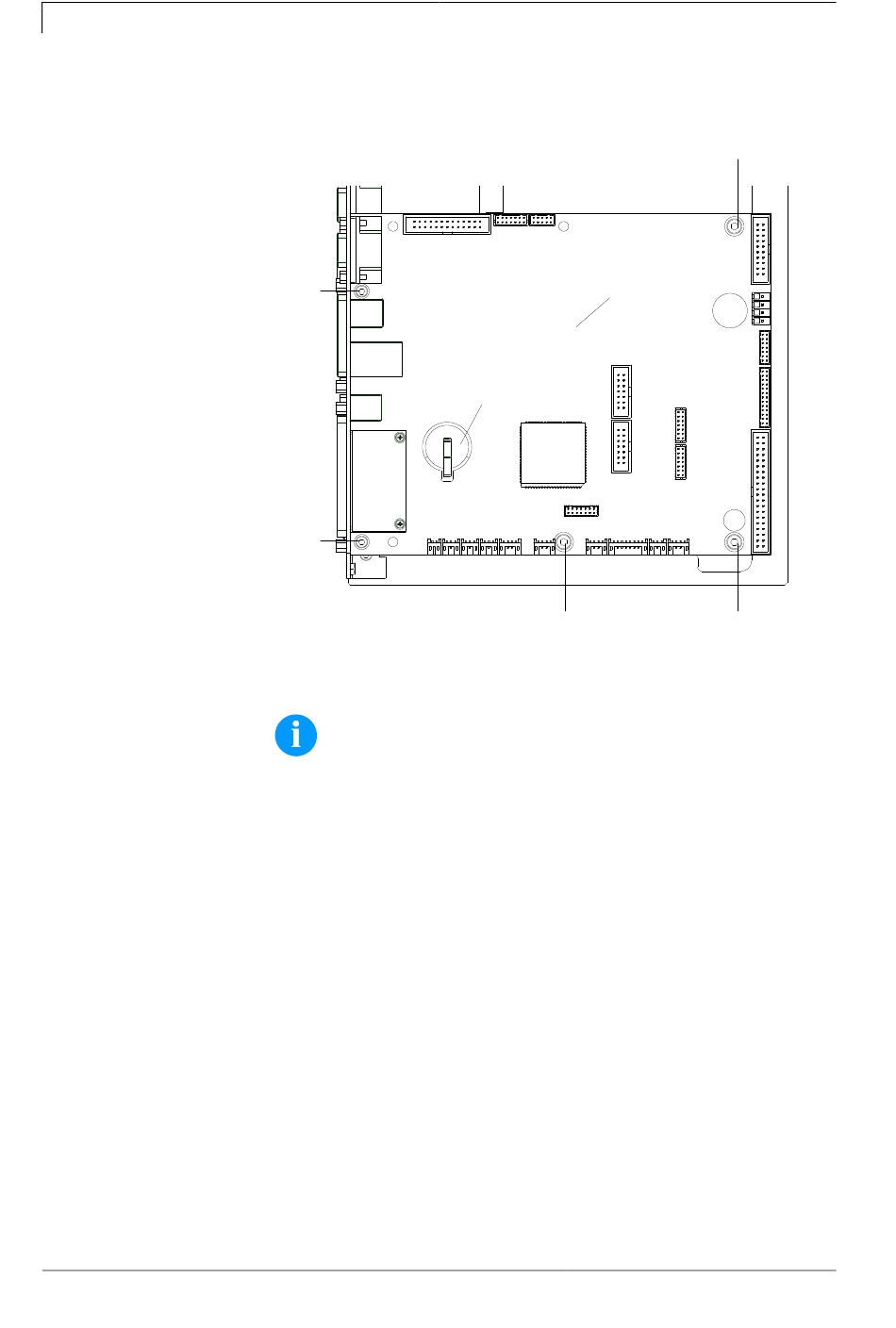

4.2 CPU PCB
A
A
Figure 6
NOTICE!
Save the configuration of direct print module onto a CF card.
1. Unplug the control unit from the electrical outlet.
2. Remove the cover of control unit.
3. Unplug all connections from the CPU PCB (C).
4. Remove the fixing screws (A).
5. Remove all screws (B) from the CPU PCB.
6. Remove the CPU BCP (C) carefully.
1. Install the CPU PCB (C) with the interface connections into the
connection plate.
2. Fix the CPU PCB with screws (B).
3. Tighten the screws (A).
4. Insert all plug connections on the PCB.
5. Restore all interface connections.
6. Connect again the power cable.
7. Verify the firmware version and update it, if necessary.
8. Load the configuration of the direct print module from CF card.
Otherwise set the configuration with help from the function menu.
Service Instructions
C
D
B
Dynacode II
B
B
05.17
