Dynacode II
View of transfer
ribbon cassette
Remove the track roller
05.17
7
Ribbon Cassette (Replacing Components)

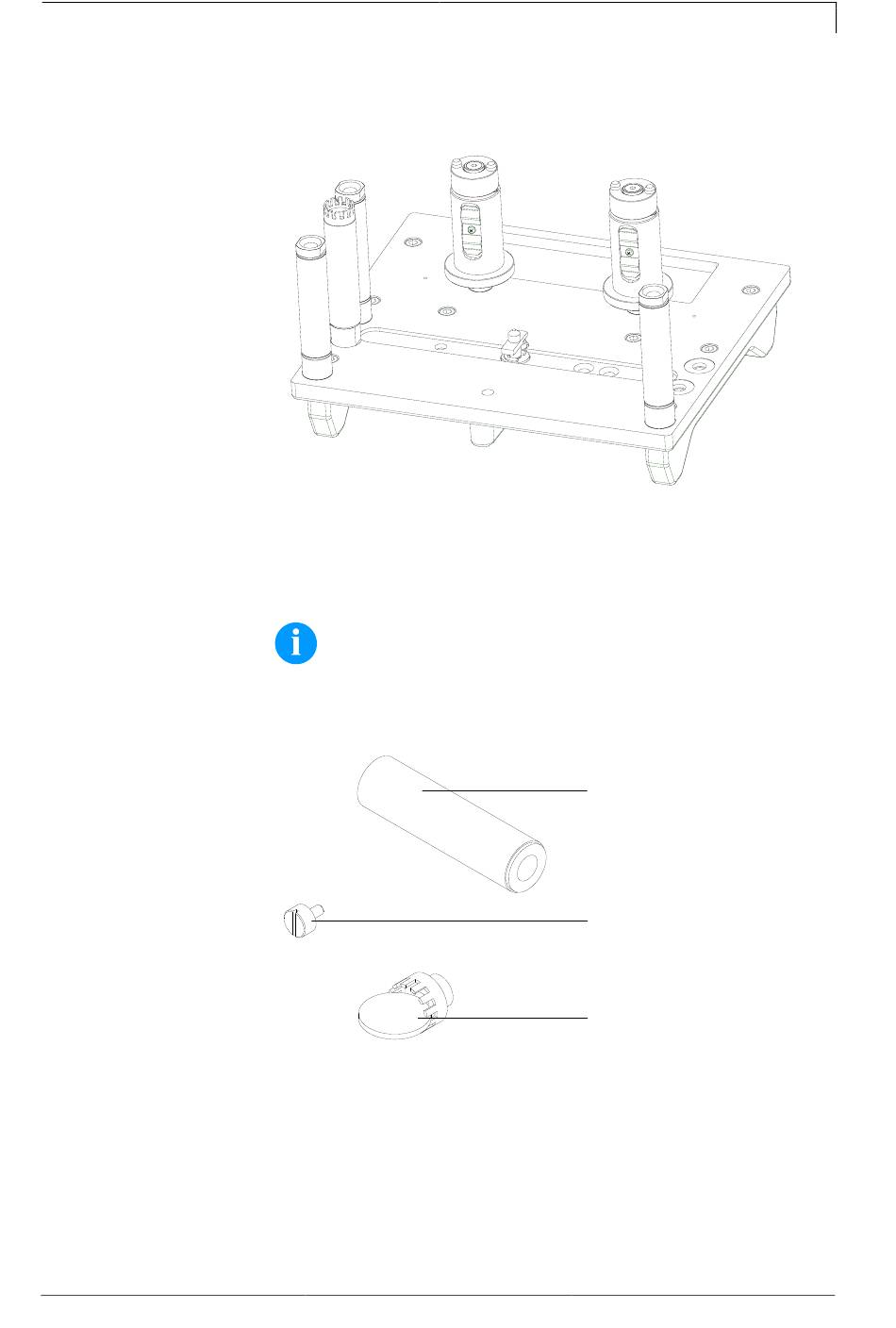

Figure 13
7.1 Track Roller
NOTICE!
The track roller can be removed without previous loosening of
the switch roll. Use a screw driver with max. diameter 5 mm and
remove the screw (B).
Figure 14
1. Remove the switch roll (C) from track roller (A). Use a 5 Cent coin
or similar auxiliaries.
2. Remove the screw (B).
3. Remove the pillar from the track roller (A).
Service Instructions
Ribbon Cassette (Replacing Components)
A
B
C
25
