Electronics (Replacing Components)
Remove the
I/O board
Install the
I/O board
18
A

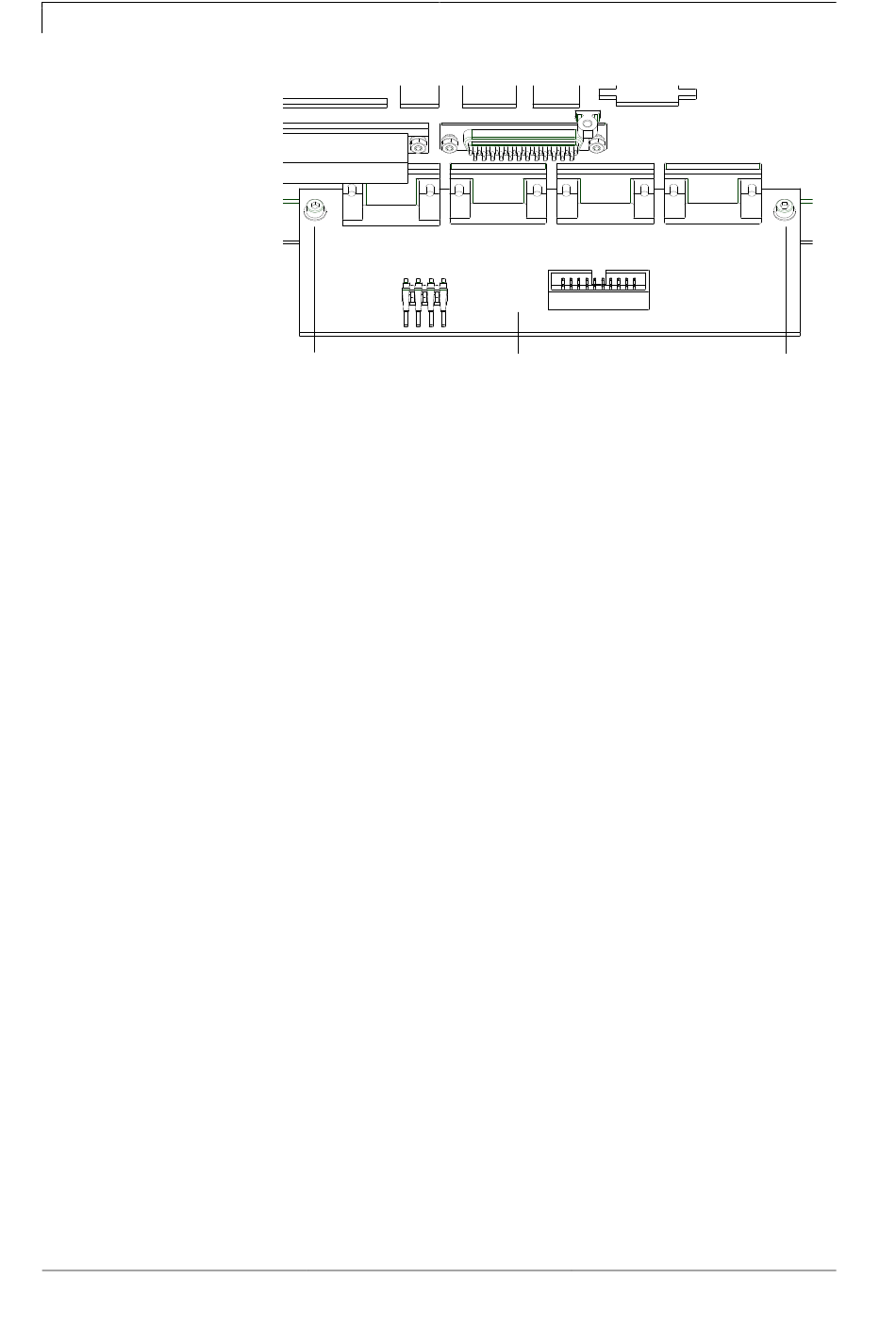

Figure 7
1. Unplug the control unit from the electrical outlet
2. Remove the cover of control unit.
3. Remove the CPU PCB (see chapter 4.2, page 16).
4. Remove all connections from the I/O interface (B).
5. Remove the screws (A).
6. Remove the I/O board.
1. Install the new I/O board.
2. Tighten the screws (A).
3. Insert again all connections.
4. Install the CPU PCB.
5. Close the housing of control unit.
6. Connect again the power cable.
Service Instructions
B
Dynacode II
A
05.17
