EL-42S
v1.3 HDMI 4 Way Switcher
with 2 Identical Outputs
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-42S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP EL-42S

  • Page 1 EL-42S v1.3 HDMI 4 Way Switcher with 2 Identical Outputs OPERATION MANUAL...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control RS232 Pinouts Commands Sets Connection Diagram Specifications...
  • Page 3: Introduction

    1. Introduction This is a high performance HDMI v1.3 Switcher with remote control. It allows various HDMI sources to share two HDTV display. Simply pressing button to select your desired HDMI source for display on the HDTV. Each product in this series is compatible to HDMI v1.3 specifications, a cutting edge technology which defines the support to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz.
  • Page 4: Operation Controls And Functions

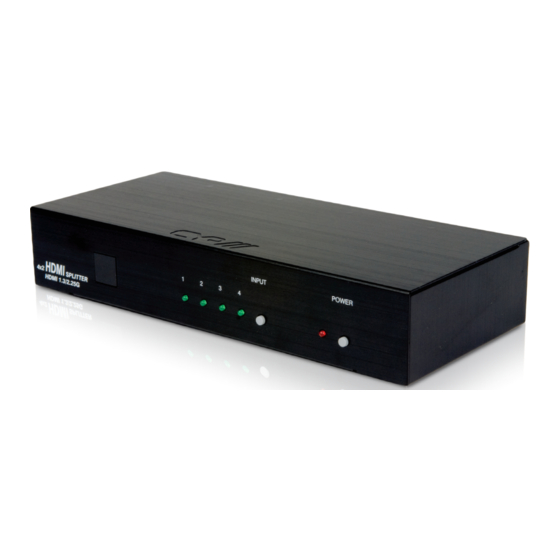

    4. Operation Controls and Functions 4.1 Front Panel INPUT POWER HDMI SPLITTER HDMI 1.3/2.25G 1. Remote control sensor. 2. HDMI input Select/Indicator: Press the “Input” button sequentially to switch to your desired input (HDMI 1 to HDMI 4), the LED will illuminate to indicate which input source is selected 3.
  • Page 5: Remote Control

    1. HDMI Outputs 1 and 2: Connect each of the output ports to the HDMI display. When more than one output connected, the HDMI outputs play identical video signal simultaneously. 2. RS232: 9-pin D-Sub connector for connecting to your PC or other control console for remote control.
  • Page 6: Rs232 Pinouts

    5. RS232 Pinouts EL-42S Remote Control Console Definition Definition • EL-42S transmission format: • Baud Rate: 9600 bps • Data bit: 8 Bits Parity: None • Stop Bit: 1 bit 6. Commands Sets ACTION COMMAND “I” + “1” PORT 1 ON “I”...
  • Page 7: Connection Diagram

    7. Connection Diagram 7. Specifications Frequency bandwidth 2.25Gbps (single link) Input Ports 4 x HDMI female ports HDCP Version v1.1 Output Port 2 x HDMI female ports Remote Control Discrete IR remote 5V/2.6A DC (US/EU standards, CE/ Power Supply FCC/UL certified) Dimensions (mm) 240 (W) x 104 (D) x 50(H) Chassis Colour...
  • Page 8 Notes:...
  • Page 9 www.cypeurope.com...
