Stryker Medical 820 Operation & Maintenance Manual

Anesthesiologist stool

Advertisement

Quick Links

IMPORTANT
File in your
maintenance
records
820 Anesthesiologist Stool
OPERATIONS/MAINTENANCE MANUAL
For Parts or Technical Assistance
1–800–327–0770

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 820 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stryker Medical 820

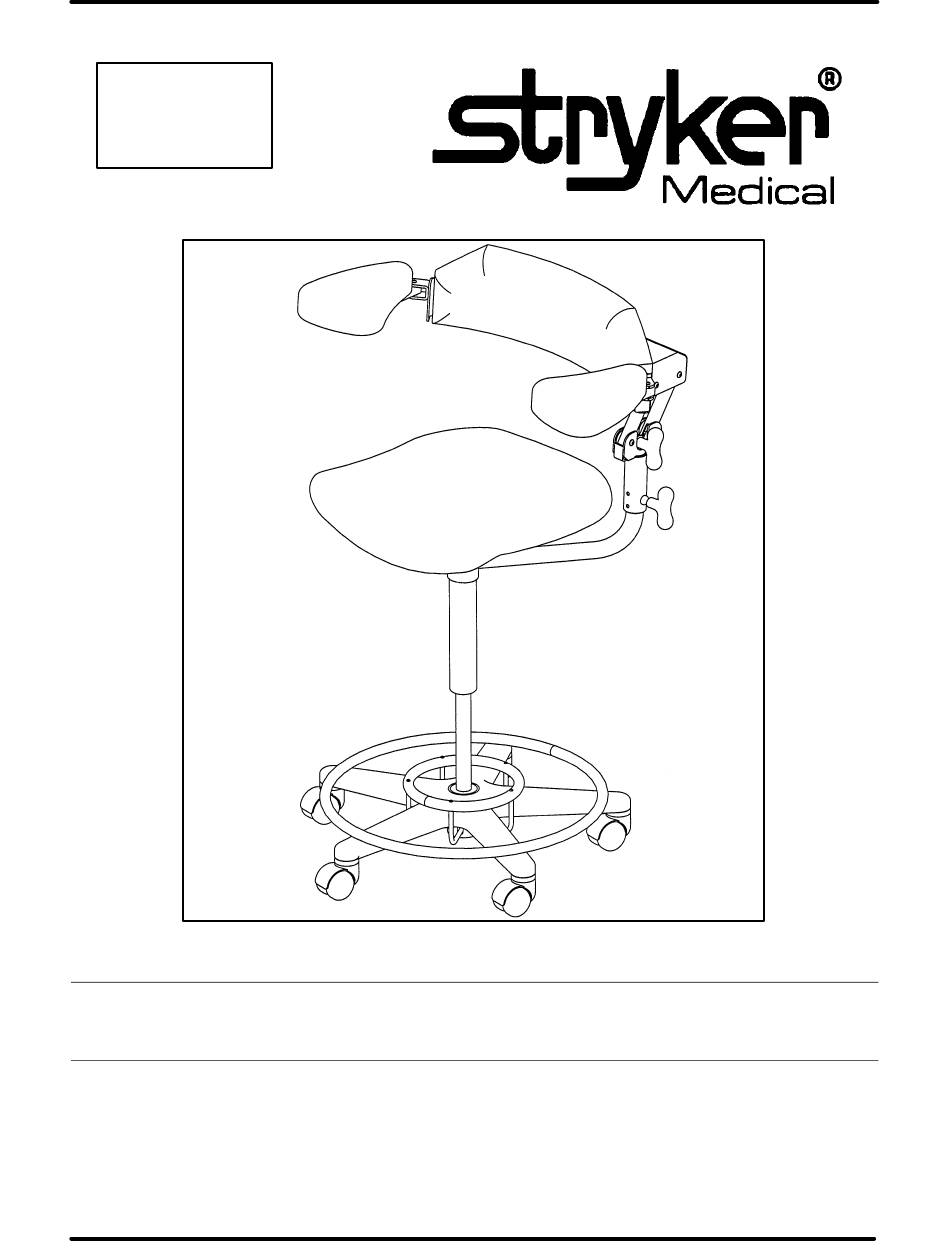

  • Page 1 IMPORTANT File in your maintenance records 820 Anesthesiologist Stool OPERATIONS/MAINTENANCE MANUAL For Parts or Technical Assistance 1–800–327–0770...
  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ................CLEANING .
  • Page 3: Introduction

    Introduction INTRODUCTION This manual is designed to assist you with the operation and maintenance of the 820 Anesthesiologist Stool. Read it thoroughly before using the equipment or beginning any maintenance on it. PREVENTATIVE MAINTENANCE CLEANING 1. Hand wash all surfaces of the Anesthesia Stool with warm water and mild detergent. Dry thoroughly.
  • Page 4: Operation Guide

    Operation Guide To raise or lower the height of the back rest assembly, turn knob (A) counterclockwise, raise or lower the back rest and turn the knob clockwise to tighten it and secure the back rest. To move the back rest forward or back, turn knob (B) counterclockwise, adjust the back rest and turn the knob clockwise to tighten it and secure the back rest.
  • Page 5: Base Assembly

    820–10–100, 820–10–200, 820–10–300 Base Assembly 820–10–100 Item Part No. Part Name Qty. 820–10–10 5–Star Base 820–10–11 Caster 820–10–14 Gas Spring (Low Ht.) 820–10–15 Caster Trim Ring 820–10–20 Foot Rest Ring 820–10–32 Reactor Ring 820–10–34 Base Taper Adaptor 820–10–35 Actuator Housing 820–10–36...
  • Page 6: Seat/Back Assembly

    820–20–100 Seat/Back Assembly Item Part No. Part Name Qty. Item Part No. Part Name Qty. 820–20–10 Seat Assembly 26–6 Spring Pin 820–20–20 Back Rest Assembly 24–45 Female T–Handle 820–20–65 Support Arm 24–44 Male T–Handle 820–20–80 Arm Rest Ass’y, Left 16–28 Nylock Nut 820–20–85...
  • Page 7: Limited Warranty

    Warranty Limited Warranty: Stryker Medical Division, a division of Stryker Corporation, warrants to the original purchaser that its products should be free from defects in material and workmanship for a period of one (1) year after date of delivery. Stryker’s obligation under this warranty is expressly limited to supplying replacement parts and labor for, or replacing , at its option , any product which is, in the sole discretion of Stryker, found to be defective.
  • Page 8: Return Authorization

    Warranty Return Authorization: Merchandise cannot be returned without approval from the Stryker Customer Service Department. An autho- rization number will be provided which must be printed on the returned merchandise. Stryker reserves the right to charge shipping and restocking fees on returned items. SPECIAL, MODIFIED, OR DISCONTINUED ITEMS NOT SUBJECT TO RETURN.
  • Page 9 6300 Sprinkle Road, Kalamazoo, MI 49001–9799 (800) 327–0770 DH 7/93 820–90–1 REV__...
