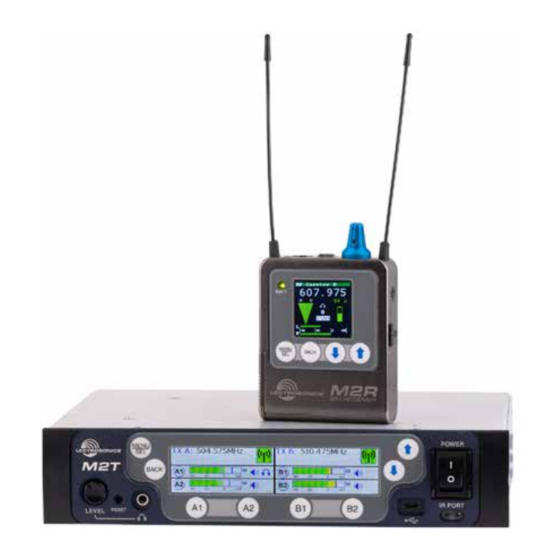

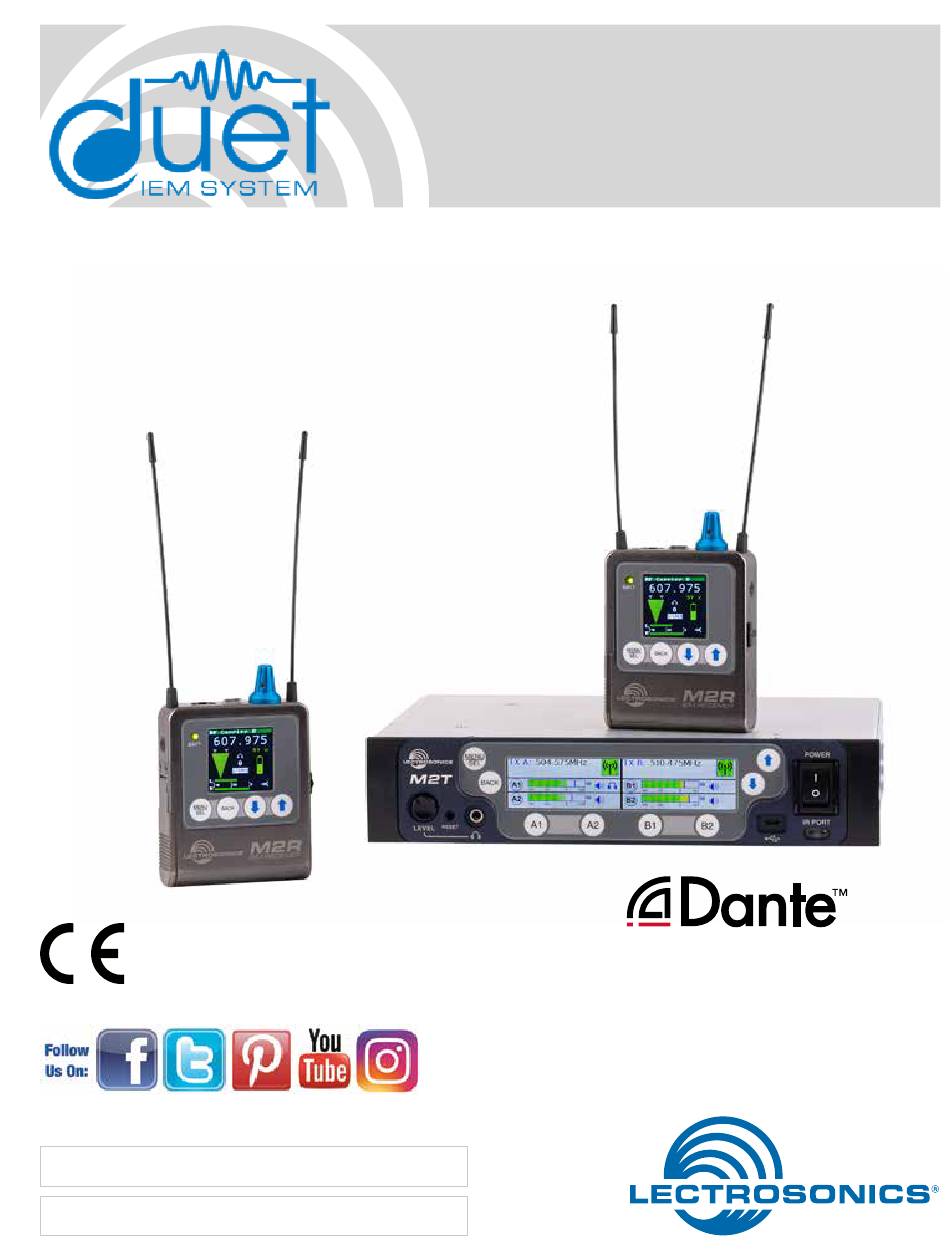

Digital IEM System with Encryption
M2R-X
M2T-X Dante
M2T-X Non Dante
M2T-X/E01 Dante
M2T-X/E01 Non Dante
M2T/E02
M2T/E06
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL
* M2T-X and M2R-X are firmware options
for the Duet System allowing encryption and
removing the flexlist feature and analog IFB
compatibility.
Rio Rancho, NM, USA
www.lectrosonics.com
Advertisement
Table of Contents
Related Manuals for Lectrosonics M2R-X
Summary of Contents for Lectrosonics M2R-X
- Page 1 M2T-X Dante M2T-X Non Dante M2T-X/E01 Dante M2T-X/E01 Non Dante M2T/E02 M2T/E06 * M2T-X and M2R-X are firmware options for the Duet System allowing encryption and removing the flexlist feature and analog IFB compatibility. Fill in for your records: Serial Number:...
-
Page 2: System Setup Procedures
3) Scan for an available frequency on the receiver. Shared Keys will first have to be created in the M2T-X 4) Choose Encryption Key. and synced with the M2R-X. 5) Power on the transmitter and sync with receiver. 5) Sync With A Transmitter Enable RF in transmitter. -
Page 3: Table Of Contents
LEDs Off ................13 Returning Units for Repair ..........29 Battery Type ...............13 Earphone Type ..............13 Vol. Taper ................13 Lock/Unlock ..............13 Locale ................13 About M2R-X ..............13 Default ................14 Encryption Key Management ..........14 Key Type ................14 Wipe Key ................14 Share Key ................14 M2R Accessories ..............15 M2T Transmitter Operation ..........16... -
Page 4: Duet System Overview
The headphone jack is fed from a high-quality stereo amplifier with 250 mW available to drive even inefficient headphones or earphones to sufficient levels for stage performance or other noisy environments. The receiver can select from LECTROSONICS, INC. -
Page 5: Encryption
Digital IEM System with Encryption Encryption The special firmware version M2T-X provides AES 256 bit encryption. When transmitting audio, there are situations where privacy is essential, such as during professional sporting events, in court rooms or private meetings. High entropy encryption keys are first cre- ated by the M2T-X Transmitter. -
Page 6: M2R Receiver Operation
RF Link LED On/Off and volume knob IR (infrared) Headphone port output Belt clip mounting Battery status sockets port Battery compartment door When on Main Screen, UP Button will turn LEDs on and DOWN Button will turn LEDs off. LECTROSONICS, INC. -
Page 7: Battery Status Led
Digital IEM System with Encryption Battery Status LED Keypad and LCD Interface When the battery status LED on the keypad glows green the batteries are good. The color changes to red at a midpoint during the runtime. When the LED begins to blink red, only a few minutes remain. -
Page 8: Installing Batteries
The “0” refers to the level reference, as chosen in the transmitter, i.e. either +4 dBu or -10 dBV. Mixer mode Indicates which mixer mode has been selected for the receiver. (See page 12.) Polarity markings LECTROSONICS, INC. - Page 9 Digital IEM System with Encryption Navigating the Menus From the Main Window, press MENU/SEL to enter the menu, then navigate with the UP and DOWN arrows to highlight the desired setup item. Press MENU/SEL to enter the setup screen for that item. Refer to the menu map on the following page.
-
Page 10: M2R Lcdmenu Map
Locked unlock front panel settings BACK Locale Use arrow keys to choose Locale (for StartTune locale BACK and scan) About M2R-X No selections available; About M2R-X Firmware Version for information BACK Serial No. purposes only Default Default Use arrow keys to accept or reject... -
Page 11: Menu Item Descriptions
Digital IEM System with Encryption Menu Item Descriptions Use the UP and DOWN arrows to roughly tune the receiver by moving the cursor to an open spot. Press MENU/SELECT to zoom in for fine tuning. SmartTune SmartTune™ automates the discovery of a clear operating frequency. -
Page 12: Vol/Bal
The available modes are: • Stereo Meter Mode • SwapLR • Custom Changes the appearance of • Mono 1&2 the audio level indicator on • Mono Ch 2 the main window; can show either pre- or post mix audio levels. LECTROSONICS, INC. -
Page 13: Backlight
Selects the type of battery EU: 470.100-614.375 MHz being used: Alkaline AU: 520.000-614.375 MHz or Lithium so the remaining battery meter on the home About M2R-X screen is as accurate as Displays general information possible. about the M2R, including serial number and the... -
Page 14: Default
Returns all settings to the pable transmitters/receivers via the IR port. When factory defaults as shown the M2R-X is set to this key type, a menu item in the table below. named SEND KEY is available to transfer the key to another device. -
Page 15: M2R Accessories
Digital IEM System with Encryption M2R Accessories P1291 USB port dust cover. 26895 Wire belt clip. 21926 USB cable for firmware updates LRSHOE This optional kit includes the accessories needed to mount the M2R on a standard cold shoe using the wire belt clip that comes with the receiver. -
Page 16: M2T Transmitter Operation
Power switch buttons previous screen Headphone Volume Headphone Jack USB Port IR Port Adjustment Channel Function Buttons/ Quick Sync M2T Back Panel Antenna Antenna Jack Dante Ports (optional) Jack XLR/TRS Combo Analog Ethernet Port Input Connectors Power Inlet LECTROSONICS, INC. -
Page 17: Operating Instructions
Power Screens When powering on the M2T, there are two screens that IR (infrared) Port appear in the following order, Duet and Lectrosonics: Settings, including frequency, name, limiter, mix mode, encryption keys, etc. can be transferred to and from the M2T transmitter via this port to an IR enabled receiver to simplify setup. -
Page 18: M2T Lcd Menu Map
Use arrow keys Press SEL to DEFAULTS to select yes DEFAULTS BACK execute or no ABOUT No selections available; for ABOUT BACK information purposes only LINKS LINKS No selections available; use phone to scan QR code BACK for more information LECTROSONICS, INC. -
Page 19: Menu Item Descriptions
Digital IEM System with Encryption Menu Item Descriptions Sync Settings Allows sending or retrieving setup data, including fre- quency, name and talkback settings, via the IR port. RF Enable/Level Sync options: Choose to send frequency, send Allows RF transmission to be turned on and off and set all settings, retrieve (get) frequency or retrieve RF levels at 10, 25 or 50 mW (E06 options are 20, 50 (get) all settings from a receiver. -
Page 20: Audio Polarity
• Quick Sync Mode tion option available. All encryption-capable Sync All: A long (1 second) press of Lectrosonics transmitters and receivers contain either the A1, A2, B1 or B2 buttons sends all the Universal Key. The key does not have to be RX1 settings. -
Page 21: Edit Names
Select OK. The creation of a new key is confirmed. Links QR codes with links to the Lectrosonics website, the M2T User Manual online and YouTube video tutorials. 4. Sync new key with receiver (see Sync Key). The transmitted audio will then be encrypted with the new key. -
Page 22: Hardware Installation
(25990) Bracket rear tie • (25991) Bracket front tie • (27076) Rack flange bracket • (27082) Rack handle • (28885) (4) SCR10 cap screw • (35664) (4) Rubber foot large • (35959) Hole plug • (A500RA20) (2) Antenna LECTROSONICS, INC. -
Page 23: Installing Two M2Ts Into A Single Rack Space
Digital IEM System with Encryption Installing two M2Ts into a Single Rack Space The M2T transmitter occupies a half rack space, and 4. Insert two (2) cap screws (Part #28885) through the comes with hardware to mount two transmitters into a rack handle (Part #27082) holes and install the rack single rack space. - Page 24 M2T, it will not fit in a rack unless panels are even with each other. Hold the receivers there is an empty space below it. in place and tighten all cap screws on the front and rear brackets. LECTROSONICS, INC.
-
Page 25: M2T Accessories
Digital IEM System with Encryption M2T Accessories SNA600a Antenna DCR15/A4U Front Mount Antenna Kit FMAKM2T SNA600a Accessories: ARG 15 27080 Dante Port Cover A 15 foot antenna cable of standard RG-58 coax cable with BNC connectors at each end. (included with Non-Dante Model) Dante 4X4-TM Dante Card Kit (Included in Dante Model) RMPM2T-1... -
Page 26: Specifications
Power Requirements: 9-18 VDC Power Consumption: 5 Watts Weight: 2.2 lbs (997.903 grams) Dimensions: Height: 1.750 in. / 44.45 mm Width: 8.375 in. / 212.7 mm Depth: 7.750 in. / 196.8 m. Specifications subject to change without notice. LECTROSONICS, INC. -
Page 27: Wireless Designer Software
Software Download the Wireless Designer software installer from the web sites under the SUPPORT tab at: http://www.lectrosonics.com/US Wireless Designer only needs to be installed the first time the software is used. Once the software is in- stalled, updates are available by simply clicking on an item in the Help Menu. - Page 28 L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscep tible d’en compromettre le fonctionnement. LECTROSONICS, INC.
-
Page 29: Service And Repair
There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod- est flat rate plus parts and shipping. - Page 30 Duet LECTROSONICS, INC.
- Page 31 Digital IEM System with Encryption Rio Rancho, NM...
- Page 32 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
