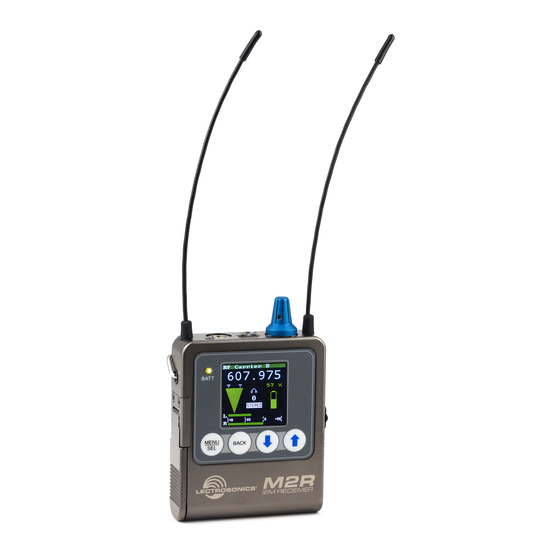

M2R
Digital IEM/IFB Receiver
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL

Quick Start Summary

1) Install receiver batteries (pg. 6).
2) Power unit on with On/Off and Volume knob (pg. 4).
3) Scan for an available frequency (pg.9).
4) Sync the receiver with a transmitter (pg. 10).
5) Enable RF in transmitter (see transmitter manual).
6) Send audio (pg. 9).
WARNING: Moisture, including talent's sweat,
will damage the receiver. Wrap the M2R in
a plastic baggie, our silicone cover (order
part # M2RCVR) or other protection to avoid
damage.
Rio Rancho, NM, USA
www.lectrosonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lectrosonics M2R

Summary of Contents for Lectrosonics M2R

  • Page 1: This Manual Is For All 2.X Versions Of Duet Firmware

    5) Enable RF in transmitter (see transmitter manual). 6) Send audio (pg. 9). WARNING: Moisture, including talent’s sweat, will damage the receiver. Wrap the M2R in a plastic baggie, our silicone cover (order part # M2RCVR) or other protection to avoid damage.
  • Page 2 LECTROSONICS, INC.

  • Page 3: Table Of Contents

    Digital IEM Receiver Table of Contents This manual is for all 2.X versions of Duet Firmware..1 Quick Start Summary ............1 M2R Digital IEM Receiver ..........4 FlexList™ ................4 WARNING: If connecting this receiver to Smart Tuning (SmartTune ™...

  • Page 4: M2R Digital Iem Receiver

    (or whatever name the user chooses for that unit), frequency, mixer settings and limiter settings. The mix is easily shared via the M2R IR port, added to the list of 16 mixes and stored until cleared by the user. The M2R allows the user to toggle between the mixes, making troubleshooting issues easy and efficient.

  • Page 5: Panels And Features

    Digital IEM Receiver Panels and Features RF Link LED On/Off and volume knob IR (infrared) Headphone port output Belt clip Battery status mounting sockets port Battery compartment door When on Main Screen, UP Button will turn LEDs on and DOWN Button will turn LEDs off. Rio Rancho, NM...

  • Page 6: Battery Status Led

    Settings, including frequency, name, limiter, mix mode, Flexlist, etc. can be transferred between transmitter and receiver or receiver and receiver (M2R to M2R). FlexList profiles can be gathered by the receiver. Fre- quency scan information can be sent from the receiver to the transmitter and on to Wireless Designer soft- ware for coordination purposes.

  • Page 7: Installing Batteries

    Digital IEM Receiver Installing Batteries LCD Main Window Receiver Diversity Power is provided by two AA batteries. The batteries Name Activity Frequency are connected in series by a plate in the battery door. It is suggested that you use lithium or high capacity NiMH rechargeable batteries.
  • Page 8 Press BACK to Press the UP and DOWN Press the UP and DOWN return to the arrows to navigate and arrows to navigate and previous screen highlight the desired highlight the desired menu item selection LECTROSONICS, INC.

  • Page 9: M2R Lcd Menu Map

    Digital IEM Receiver M2R LCD Menu Map The menus presented on the LCD are arranged in a straightforward manner, with those that are likely to be used more often located at the top of the tree. Automatic tuning to wait...

  • Page 10: System Setup Procedure

    Step 1) Install Batteries the menu to transfer frequency or other information via the IR ports. Hold the M2R receiver IR port close to Install the batteries according to the diagram marked the front panel IR port on the transmitter and press GO on the back of the housing.

  • Page 11: Menu Item Descriptions

    Digital IEM Receiver Menu Item Descriptions Use the UP and DOWN arrows to roughly tune the receiver by moving the cursor to an open spot. Press MENU/SELECT to zoom in for fine tuning. SmartTune SmartTune™ automates the discovery of a clear operating frequency.
  • Page 12 Flex List Share List - Share Flex List from one M2R to another via IR port. FlexList allows the user to set up a list of profiles, by name, to quickly and easily listen to any of the mixes on site individually.
  • Page 13 Digital IEM Receiver Limiter Clear Scan Data Limiter function allows the user to set volume and Erases scan results from dynamic range for headphone use. memory. Gain - The default setting (0) is linear, but if volume adjustments are needed, use the UP and DOWN ar- rows to adjust the audio by up to +18 dB and down to -6 dB in 3dB steps.
  • Page 14 Compatibility mode is available to allow the receiver to factory defaults as shown in operate with IFB (FM). Icon on main screen is shown the table below. when IFB (FM) Mode is active. The M2R is compatible with Lectrosonics IFB transmitters in IFB mode Menu Item Setting...

  • Page 15: Supplied And Optional Accessories

    LRSHOE Hex key wrench for tightening screws on volume knob This optional kit includes the accessories needed to mount the M2R on a standard cold shoe using the wire belt clip that comes with the receiver. 40073 Lithium Batteries P1291 DCHR is shipped with two (2) batteries.

  • Page 16: Specifications

    Switched antenna phase, during packet headers Firmware updates are made with a file downloaded Audio Output: 3.5 mm stereo jack from the web site and the M2T or M2r connected via Power requirements: 2 x AA batteries (3.0V) USB. Battery life: 7 hours;...

  • Page 17: Service And Repair

    There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod- est flat rate plus parts and shipping.
  • Page 18 LECTROSONICS, INC.
  • Page 19 Digital IEM Receiver Rio Rancho, NM...
  • Page 20 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
