Q
uick
S
tart
G
uide

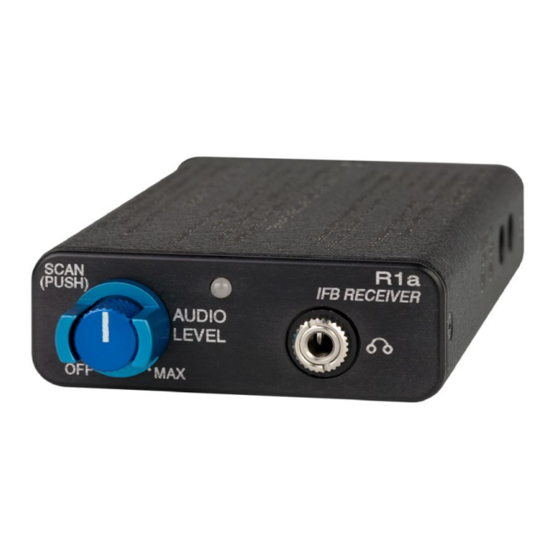

IFB Receiver
IFBR1a
Fill in for your records:
Serial Number:
Purchase Date:
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com/manuals
U.S. Patent 7,225,135
06 july10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IFBR1a and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lectrosonics IFBR1a

Summary of Contents for Lectrosonics IFBR1a

  • Page 1 IFB Receiver IFBR1a U.S. Patent 7,225,135 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product. For a detailed user manual, down- load the most current...

  • Page 2: Battery Installation

    Insert the contact end of the battery first, mak- ing sure the contacts are aligned with the holes in the contact pad, and then swing the door closed. You will feel it snap into place when it is fully closed. LECTROSONICS, INC.
  • Page 3 Status Indicator Control Knob Headphone Jack 1.6M 100K Frequency Select Switches www.lectrosonics.com...

  • Page 4: Controls And Functions

    Mono Plug/Stereo Plug Although the IFBR1a is mono only, a Mono or Stereo plug can be used with the IFBR1a headphone jack directly. When a Mono plug is inserted, a special circuit senses the “ring” to “sleeve” short and automatically switches off the ring to prevent excess battery drain.

  • Page 5: Control Knob

    LED is RED, the battery is nearly depleted and should be replaced. PROGRAMMING FUNCTIONS - In the programming mode, the LED will blink at a fast rate to indicate scanning for an active frequency. It also flashes briefly to indicate a frequency has been programmed into a channel. www.lectrosonics.com...

  • Page 6: Receiver Normal Operation

    The frequency is now stored in an open channel. 6. The unit will continue scan/search for other frequencies. To store more frequencies repeat steps 4 and 5 above. Up to 5 frequencies can be stored in memory channels. LECTROSONICS, INC.

  • Page 7: Erase All 5 Channel Memories

    Prevention is simple. Do one of the following: • Do the scan with only one transmitter on at a time. (Time consuming) • Increase the receiver to transmitter distance to at least 10 feet. (Pre- ferred) www.lectrosonics.com...
