Lectrosonics M2T Instruction Manual

Duet digital iem system
Hide thumbs Also See for M2T:
Table of Contents

Advertisement

Quick Links

Download this manual
Digital IEM System
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL
Rio Rancho, NM, USA
www.lectrosonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2T and is the answer not in the manual?

Questions and answers

Related Manuals for Lectrosonics M2T

Summary of Contents for Lectrosonics M2T

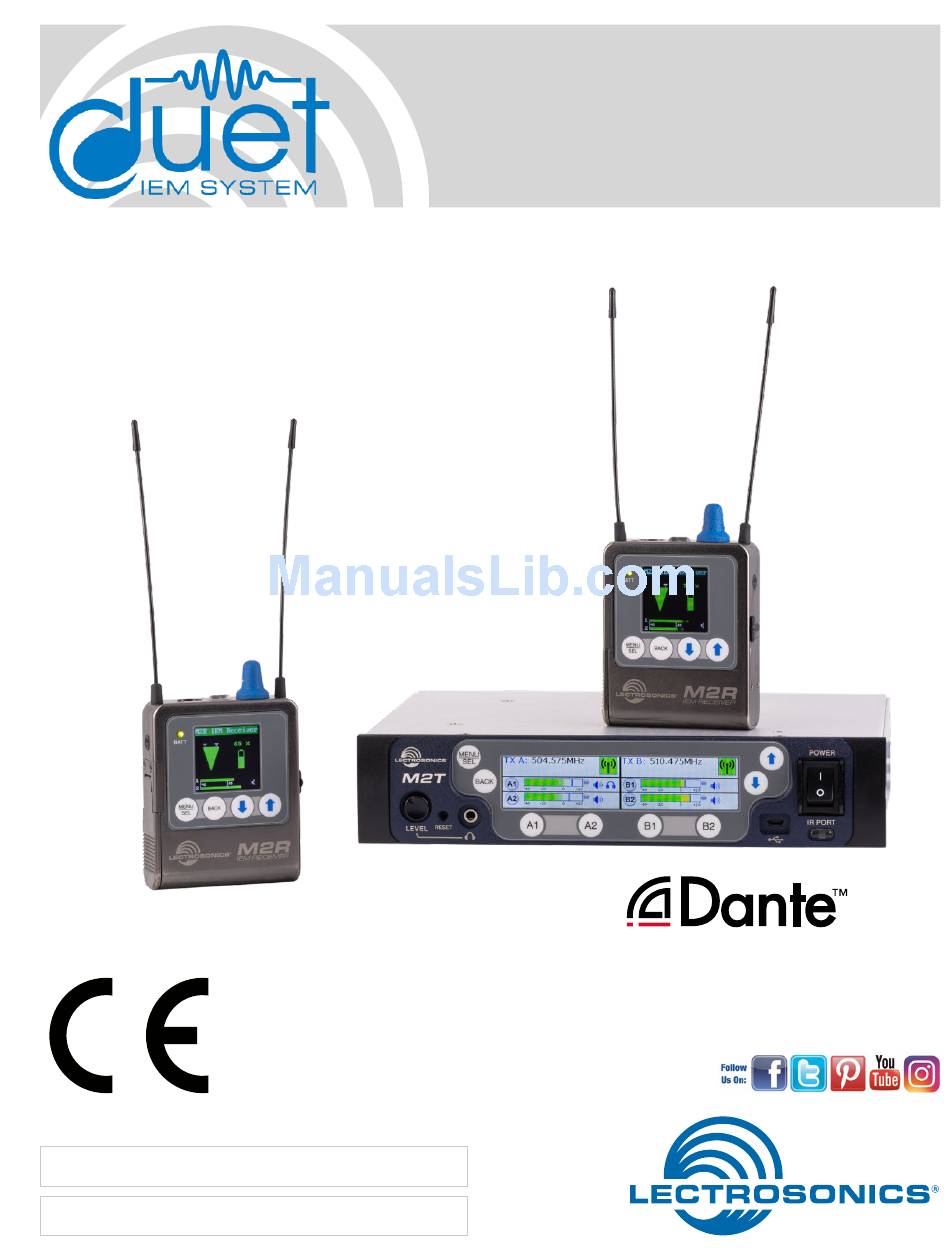

  • Page 1 INSTRUCTION MANUAL Digital IEM System Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...

  • Page 2: System Setup Procedures

    1 and 2) Install Receiver Batteries & Connect Transmitter Power 6) Send Audio Connect power to the M2T transmitter (page 16). Send an audio signal to the transmitter and adjust Install the receiver batteries (lithium recommended, the send level from your mixer until the audio meters page 8) according to the diagram marked on the back on the transmitter show good level.

  • Page 3: Table Of Contents

    USB Port ......................................17 Headphone Volume Adjustment ................................17 Dante Ports (optional) ..................................17 Ethernet Port .......................................17 Power Inlet ......................................17 Navigating the Menus ..................................17 M2T LCD Menu Map .....................................18 Menu Item Descriptions ..................................19 RF Enable/Level ....................................19 RF Tuning ......................................19 Sync Scan ......................................19 Sync Settings ......................................19 Sync FlexList™...

  • Page 4: Duet System Overview

    RF environments. • Reduced Cost & Complexity- No special skills required to set up audio networking The M2T Digital Half-Rack Transmitter can accept up to four analog or digital Dante™ (optional) network • Sample accurate playback synchronization audio inputs to deliver two stereo or four mono audio •...

  • Page 5: Flexlist

    Digital IEM System FlexList™ Additionally, the M2R includes a FlexList™ mode, where up to 16 mixes can be accessed by name. This feature enables a monitor engineer to quickly find and listen to any of the performer’s mixes on the stage. A FlexList mix is a profile of a performer’s personal transmitter.

  • Page 6: M2R Receiver Operation

    Duet M2R Receiver Operation RF Link LED Headphone IR (infrared) output port On/Off and volume knob Battery status Belt clip mounting sockets port Battery compartment door LECTROSONICS, INC.

  • Page 7: Battery Status Led

    Digital IEM System Battery Status LED Keypad and LCD Interface When the battery status LED on the keypad glows green the batteries are good. The color changes to red at a midpoint during the runtime. When the LED begins to blink red, only a few minutes remain. The exact point at which the LED turns red will vary with battery brand and condition, temperature and power consumption.

  • Page 8: Installing Batteries

    Polarity markings select Alkaline or Lithium. Audio level This bar graph indicates the level of the audio entering the transmitter. The “0” refers to the level reference, as chosen in the transmitter, i.e. either +4 dBu or -10 dBV. LECTROSONICS, INC.
  • Page 9 Digital IEM System Navigating the Menus From the Main Window, press MENU/SEL to enter the menu, then navigate with the UP and DOWN arrows to highlight the desired setup item. Press MENU/SEL to enter the setup screen for that item. Refer to the menu map on the following page.

  • Page 10: M2R Lcd Menu Map

    Use arrow keys to lock or Unlocked Lock/Unlock Locked unlock front panel settings BACK About M2R No selections available; About M2R for information BACK purposes only Restore factory Default Use arrow keys to accept or reject settings? BACK restoration of factory default settings LECTROSONICS, INC.

  • Page 11: Menu Item Descriptions

    To capture this scan info in the transmitter and thus make it available to wireless designer, use the SYNC SCAN menu funtion in the M2T Transmitter. Use the UP and DOWN arrows to roughly tune the receiver by moving the cursor to an open spot. Press MENU/SELECT to zoom in for fine tuning.
  • Page 12 1, channel 2 or both, or custom, allowing for varied width of the signal and how much level from each channel. The available modes are: • Stereo • SwapLR • Custom • Mono 1&2 • Mono Ch 2 LECTROSONICS, INC.
  • Page 13 Digital IEM System Limiter Clear Scan Data Limiter function allows the user to set volume and Erases scan results from dynamic range for headphone use. memory. Gain - The default setting (0) is linear, but if additonal volume is needed, use the UP and DOWN arrows to adjust the audio by up to +18 dB in 3dB steps.
  • Page 14 Menu Item Setting Flexlist Cleared Vol/Bal Centered Mixer Mode Stereo Limiter Pregain 0 HF Boost Meter Mode Post-Mix Backlight Always On Battery Type Lithium Settings Unlock Receiver M2R IEM Receiver Name Frequency 512.000 LECTROSONICS, INC.

  • Page 15: M2R Accessories

    Digital IEM System M2R Accessories 26895 Wire belt clip. 21926 USB cable for firmware updates Rio Rancho, NM...

  • Page 16: M2T Transmitter Operation

    Duet M2T Transmitter Operation M2T Front Panel Menu/Select Reset Button Menu navigation Return to Power switch buttons previous screen Headphone Volume Headphone Jack USB Port IR Port Adjustment Channel Function Buttons M2T Back Panel Antenna Antenna Jack Dante Ports Jack...

  • Page 17: Operating Instructions

    Duet, Lectrosonics, Settings, including frequency, name, limiter, mix mode, RF On/Off.: etc. can be transferred to and from the M2T transmitter via this port to an IR enabled receiver to simplify setup. USB Port For firmware updates and connection to Wireless De- signer Software.

  • Page 18: M2T Lcd Menu Map

    Duet M2T LCD Menu Map Use arrow keys Press SEL to RF ENABLE/LEVEL RF ENABLE/LEVEL to enable or select desired BACK adjust adjustment step Use arrow keys Press SEL to RF TUNING RF TUNING to select desired select desired BACK...

  • Page 19: Menu Item Descriptions

    Digital IEM System Menu Item Descriptions Sync Settings Allows sending or retrieving setup data via IR port. RF Enable/Level Allows RF transmission to be turned on and off and set RF levels at 10, 25 or 50 mW. RF Tuning Allows manual selection of the operating frequency.

  • Page 20: Audio Input Type

    Edit Names Set independent channels to analog or digital (Dante). Edit names to match talent for easy location in the FlexList or easily identify multiple M2T transmitters in a rack. • Use UP and DOWN Arrows to select letters and MENU/SEL to set and move cursor.

  • Page 21: Hardware Installation

    (2) A500RA20 Antenna Items Included in the Box: Unpacking the Unit Compare the packing list enclosed with the M2T with • Instruction manual the original order. Inspect all items for damage. Im- mediately call 1-800-821-1121 to report any items that •...
  • Page 22 Wrench as shown. into a rack. 1. Remove the Trim Cap (Part #P1330) from both sides of the front panel of the first M2T unit to be rack mounted. 5. Unless also installing a Front Mounted Antenna, insert the Hole Plug (Part #35959) into the open antenna hole in the Flange Bracket by aligning the 2.
  • Page 23 Repeat Steps 1 – 6 on the mating/opposing side of for installation into a rack. the second M2T unit. NOTE: If supplied rubber foot/feet are installed on under side of M2T, it will not fit in rack. Rio Rancho, NM...

  • Page 24: M2T Accessories

    BNC connectors at each end. (Included in Dante Model) RMPM2T-1 Rack kit for mounting one M2T into a single rack space ARG 25; ARG 50; ARG 100 Antenna cable of Belden 9913F low-loss coax cable with BNC connectors at each end. Number specifies length in feet.

  • Page 25: Specifications

    Digital IEM System Specifications M2R Receiver M2T Transmitter Operating Spectrum: 470.100 - 614.375 MHz RF Power Output: Modulation Type: 8PSK with Forward Error • Two carriers; two audio channels each CorrectionOccupied • Power adjustable on each carrier to Latency: 10, 25 or 50 mW Digital Source: 1.0 ms over Dante Network...

  • Page 26: Wireless Designer Software And Usb Driver

    Launch the installer and follow the screen prompts. When the installation is complete, the confirmation screen will appear. Click on Finish to complete the installation. I Agree on the EULA (end user license agreement) must be checked to continue the installation. LECTROSONICS, INC.

  • Page 27: Wireless Designer Software And Usb Driver

    Digital IEM System Wireless Designer Software Installer Installation Software supplied on USB drive. Can also be Software and USB Driver downloaded from the web site. Software for Mac OS X Operating Systems ® Installation Using only the Firefox web browser, open Wireless Designer.
  • Page 28 L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscep tible d’en compromettre le fonctionnement. LECTROSONICS, INC.

  • Page 29: Service And Repair

    There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod- est flat rate plus parts and shipping.
  • Page 30 Duet LECTROSONICS, INC.
  • Page 31 Digital IEM System Rio Rancho, NM...
  • Page 32 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
